Instructions for use Zeus Infinity Empowered SW 2.n 87
Assembly and preparation
Filling system for desflurane

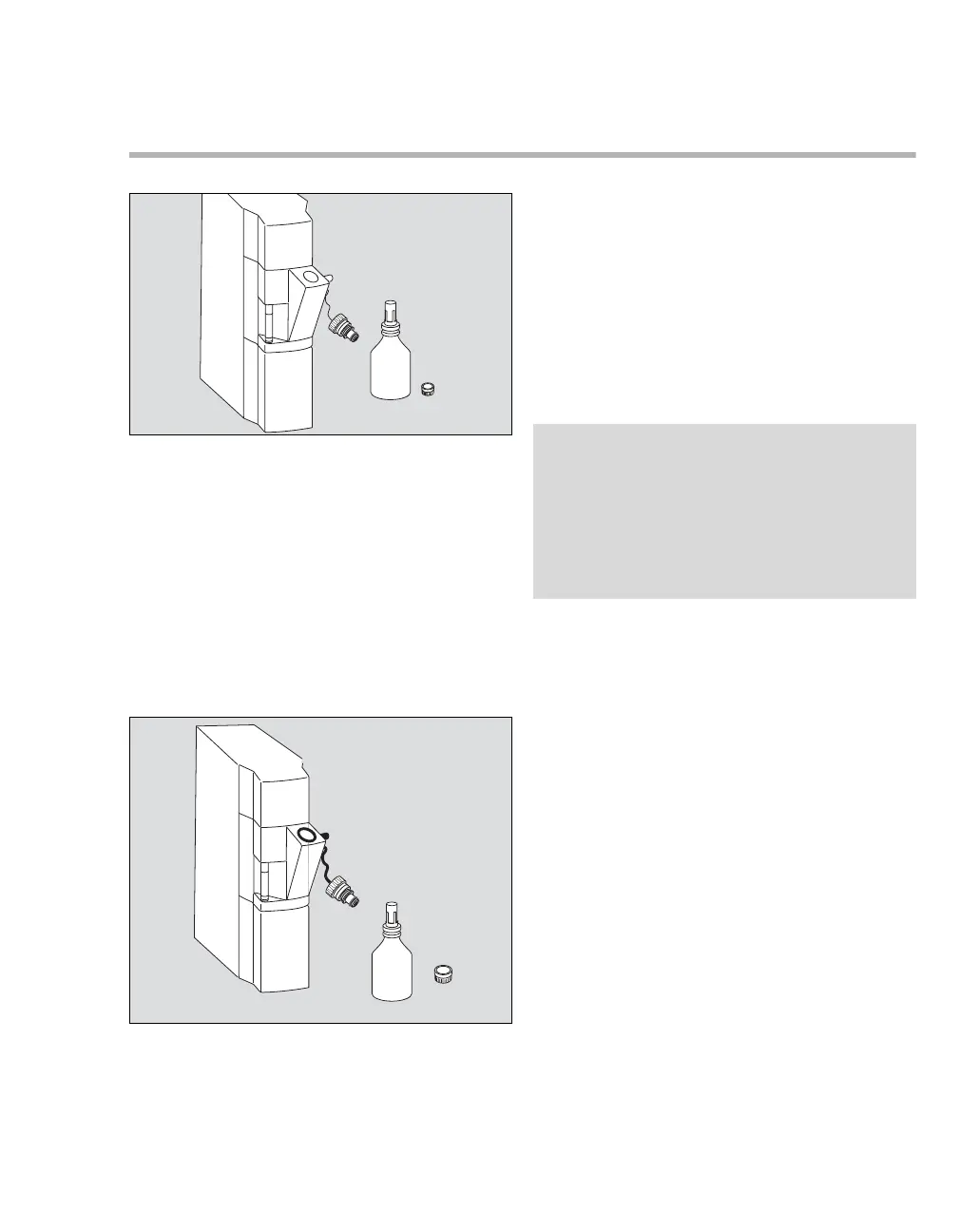

The filling system consists of the following compo-
nents:
A Anesthetic-specific filling device on the DIVA
metering module
B Unlock button on the DIVA metering module
C Anesthetic-specific adapter on the anesthetic
agent bottle
Filling during operation
1 Touch the unlock button (A).
2 Pull out the locking cover (B) of the DIVA meter-
ing module.
3 Open the desflurane anesthetic agent bottle
and insert the bottle neck (C) into the filling
opening until it engages.
4 Keep the anesthetic agent bottle pressed.
The anesthetic agent bottle is equipped with an
internal valve to prevent spilling.
5 Watch the filling level in the sight glass. The
DIVA metering module must be in a vertical po-
sition when checking.
Finishing the filling process
1 Reduce the pressure in the anesthetic agent
bottle.
2 Touch the unlock button.
3 Pull out the anesthetic agent bottle and close it.
4 Insert the locking cap of the DIVA metering
module into the filling device until it engages.
065054
A
B
C
A
B
C
NOTE
Increased occupational exposure
Fill the DIVA metering module to the maximum
mark only!
If filled beyond the maximum mark, excess desflu-
rane may splash out of the filling device when re-
moving the anesthetic agent bottle.
