Instructions for use Zeus Infinity Empowered SW 2.n 25
Overview

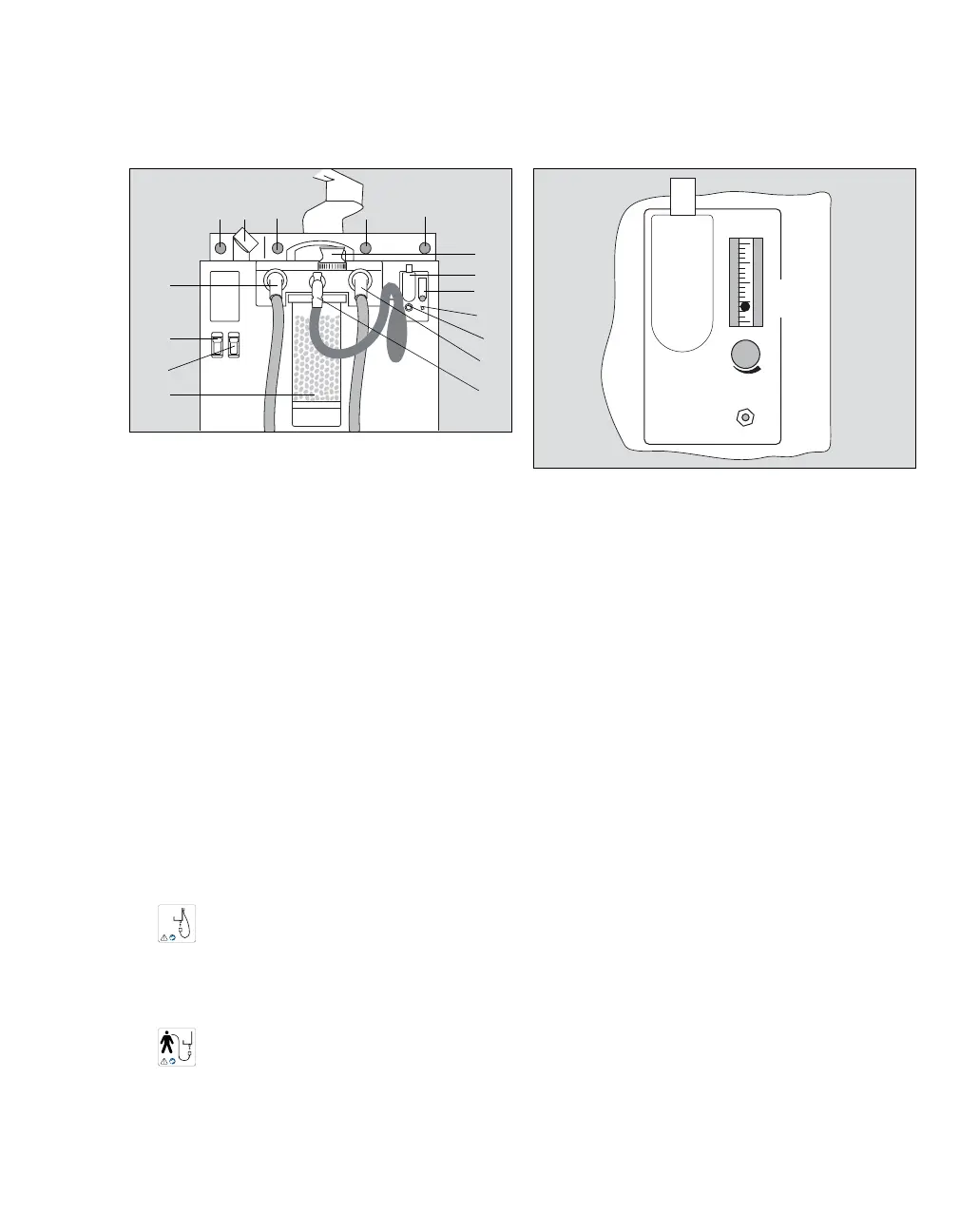

Breathing system view
A O2 flush button O2+
B Mechanical pressure gauge for airway pressure
C Safety rotary knob Anesth. Ventilator Off
D Safety rotary knob for O
2 emergency delivery
O2
E APL valve
F Self-test adapter
G O
2 flow meter for regional anesthesia
H Output from O
2 flow meter
I External fresh-gas outlet (ext. FG outlet), op-
tional
J Expiratory port
K Breathing bag nozzle
L CO
2 absorber
M Protect water trap
N CO
2 water trap with connection point for sample
line
O Inspiratory port
Connection for oxygen therapy
The additional oxygen flow meter (A) delivers a set
flow of pure oxygen, e.g., for oxygen metering
through a nasal cannula. The supplemental oxygen
can be used in each ventilation mode:
– Standby
–ZeusIE off,
as long as the central O2 supply is connected.
211
Connection of internal sample line to
the Protect water trap
Connection of sample line to the CO2
water trap
AB
C
D
F
G
H
L
M
N
E
O
I
K
J
A
212
O
2
A
