Dräger Zeus Infinity Empowered - DIVA Metering Modules

Overview
32
Instructions for use Zeus Infinity Empowered SW 2.n
DIVA metering modules

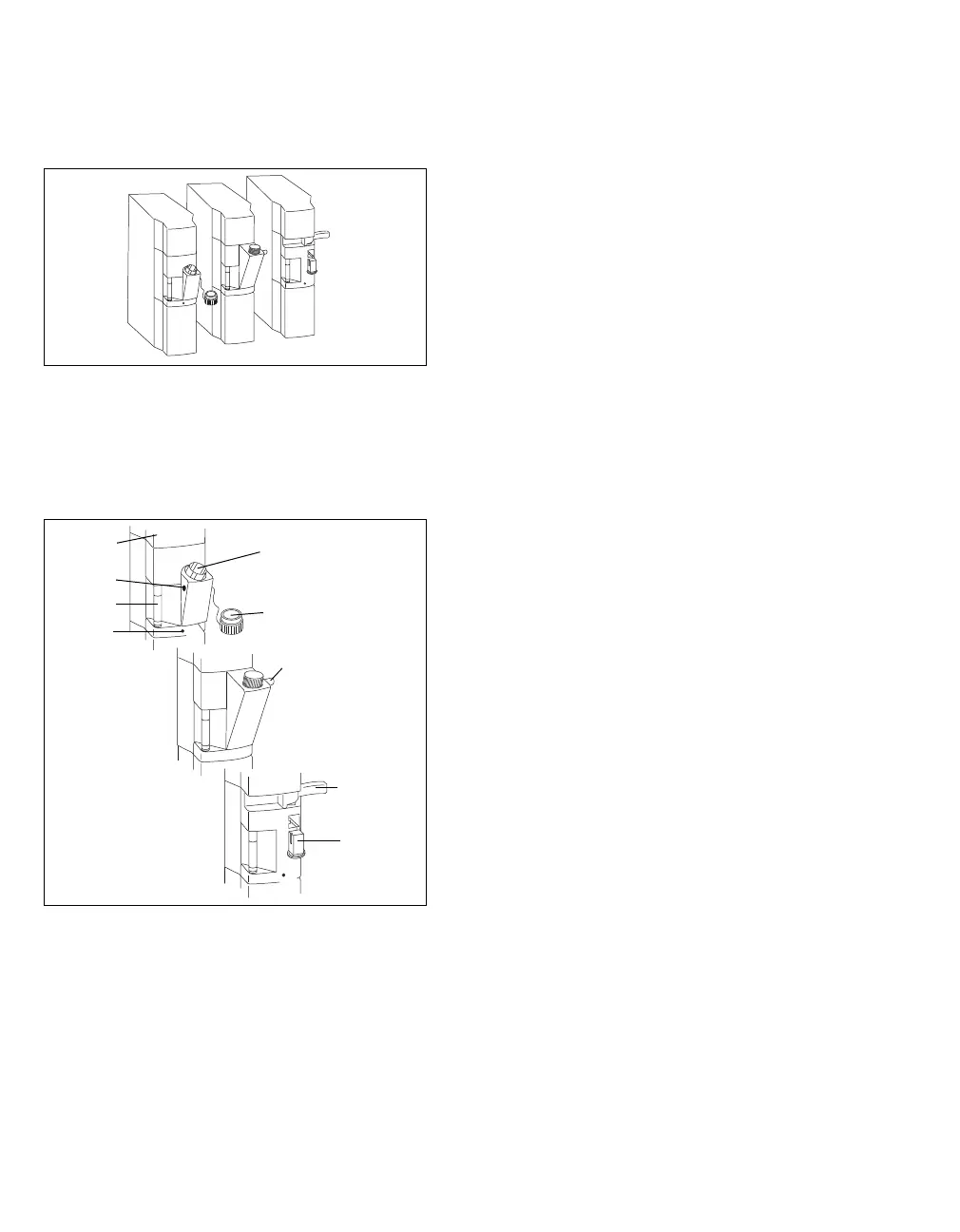

A DIVA metering module with Quik Fil filling de-
vice or Dräger Fill
B DIVA metering module with desflurane filling
system (Saf-T-Fill)
C DIVA metering module with safety filling device
D Filling port
E Locking cap
F Release for desflurane lock
G Lever to release the locking bolt
H Locking bolt for safety filling device
I Drain plug (recessed, 2.5 mm hexagon socket)
J Filling level, inspection glass window
K Overflow hole
L Name of anesthetic agent
