Assembly and preparation
86
Instructions for use Zeus Infinity Empowered SW 2.n

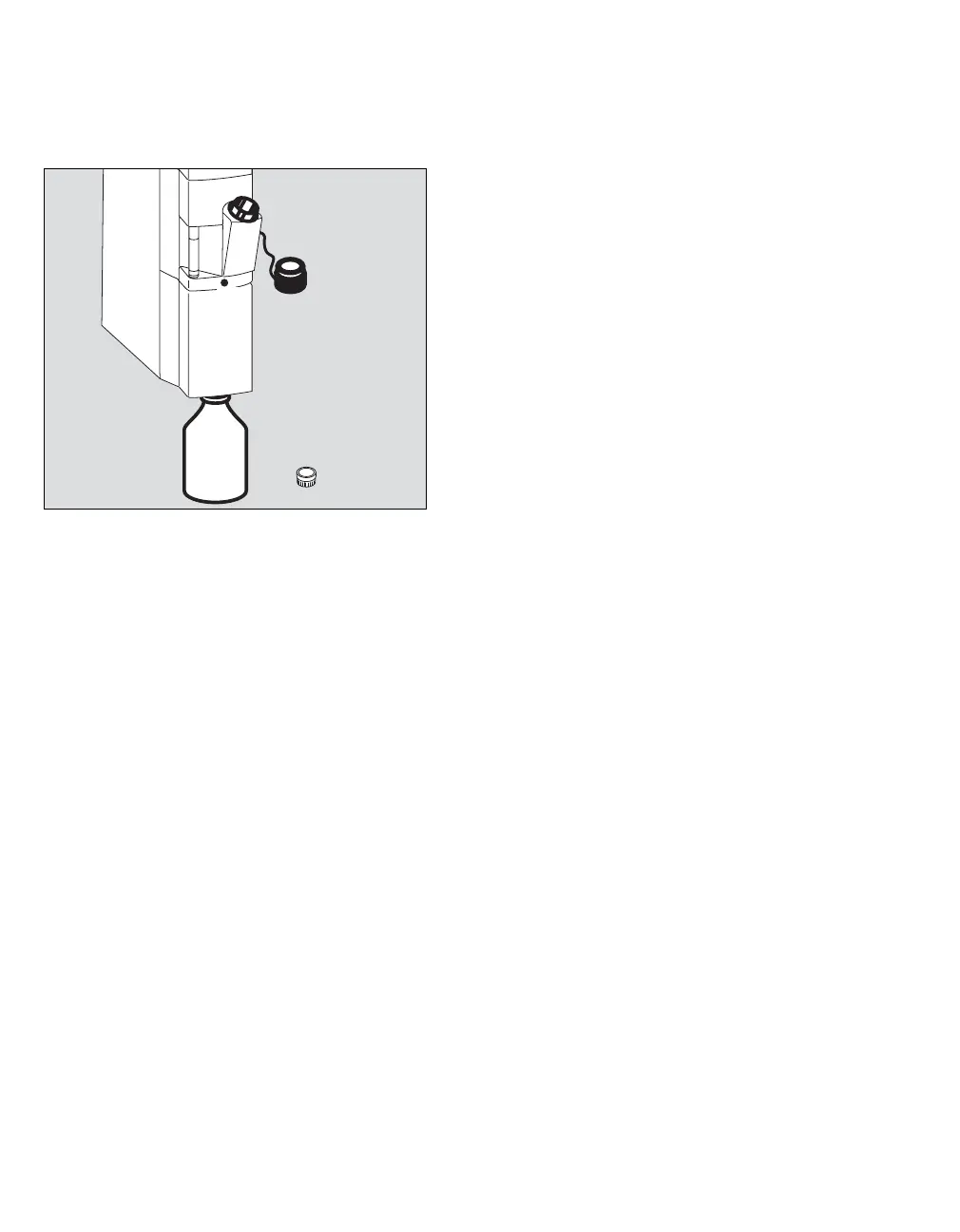

Emptying the DIVA metering module
1 Screw empty anesthetic agent bottle (A) into the
drain opening on the bottom of the DIVA meter-
ing module.
2 Unscrew the locking cap (B) of the filling device.
3 Use a screwdriver for hexagon sockets to open
the drain plug (C).
4 Close the drain valve again after emptying.
5 Remove the anesthetic agent bottle and close it
with the cap.
6 Close the DIVA metering module with the lock-
ing cap (B).
263
B
C
A
