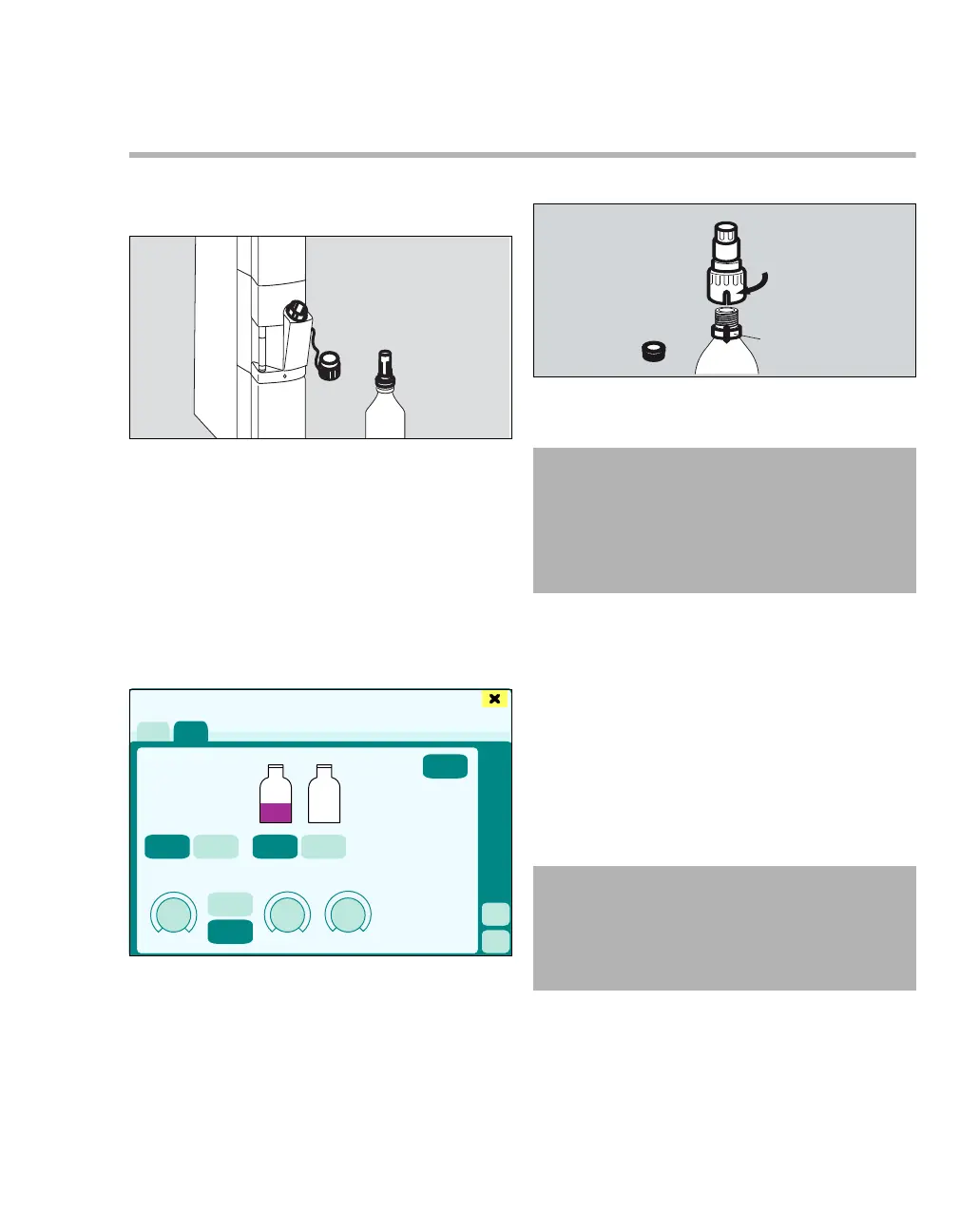

Instructions for use Zeus Infinity Empowered SW 2.n 77
Assembly and preparation
DIVA metering module with Dräger Fill filling system
for isoflurane and sevoflurane
The Dräger Fill filling system consists of the follow-
ing components:
A anesthetic-specific filling device on the DIVA
metering module
B anesthetic-specific Dräger Fill filling adapter on
the anesthetic agent bottle
When filling during operation
z Press the Ventilate reservoir (A) button.
The DIVA metering module is ventilated for ap-
prox. 30 sec. No anesthetic agent vapor es-
capes into the environment during filling.
1 Only use anesthetic agent bottle with anes-
thetic-specific collars (B) on the bottle neck.
2 Select the Dräger Fill filling adapter for the cor-
responding anesthetic agent. The color coding
and names/symbols on the filling adapter corre-
spond to the anesthetic agent used.
3 Screw the cap (C) off the anesthetic agent bot-
tle.
z Use undamaged filling adapters and anesthetic
agent bottles only.
4 Screw the Dräger Fill filling adapter (D) firmly
onto the anesthetic agent bottle.
053332
A
B
MixGas settings
A
067
WARNING
Risk of patient injury
Agent-specific filling cannot be guaranteed if
anesthetic agent bottles without a collar are
used. Anesthetic agents may be mixed or
used by mistake.
CAUTION
Increased occupational exposure
With a leaky connection between the bottle
adapter and bottle, anesthetic agent vapor can
escape.
B
D
C
