Instructions for use Zeus Infinity Empowered SW 2.n 253
Fault – Cause – Remedy

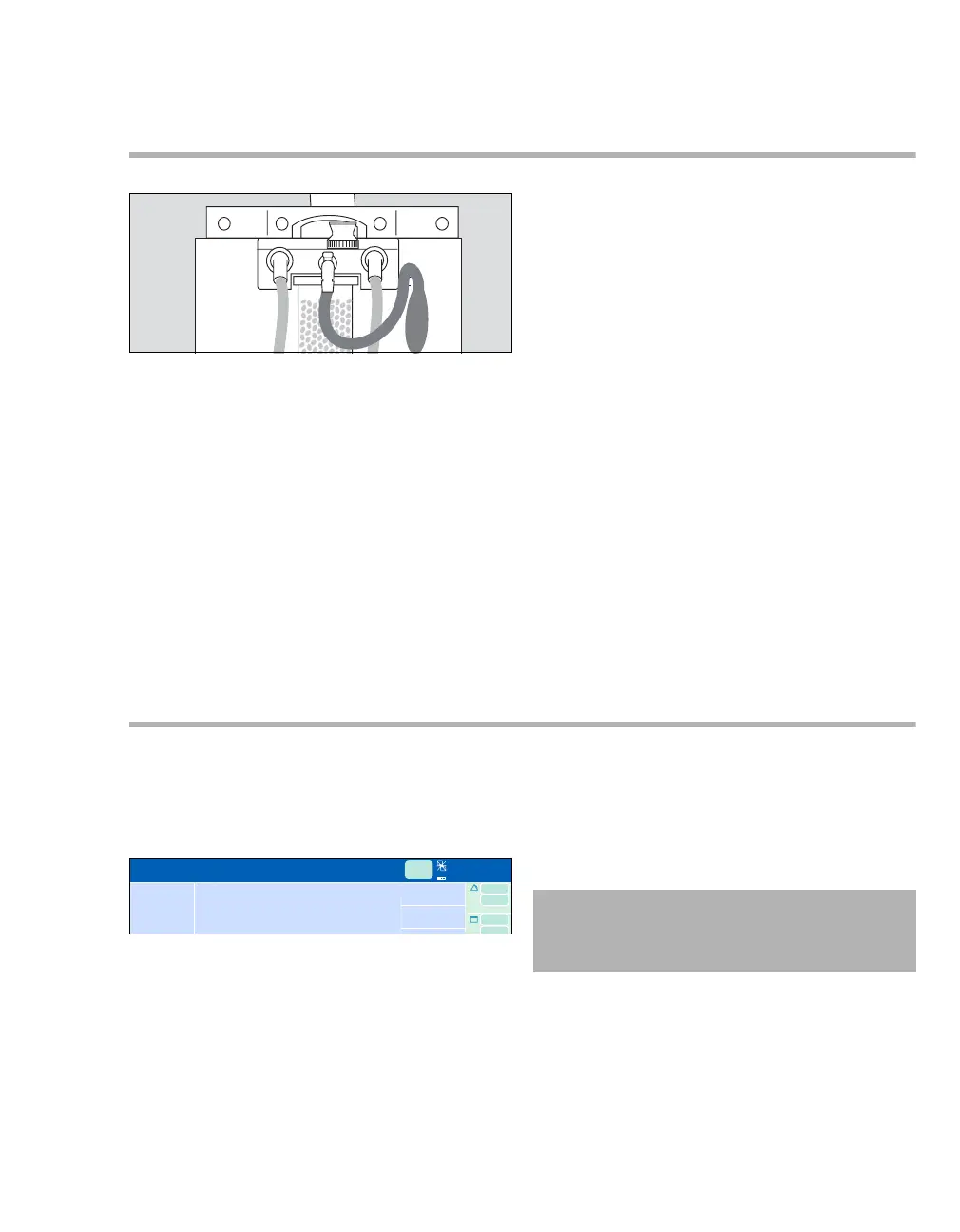

Rotary safety knob Anesth. Ventilator Off for ventilation
If ventilation and delivery have to be immediately
canceled due to internal device errors:
1 Press the rotary safety knob Anesth. Ventila-
tor Off to move it out.
2 Turn the rotary safety knob Anesth. Ventilator
Off (A) fully counterclockwise.
– Ventilation stops.
– Anesthetic agent delivery is locked.
– Fresh-gas delivery is stopped. However,
0.5 L/min O
2 will continue to be delivered.
– Patient monitoring remains activated.
Zeus IE indicates the failure with:
Anesth. Ventilator Off
If necessary:
z Ventilate the patient by hand with the emer-
gency oxygen supply and the breathing bag!
1 Press the rotary safety knob O
2 (B) to move it
out.
2 Turn the rotary safety knob O
2 (B) and adjust
the O
2 flow.
The breathing bag fills; the filling process can
be heard.
Anesthetic agent is not delivered!
After switching off the device, return the rotary
safety knobs Anesth. Ventilator Off (A) and O
2 (B)
to the original position and push in.
In the event of partial system failures
Zeus IE indicates component failure:
– DIVA+mixer failure
– Patient monitoring fail
Touch the Software reset? button (A) in the header
bar if necessary.
The device performs a warm start.
Reboot: Takes approx. 30 seconds to 3 minutes.
Monitoring is unavailable during this time.
– Ventilation continues (fresh-gas mode at
0.5 L/min; with external fresh-gas outlet option:
3L/min).
– Check ventilation with manual pressure gauge.
Perform manual ventilation if necessary.
097
A
B
326
A
CAUTION
Risk of patient injury
Anesthetic gas is not delivered.
