Operation
142
Instructions for use Zeus Infinity Empowered SW 2.n
Each Module DPS syringe pump is uniquely identi-
fied in the header bar by:
C The number of Module DPS (1 to 4) identifies its
position on IVDock: The lowest Module DPS on
IVenus is pump number 1.
Short name of the drug (this is also shown on
the pump display).
D Depending on the state of the Module DPS sy-
ringe pump connected, information, buttons or
therapy controls are displayed.
In the example: Button with display of infusion
rate currently set, user-defined unit of measure-
ment, button for starting the bolus.
Infusion dialog window
Opening the Infusion settings dialog window:
z Touch the header bar in the IV control field.
The horizontal tabs stand for Module DPS syringe
pumps 1 to 4. The pages are identical.
The vertical tabs open the settings for General and
Advanced.
Page General
A Drug Select: Selecting a drug from the drug li-
brary
For a selected drug, Name, Abbreviation,
Concentration, Infusion rate limit and Bolus
rate limit are displayed. Selecting a drug,
see page 148.
B Pump On/Off: Switching the Module DPS sy-
ringe pump on or off
C On/Off: Starting or stopping a Bolus.
D Bolus rate: Therapy control for bolus rate in
user-defined unit of measurement and display
of the set infusion rate in mL/h
E Bolus: Therapy control for bolus volume in
user-defined unit of measurement and display
of the set bolus volume in mL. This is displayed
in red for application of an initial bolus.
F Time: Display of the bolus application time in
seconds.
G On/Off: Starting or stopping an infusion.
H Infusion: Therapy control for infusion in user-
defined unit of measurement and display of the
set infusion rate in mL/h
I Status: Display of a running or waiting function
(e.g., Bolus running).
WARNING
Risk of patient injury
Before starting infusion, the short drug name
and the dose in mL or mL/h on the pump dis-
play must be compared with those on the
Zeus IE screen in order to prevent administra-
tion of an incorrect drug.
347

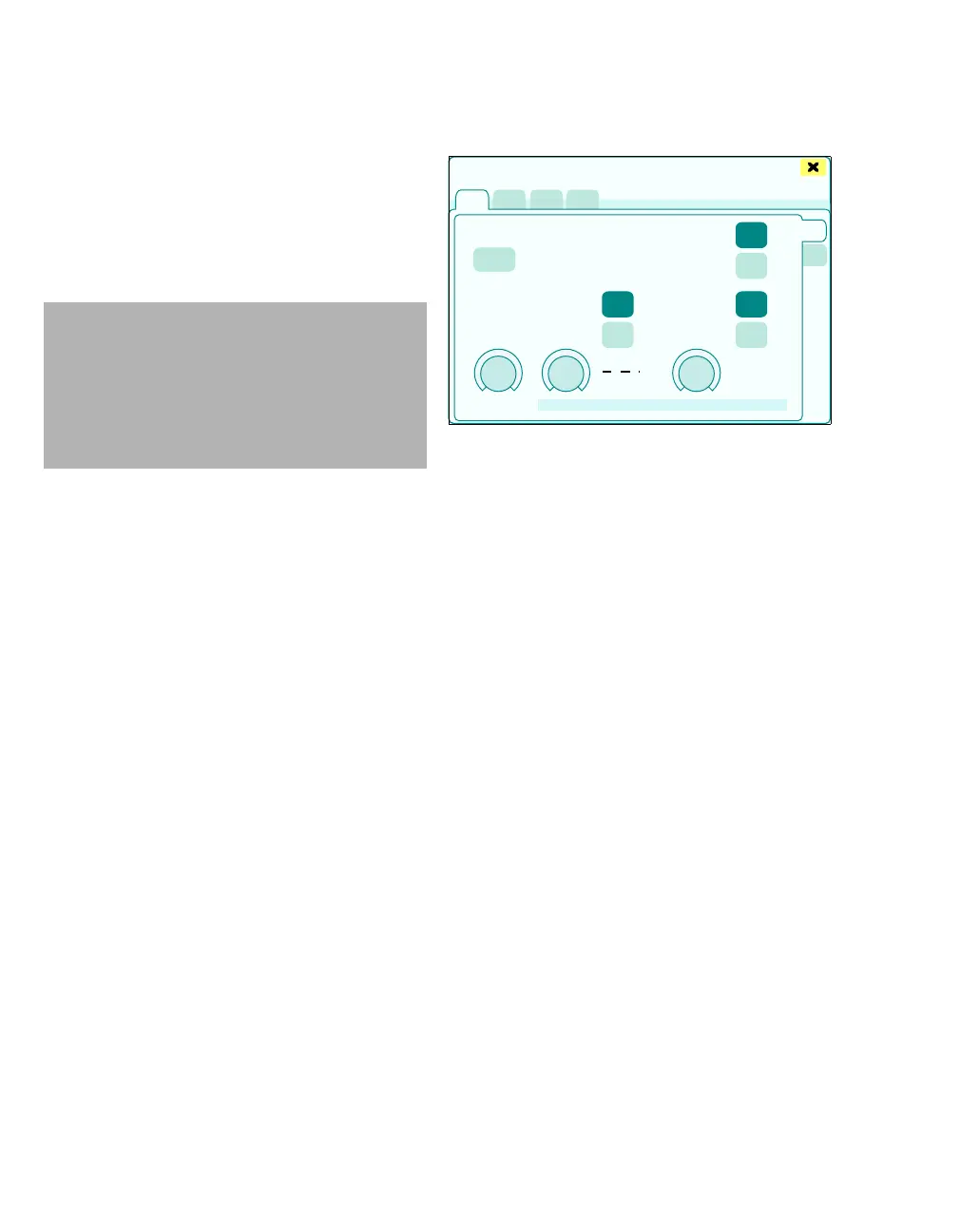

Infusion settings
