Dräger Zeus Infinity Empowered - Connection Field for Patient Monitoring and IV-System (Optional)

Overview
26
Instructions for use Zeus Infinity Empowered SW 2.n
Connection field for patient monitoring
and IV-system (optional)

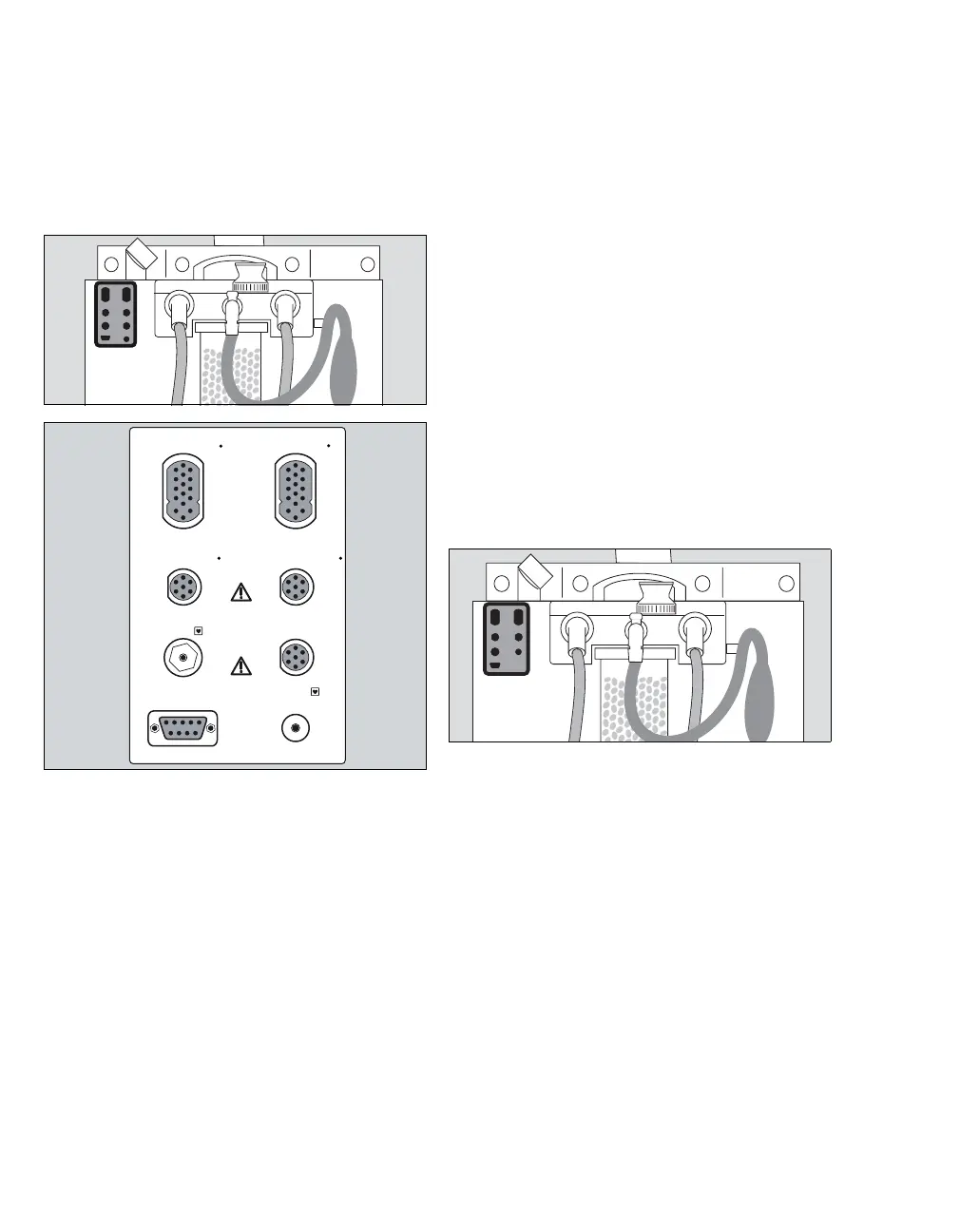

SpO2 measurement with SmartPod SpO2
Without optional patient monitoring, only the con-
nection to the optional IV system is installed.
SpO
2 measurement without SpO2 SmartPod
(optional)
147009
MULTIMED Connection for accessories to
measure electrocardiography
(ECG HR/PLS) and body tempera-
ture (Temp)
HEMOMED 1 Connection for accessories to
measure invasive blood pressures
(IBP) and cardiac output (C.O.)
Aux/Hemo 2/3 Connection for accessories to
measure more invasive blood pres-
sures (More IBP) and cardiac out-
put (C.O./ Calculat.)
Connection for anesthesia effect
monitoring accessories (Trident
pod, BISx pod)
NIBP
Aux / Hemo 2 Aux / Hemo 3
SpO2
HEMOMED 1
MULTIMED
IV-System
Sync.
NIBP Connection for accessories to
measure non-invasive blood pres-
sure (NIBP)
SpO
2 Connection for accessories to
measure oxygen saturation (SpO
2)
according to the technology
marked (Masimo SET or Nellcor
OxiMax)
Sync. Connection for synchronization of
a defibrillator
IV system Connection for Dräger IV system
(IVenus)
