Assembly and preparation
64
Instructions for use Zeus Infinity Empowered SW 2.n
It is recommended to leave the gas cylinders as a
backup on the device even if there is a connection
to the central gas supply.
The backup Air cylinder, which is not illustrated, is
connected to the gas inlet for the Air cylinder.

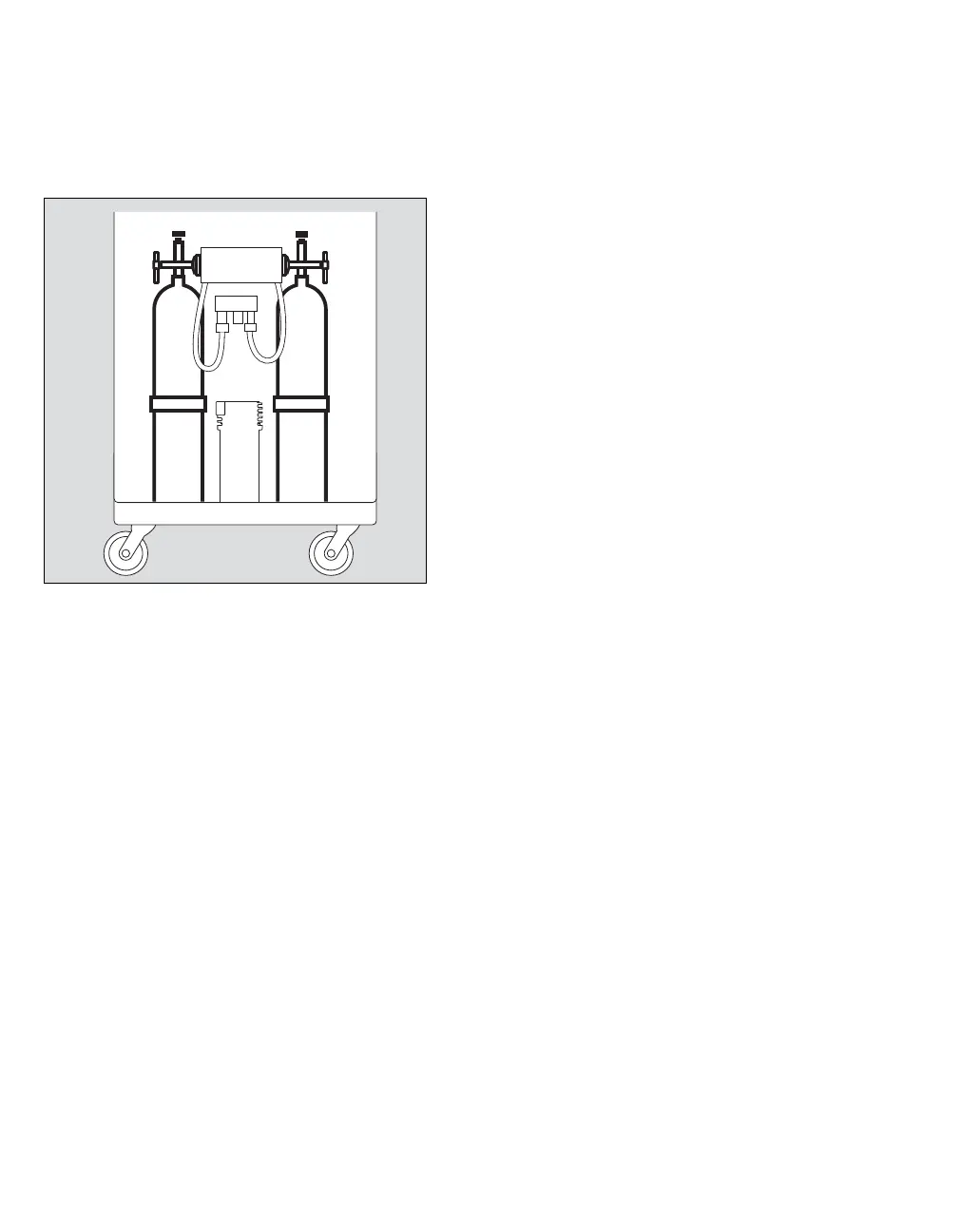

At the back of the device:
1 Place full gas cylinders into the cylinder holders.
2 Secure the gas cylinders with straps (A).
3 Screw on the gas cylinders in the mount (B).
4 Connect the pressure sensor cable.
5 Open the cylinder valves (C).
The LEDs for the status of the cylinder pressures
should light up green. When the LEDs are switched
off, check that the sensor plug and the pressure re-
ducer are positioned correctly and the cylinder
pressure is sufficient.
6 Close the cylinder valves again.
179
C
A
B
