Instructions for use Zeus Infinity Empowered SW 2.n 81
Assembly and preparation

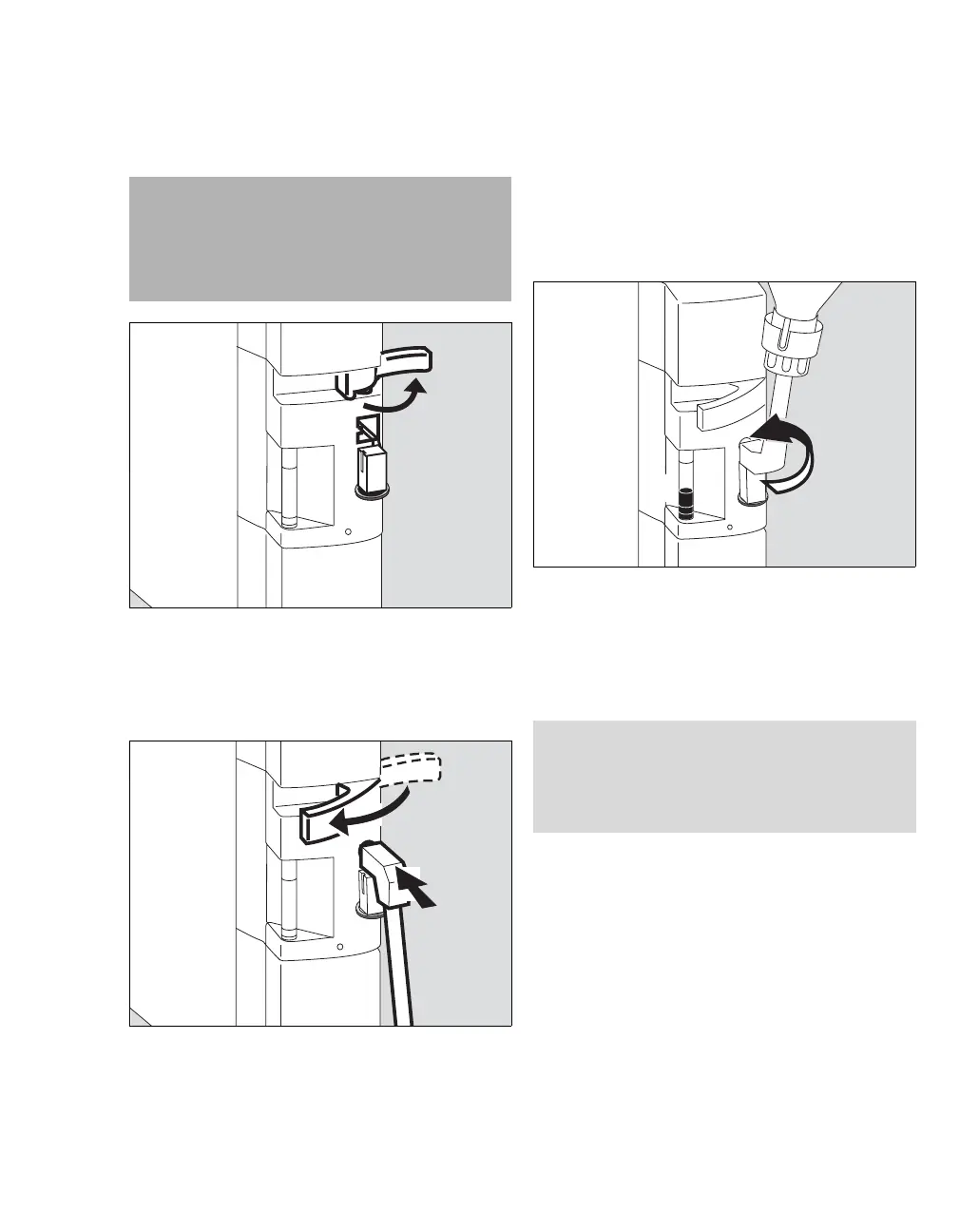

4 Turn the square end (E) of the filling adapter so
that the holes point downwards.
5 Pull out the locking bolt (F) and fold it down.
6 Hold the anesthetic agent bottle downwards.
The holes of the filling adapter point down-
wards.
7 Insert the filling adapter (G) into the opening of
the filling device up to the stop.
8 Tighten the lever (H) – do not use excessive
force.
The lever is not flush with the front side of the
DIVA metering module when filling.
Increased effort can cause damage to the seal and
lead to release of fresh gas and anesthetic agent.
9 Swivel the anesthetic agent bottle (I) slowly to
an overhead position and keep it in this position.
10 Watch the filling level (J) in the sight glass.
The supply will be interrupted automatically
when the maximum mark is reached.
CAUTION
Increased occupational exposure
With a leaky connection between the bottle
adapter and anesthetic agent bottle, anesthetic
agent vapor can escape.
055056
F
G
H
057
NOTE
The seals on the DIVA metering module and the
filling adapter are wearing parts: check them and
have them exchanged by trained personnel if nec-
essary.
I
J
