3.17.7 Machine Information Pages
1014644
A
B
C
D
E

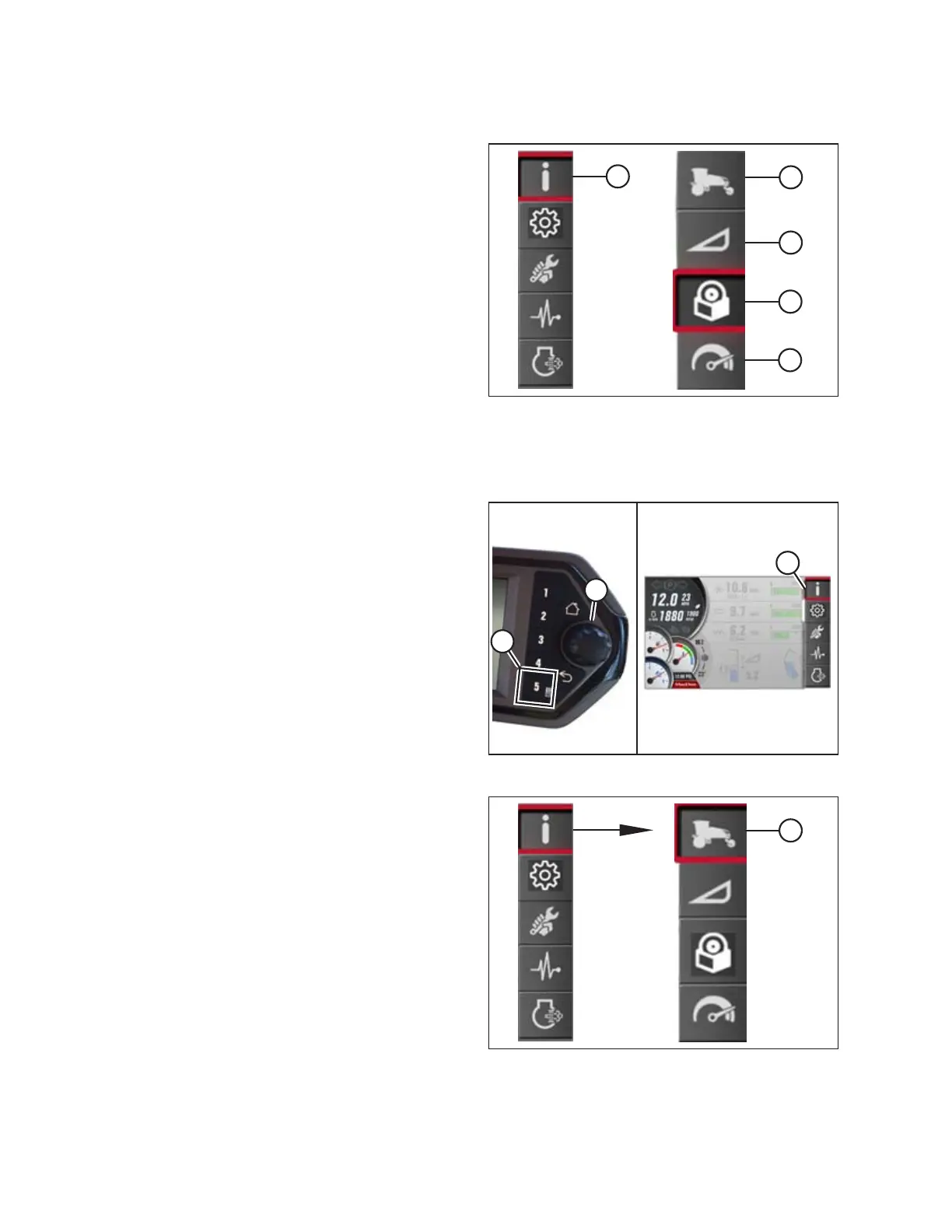

Figure 3.118: Information Icon and Information
Submenu Icons
Selecting the INFORMATION icon (A) from the main menu
provides access to the following submenu icons:
• Windrower information (B) – Refer to Accessing Windrower
Information, page 100 .
• Header information (C) – Refer to Accessing Header
Information, page 101 .
• Software information (D) – Refer to Accessing Software
Information, page 102 .
• Performance information (E) – Refer to Accessing
Performance Information, page 103.
Accessing Windrower Information
1014684
A
B
C
Figure 3.119: Opening the Main Menu
1. Press soft key 5 (A) to open the main menu.
2. To scroll to the INFORMATION icon (C), use the Harvest
Performance Tracker (HPT) scroll knob (B) or the ground
speed lever (GSL) scroll wheel (not shown).
3. Press the HPT scroll knob (B) or the GSL SELECT button (not
shown) to select the highlighted INFORMATION icon.
1014721
A
Figure 3.120: Windrower Information Submenu Icon
4. Scroll to the WINDROWER INFORMATION submenu
icon (A), and press SELECT to display the windrower
information menu.
