5.5.3 Air Intake System
The air intake system filters air used by the engine.
IMPORTANT:
• Do NOT run engine with air cleaner disconnected or disassembled.
• Over-servicing the filter element increases the risk of dirt being ingested by the engine and severely damaging the
engine.
• Filter servicing should only be performed when the Harvest Performance Tracker (HPT) indicates ENGINE AIR FILTER or
at the specified interval. Refer to 5.2.2 Maintenance Schedule/Record, page 253.

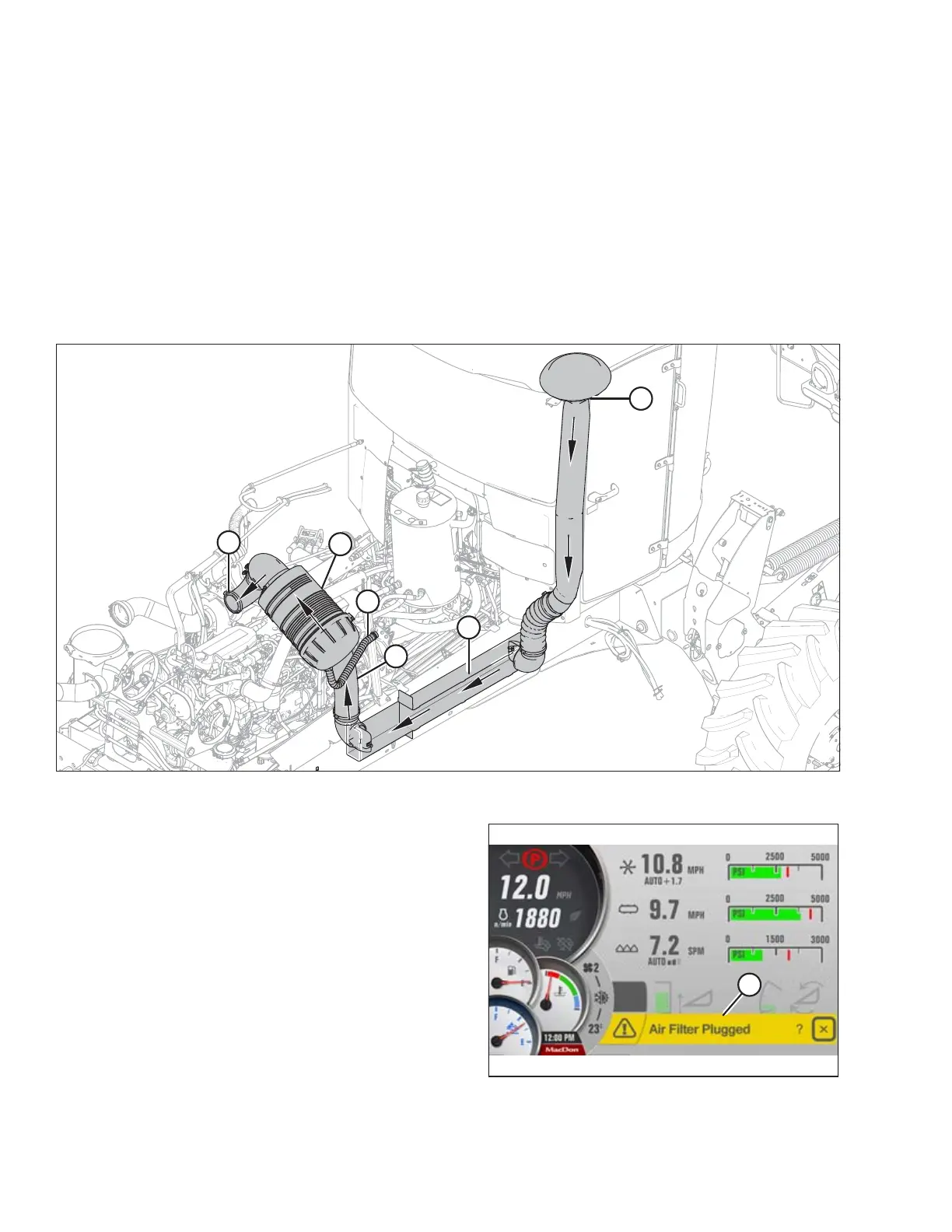

Figure 5.24: Air Intake System
1019637
A
B
C
D
E
F
A - Air Intake B - Air Duct to Air Cleaner C - Air Cleaner Intake
D - Air Cleaner E - Turbocharger Intake F - Aspirator Duct
1019750
A
Figure 5.25: Filter Service Required
A message (A) appears on the HPT when the engine air filter
requires servicing.
