3.8 Windshield Wipers

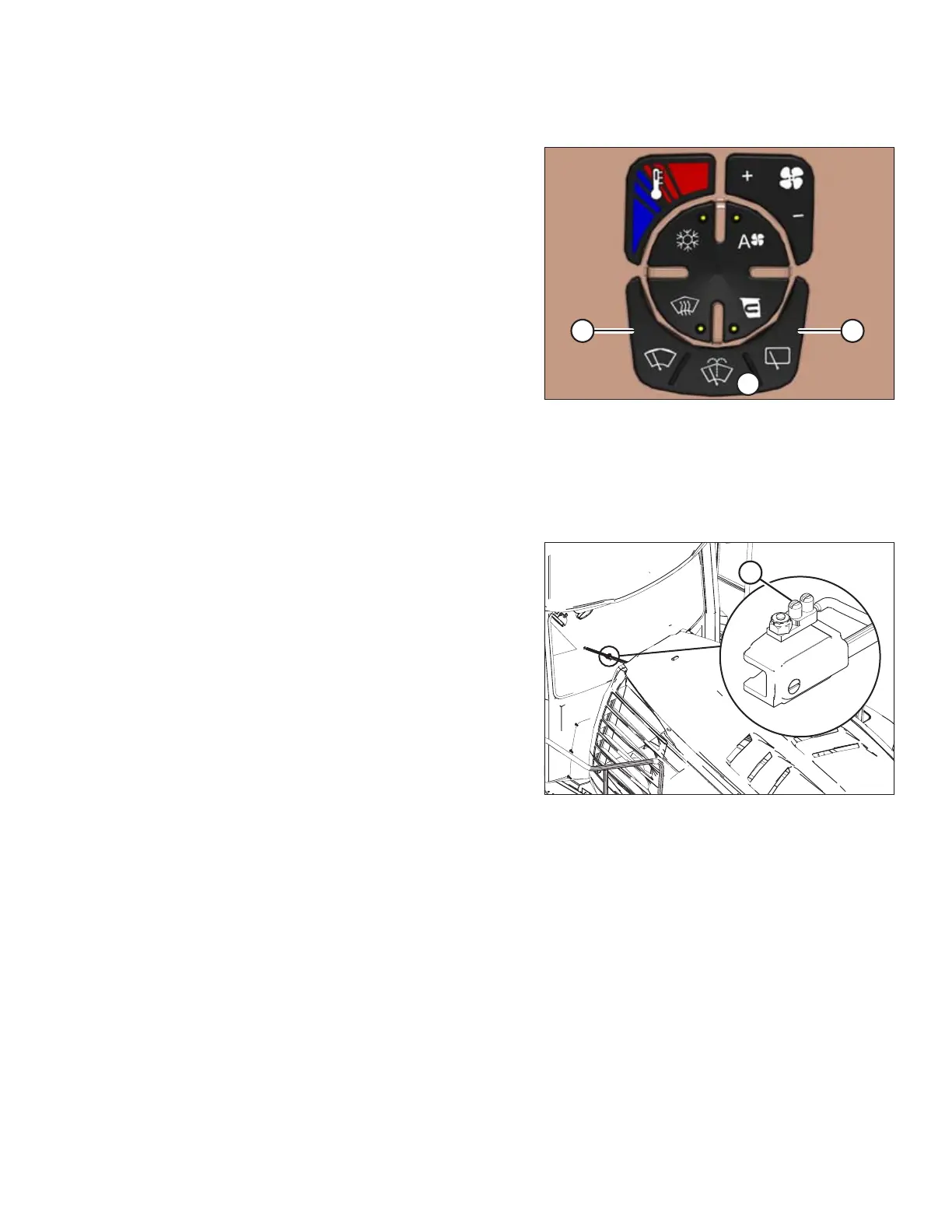

Figure 3.32: Wiper Controls
The windshield wiper controls are located on the operator
console. The illustration shows the controls in cab-
forward mode.
Button (A) activates the front (cab-forward) wiper, and
button (B) activates the rear wiper.
One window washer button (C) applies washer fluid to both the
front and rear wipers as follows:
• If both wipers are on, pressing and holding the window
washer button (C) will spray washer fluid onto both windows.
When the button is released, the washer fluid stops, but both
wipers continue to operate.
• If both wipers are NOT on, pressing and holding the window
washer button (C) will spray washer fluid onto both windows,
and both wipers will turn on. When the button is released,
the washer fluid stops, but both wipers continue to operate for 4 seconds before automatically stopping.
• If only one wiper is on, pressing and holding the window washer button (C) will activate the other wiper and spray
washer fluid onto both windows. When the button is released, the washer fluid stops, and the active wiper will
continue to operate while the activated wiper operates for only 4 seconds before automatically stopping.
Figure 3.33: Rear Wiper Washer Nozzle
You can aim the rear wiper washer nozzle (A) by turning it with
a flat head screwdriver.
NOTE:
The front wiper washer nozzle is nonadjustable.
