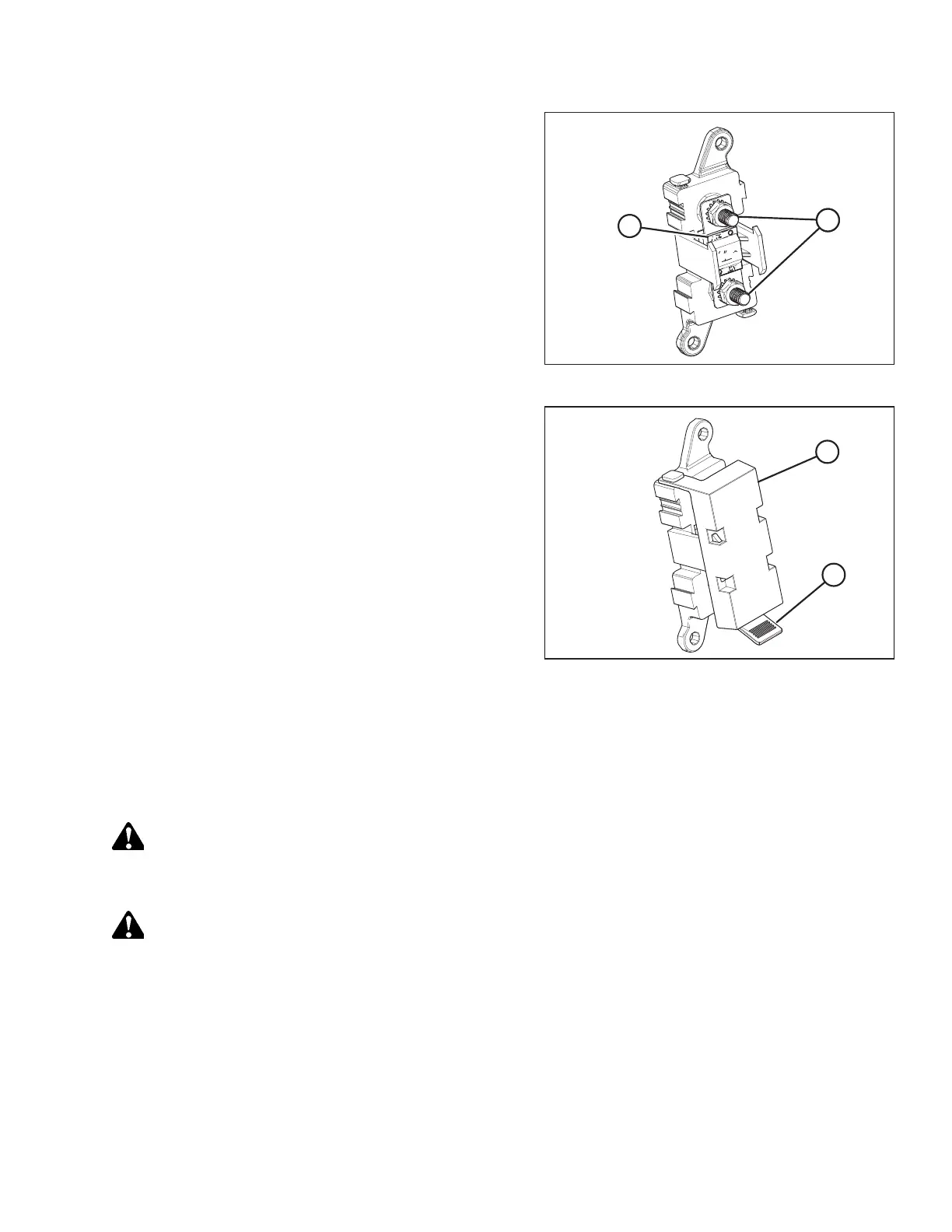

Figure 5.207: 125A Main Fuse
6. Examine fuse (A) for indications of melting.
7. To remove fuse (A), remove two nuts (B) and pull the fuse
free from holder (existing wiring may need to be pulled off
the stud first).
8. Install the new fuse on studs and install any existing wiring
that was removed.
9. Secure with nuts (B).
Figure 5.208: 125A Main Fuse
10. Close cover (B) and secure with tab (A).
11. Return platform to operating position. Refer to 5.4.2
Closing Platform, page 258.
5.15.8 Drive Wheels
Raising Drive Wheel
This procedure applies to both drive wheels.
WARNING
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove the key
from the ignition before leaving the operator’s seat for any reason.
CAUTION
Header MUST be removed and NO weight box installed. Use a hydraulic jack with minimum lifting capacity of 2268 kg
(5000 lb.) to provide adequate support for the machine.
1. Disconnect the header.
2. Park windrower on level ground. Block all wheels.
