3.17.2 Navigating the Harvest Performance Tracker (HPT) Display
Scroll Knob, Scroll Wheel, and Select Button
Turning the scroll knob (A) on the Harvest Performance Tracker (HPT) highlights the available options within a menu and
adjusts the settings. Pushing the scroll knob selects functions or menu items. Scroll and select functions are duplicated on
the ground speed lever (GSL) controls. Unless otherwise specified, both buttons will perform the same function. When
SELECT is used in this document, either of these buttons can be used.
1020013
A

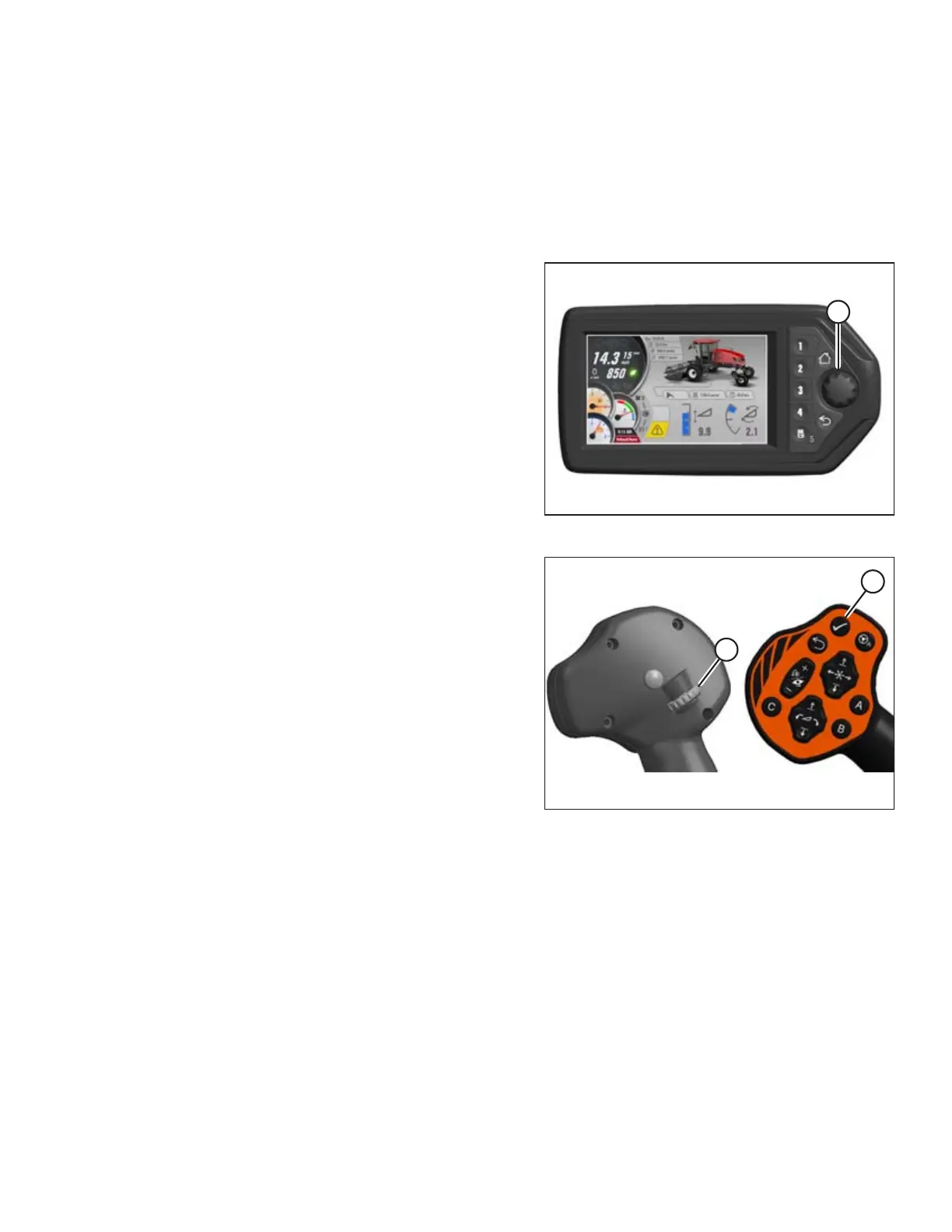

Figure 3.75: HPT Scroll Knob
• Turn scroll knob (A) clockwise to move selections down the
screen, to the right (clockwise), and to increase settings. Push
the scroll knob to activate the selection.
• Turn scroll knob (A) counterclockwise to move selections up
the screen, to the left (counterclockwise), and to decrease
settings. Push the scroll knob to activate the selection.
1014567
A
B
Figure 3.76: GSL Scroll Wheel and Select Button
NOTE:
The scroll wheel (A) on the back of the GSL and the SELECT
button (B) on the front of the GSL perform the same
functions as the HPT rotary scroll knob.
