MacDon M1170 - Cleaning Right Cooling Module

214733 308 Revision A
1015749
B
A

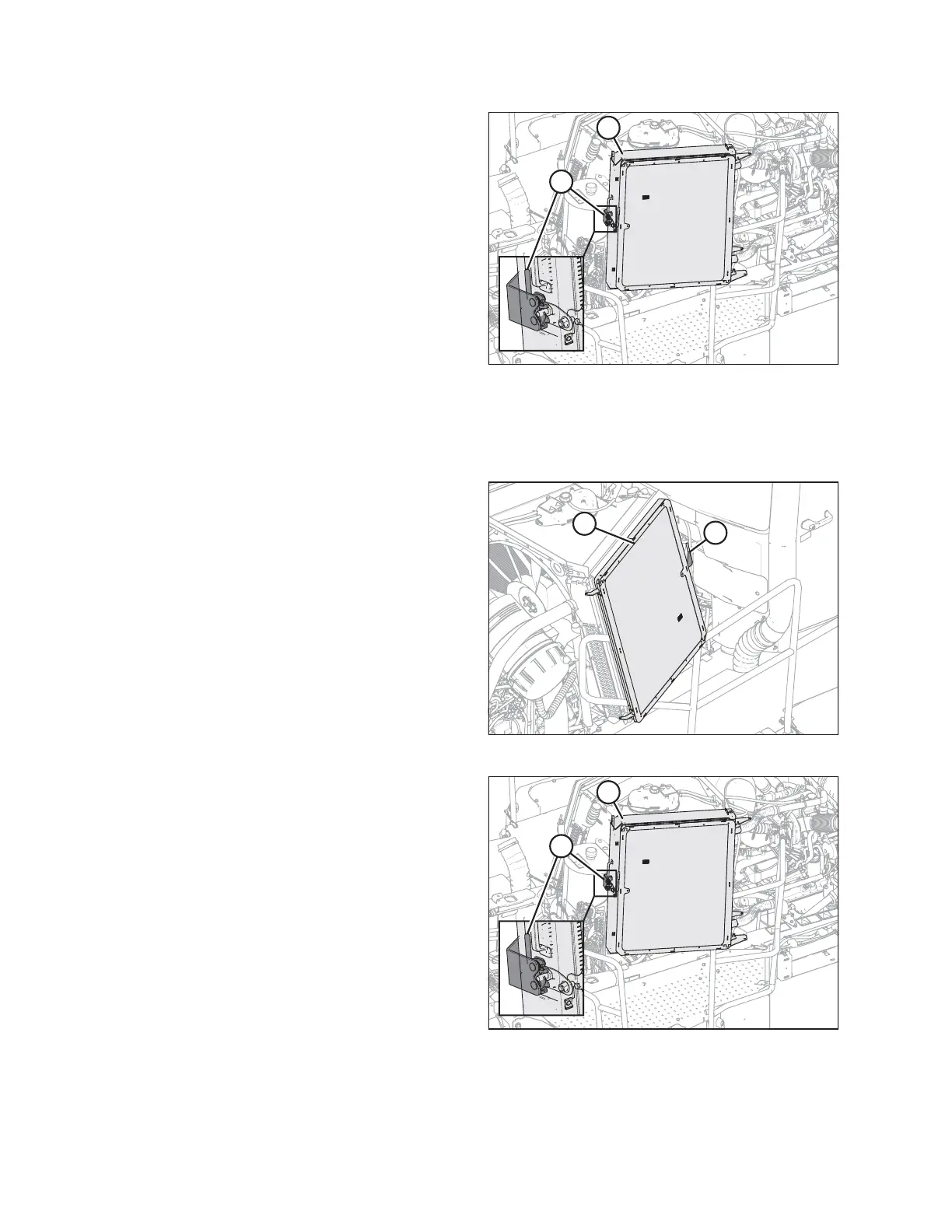

Figure 5.80: Left Cooler Module
8. Close radiator door (B) and push until latch (A) secures
door (B).
Cleaning Right Cooling Module
This procedure is for cleaning the coolers at the right cab-forward side of the windrower.
1013115
A
B
Figure 5.81: Right Cooler Module
1. At the right (cab-forward) side cooler module, pull latch
handle (A) and open the screen (B).
1015749
B
A
Figure 5.82: Engine Radiator Door
2. At the left (cab-forward) side cooler module, push latch (A)
and open engine radiator door (B) to allow access inside
cooler module.
MAINTENANCE AND SERVICING
