5.4 Platform
Swing-away platform and stair units are provided on the windrower for access to the operator’s station and engine bay
maintenance.
5.4.1 Opening Platform
Only the left cab-forward side platform can be opened.
CAUTION
Do NOT stand on an unlocked platform. It is unstable and may cause you to fall.
1015479
A
B

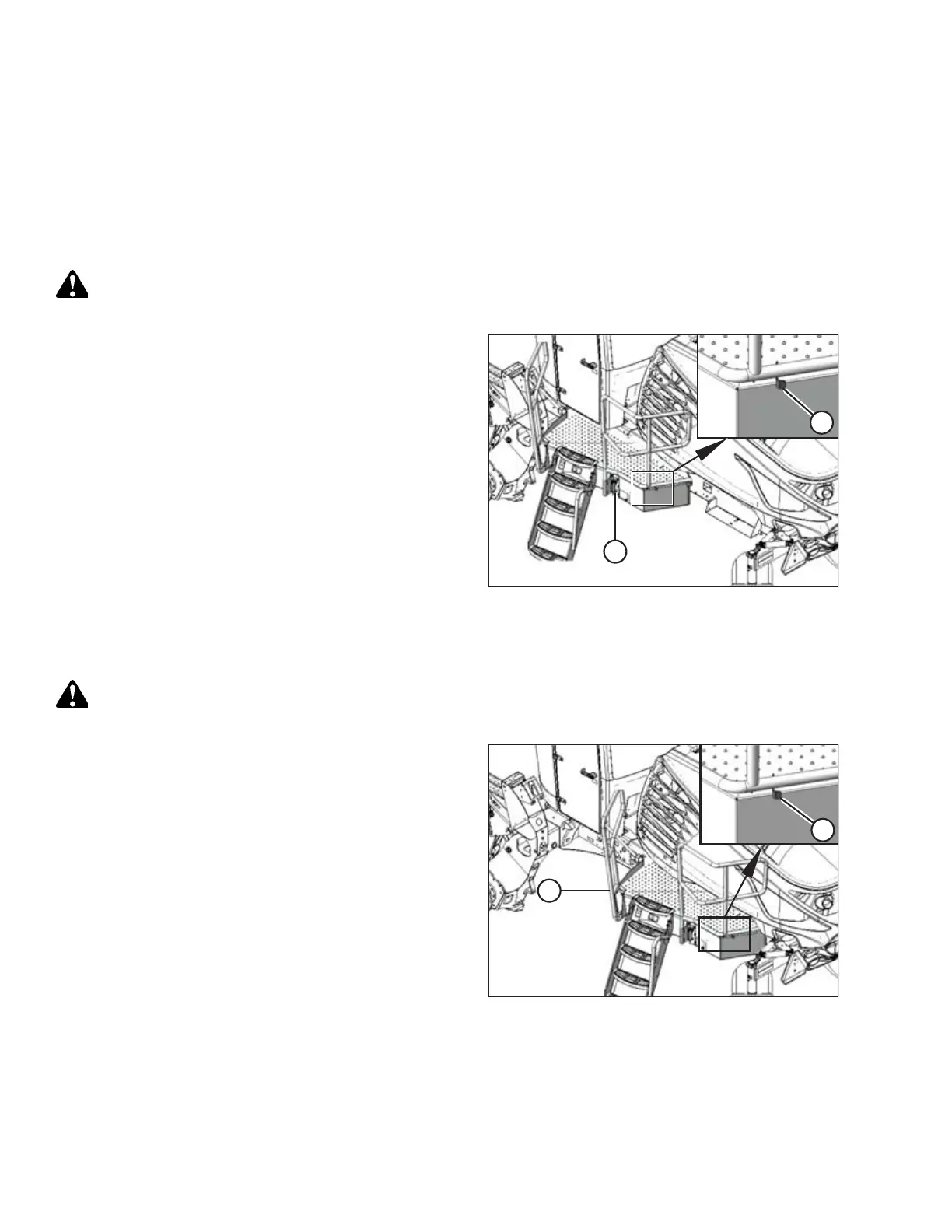

Figure 5.6: Left Cab-Forward Platform
1. Approach platform/stair unit (A) on left cab-forward side of
windrower and ensure cab door is closed.
2. Push latch (B), and pull platform (A) toward walking beam
until it stops and latch engages.
5.4.2 Closing Platform
CAUTION
Do NOT stand on an unlocked platform. It is unstable and may cause you to fall.
1015478
A
B
Figure 5.7: Open Platform
1. Push latch (A) to unlock the platform (B).
