MacDon M1170 - Chapter 3: Operator’s Station; Operator Console

214733 39 Revision A
Chapter 3: Operator’s Station
The operator’s station is designed for operating the windrower in cab-forward mode (working mode) or in engine-forward
mode (transport mode). The operator’s station, which includes the seat, console, and steering column, pivots 180 degrees
so that the Operator maintains access to the windrower controls and gauges regardless of the direction of travel.
3.1 Operator Console
1012699
A
B
C
D
E

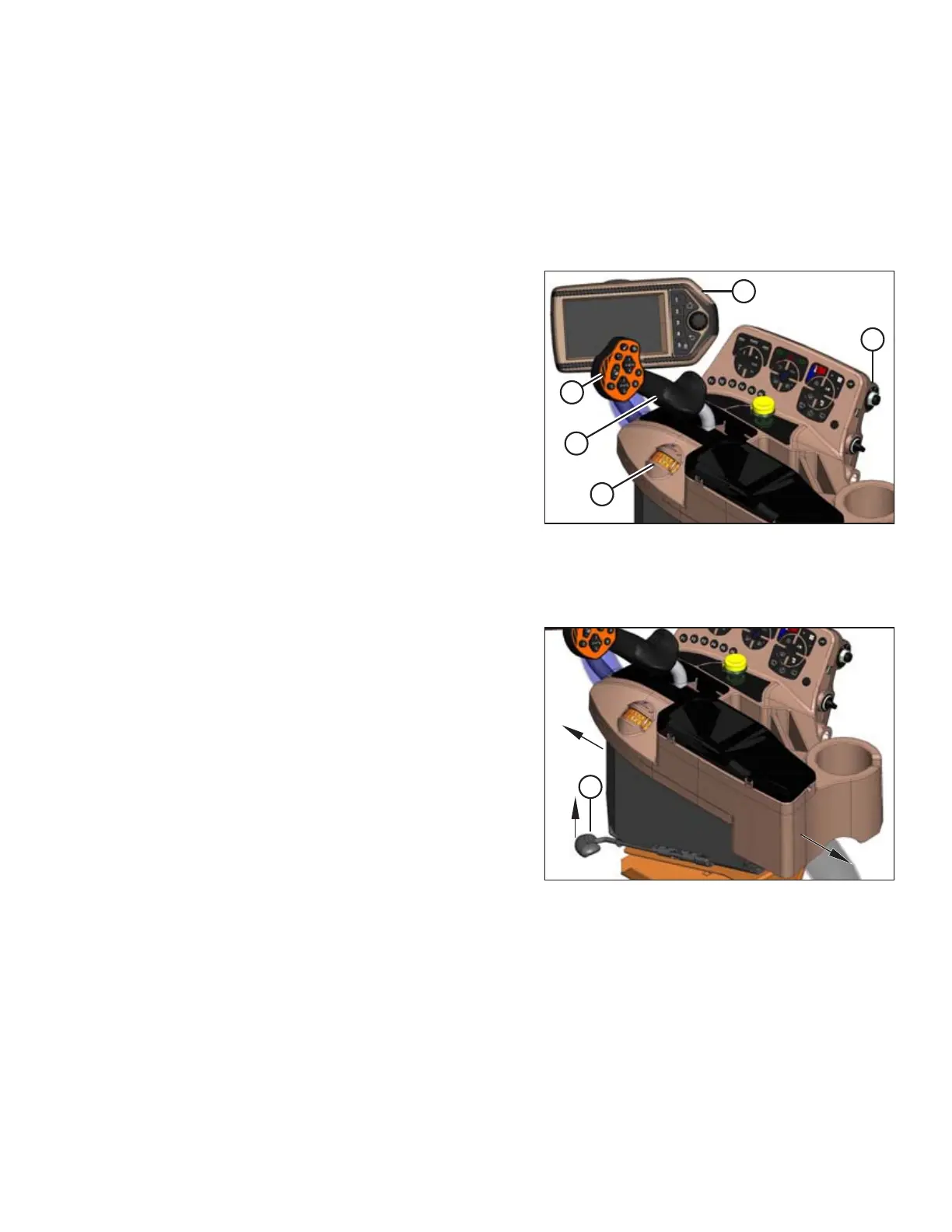

Figure 3.1: Operator Console
A - Ignition B - Harvest Performance Tracker (HPT) Display
C - Header Controls D - Ground Speed Lever (GSL)
E - Throttle
The console contains controls to operate the windrower, as well
as amenities for the Operator. The console position is adjustable
to suit each particular Operator.
1012702
A
Figure 3.2: Operator Console Fore-Aft/Height
1. Adjust fore-aft and height as follows:
a. Pull lever (A) and slide console fore or aft to the
desired position.
b. Release lever to lock console.
