Replacing Bulbs in Standard Work Lights
The following procedure applies to all halogen bulbs shown in Figure 5.176, page 369. If replacing engine-forward headlight
bulbs, refer to Replacing Headlight Bulb (Engine-Forward), page 370.
WARNING
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove the key
from the ignition before leaving the operator’s seat for any reason.

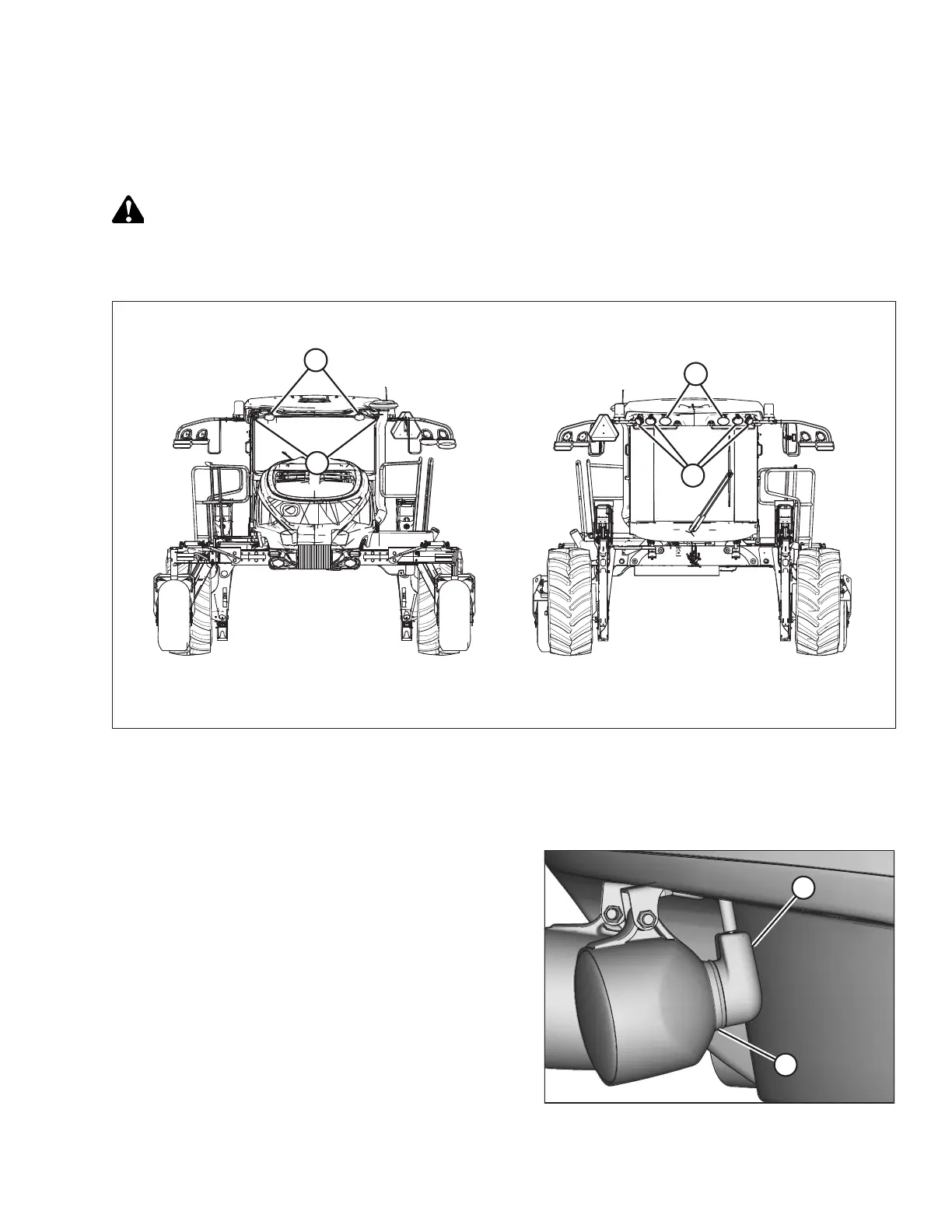

Figure 5.176: Halogen Bulb Locations
A - Front Work Lights (Field) B - Stubble Lights (Rear) C - Rear Work Lights D - Headlights (Cab-Forward)
NOTE:
Front work light shown.
1. Stop the engine and remove the key.
Figure 5.177: Front Work Light
2. Disconnect wiring harness (A).
3. Remove rubber insulator boot (B).
4. Remove bulb from body.
IMPORTANT:
Do NOT touch the glass of the halogen bulb as the oils or
other chemicals from your skin will cause the bulb to fail
prematurely.
5. Align lugs on new bulb with slots in housing and push
into place.
6. Install insulator boot (B) and wiring harness (A).
MAINTENANCE AND SERVICING
