MacDon M1170 - Header Position Six-Way Switch

214733 72 Revision A
1016093
A
B

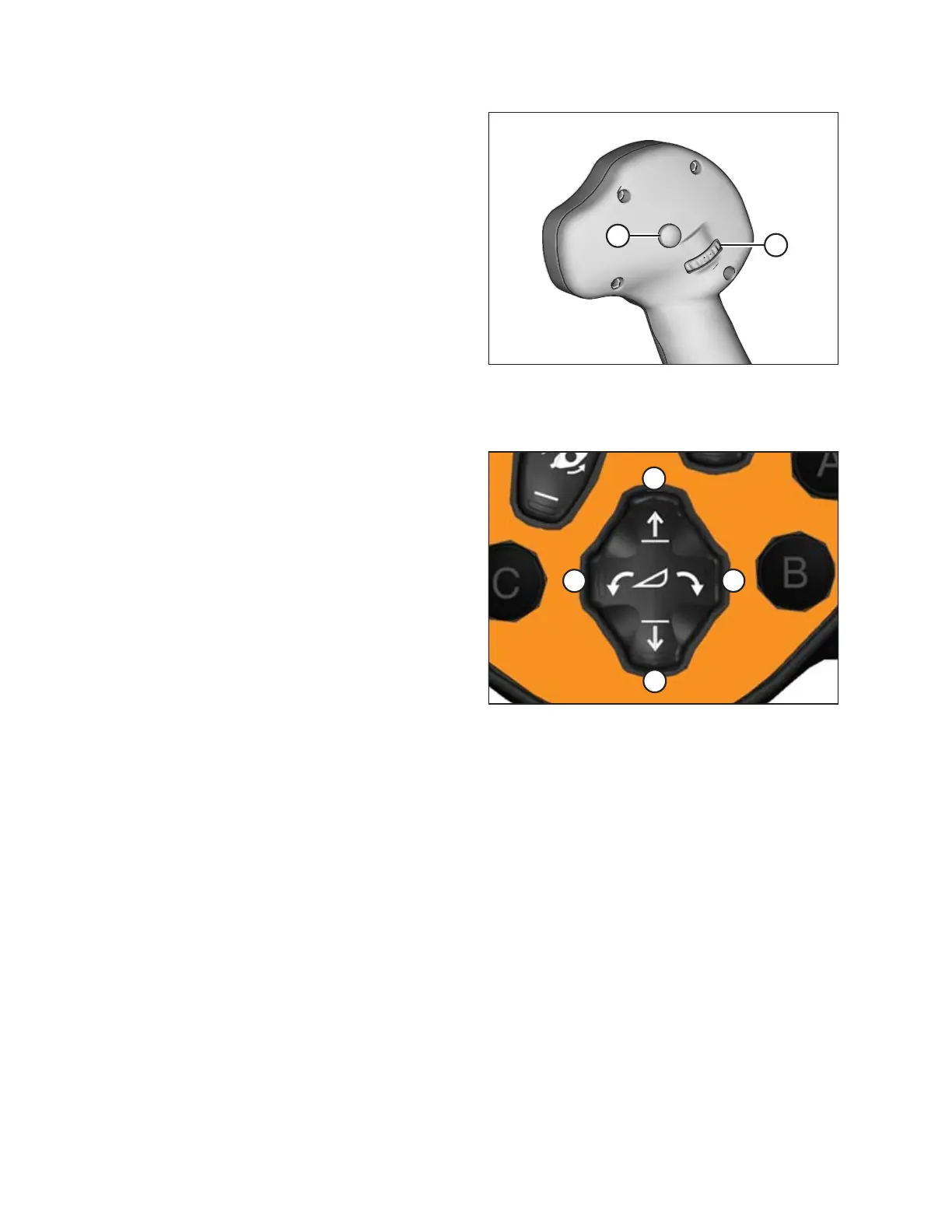

Figure 3.58: GSL Function Groups
GSL controls — rear
• Shift switch (A)
• Scroll wheel (B)
NOTE:
When the shift switch is used with another button it performs
the following shortcut functions:
• SHIFT + BACK – Home page
• SHIFT + SELECT – Main menu access
• SHIFT + SCROLL – Adjust maximum ground speed
Header Position Six-Way Switch
1012760
A
B
C
D
Figure 3.59: Ground Speed Lever
• To lower header slowly, press (A) lightly
• To lower header quickly, press (A) fully
• To raise header slowly, press (C) lightly
• To raise header quickly, press (C) fully
• To tilt header downward, press (B)
• To tilt header upward, press (D)
Release switch at desired position.
NOTE:
Header raise and lower rates are adjustable on the HPT display.
Refer to 4.6.9 Adjusting Header Raise and Lower Rates, page 199
or header setup in Menu Icons, page 85
NOTE:
Refer to the section in this manual that is specific to your header for detailed switch operating modes.
OPERATOR’S STATION
