Faults and Telltales
Faults and telltales displayed on the Harvest Performance Tracker (HPT) provide important information about the
windrower and the engine. Telltales (A) include a symbol indicating the affected area (refer to 4.2 Symbol Definitions, page
106) and a short description of the fault (B).
• Red faults (displayed on the top line) indicate that a major fault has occurred and will cause progressive damage or
affect the safe operation of the machine. The machine should be shut down as soon as possible.
• Yellow faults (displayed on the bottom line) indicate that a failure has occurred, and the machine should be serviced as
soon as possible to diagnose the failure.
To display a more detailed fault page, use the HPT scroll knob (E) to select the question mark symbol (C).
To close the short description (B), use the HPT scroll knob (E) to select the close symbol (D). Telltales (A) remain on the
screen until the fault is corrected.
NOTE:
Closing the short description of a yellow fault will mute the alarm tone associated with that fault. Alarm tones associated
with red faults cannot be muted.

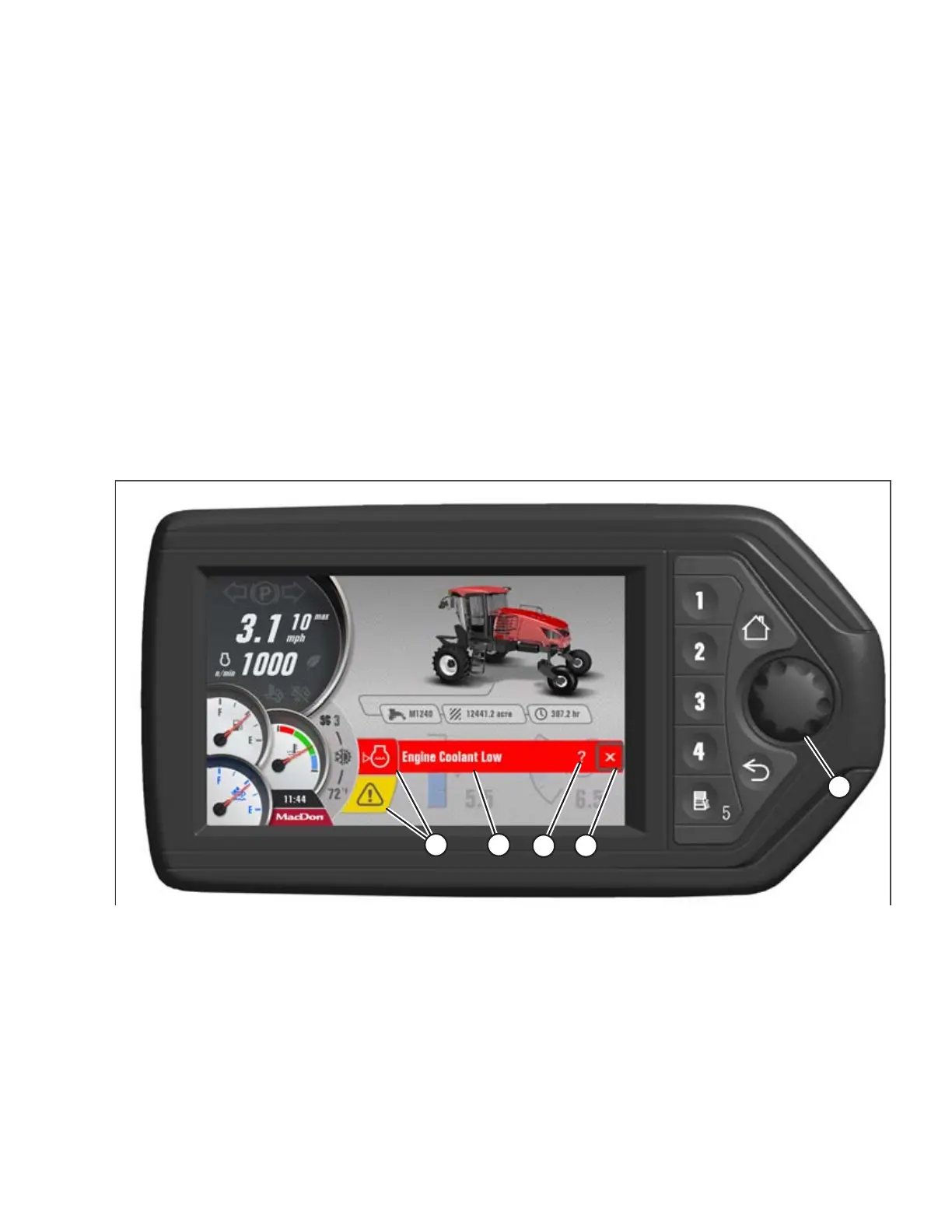

Figure 3.93: HPT Run Screen Displaying Faults
