MacDon M1170 - Adjusting Knife Alarm Pressure - Auger Header

214733 235 Revision A
1015211
A

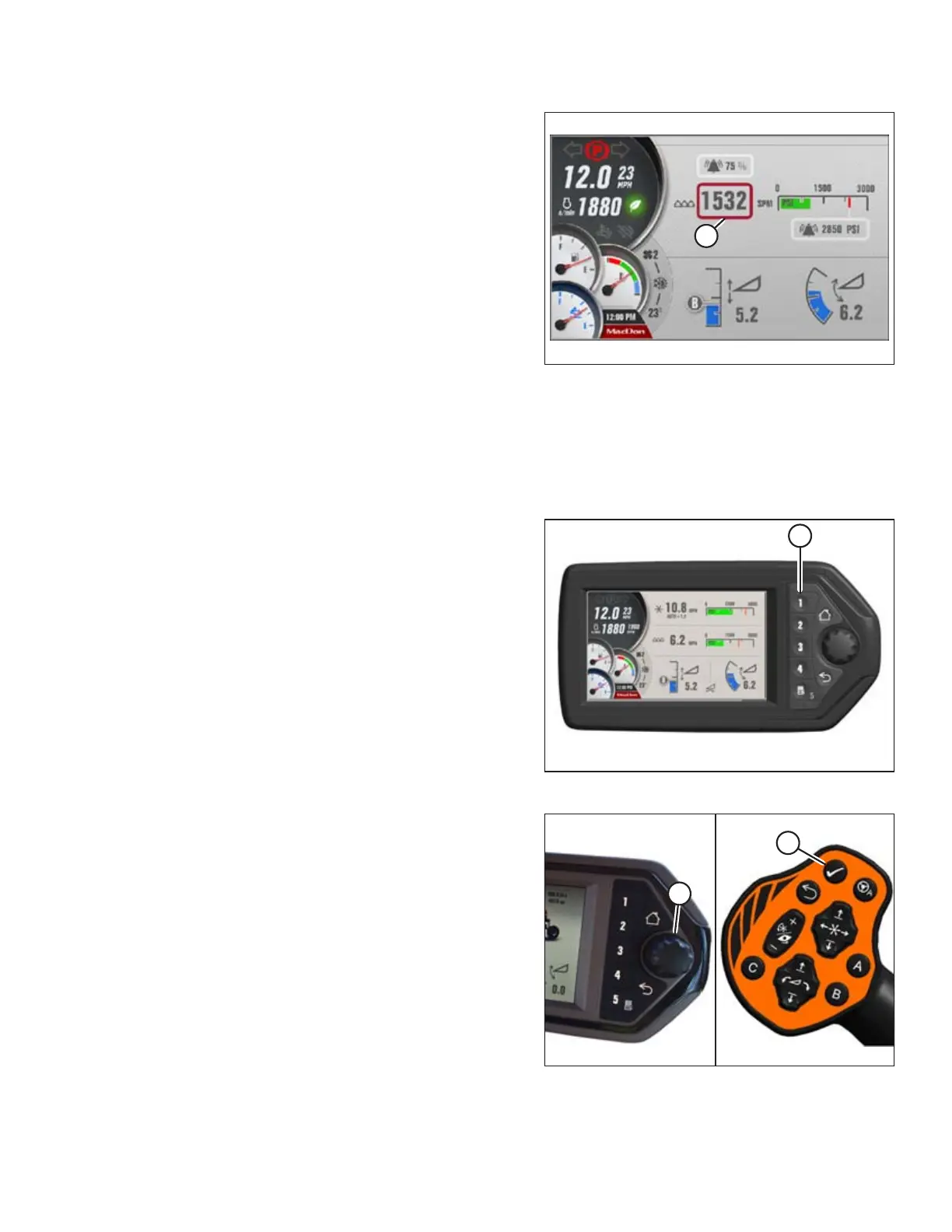

Figure 4.270: Setting Knife Speed
4. Scroll to and select the KNIFE SPEED setting (A).
5. Adjust knife speed using the HPT scroll knob.
6. Press the knob to select.
Adjusting Knife Alarm Pressure – Auger Header
Adjusting the knife alarm allows the operator to set an alert to inform them that the knife is operating at a desired
pressure. A lower setting will cause the alarm to be set off more often; a higher setting will allow the alarm to be set off
less frequently. This adjustment requires the header to be in operation.
1019648
A
Figure 4.271: Header Run Screen 1
1. If RUN SCREEN 1 is not already displayed, press soft key
1 (A) on the Harvest Performance Tracker (HPT) to display
auger RUN SCREEN 1.
1014578
A
B
Figure 4.272: HPT Scroll Knob and GSL Select Button
2. Press the scroll knob (A) on the Harvest Performance
Tracker (HPT) or the SELECT button (B) on the ground speed
lever (GSL) to display the QuickMenu system.
