MacDon M1170 - Every 1000 Hours; Removing and Installing the Fuel Tank Vent Filter

214733 329 Revision A
5.12 Every 1000 Hours
Complete the following maintenance tasks every 1000 hours of operation.
• Change fuel tank vent filter. Refer to 5.12.1 Removing and Installing the Fuel Tank Vent Filter, page 329.
• Clean DEF supply module filter. Refer to 5.12.2 DEF Supply Module Filter, page 331.
• Change wheel drive lubricant. Refer to 5.6.7 Changing Wheel Drive Lubricant, page 282.
5.12.1 Removing and Installing the Fuel Tank Vent Filter
The fuel tank is vented by a hose and filter in the platform rail. Change the filter every 1000 hours or annually, whichever
occurs first.
Change the filter as follows:
WARNING
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove the key
from the ignition before leaving the operator’s seat for any reason.
WARNING
To avoid personal injury or death from explosion or fire, do NOT smoke or allow flame or sparks near windrower when
servicing.
1018768
A
B

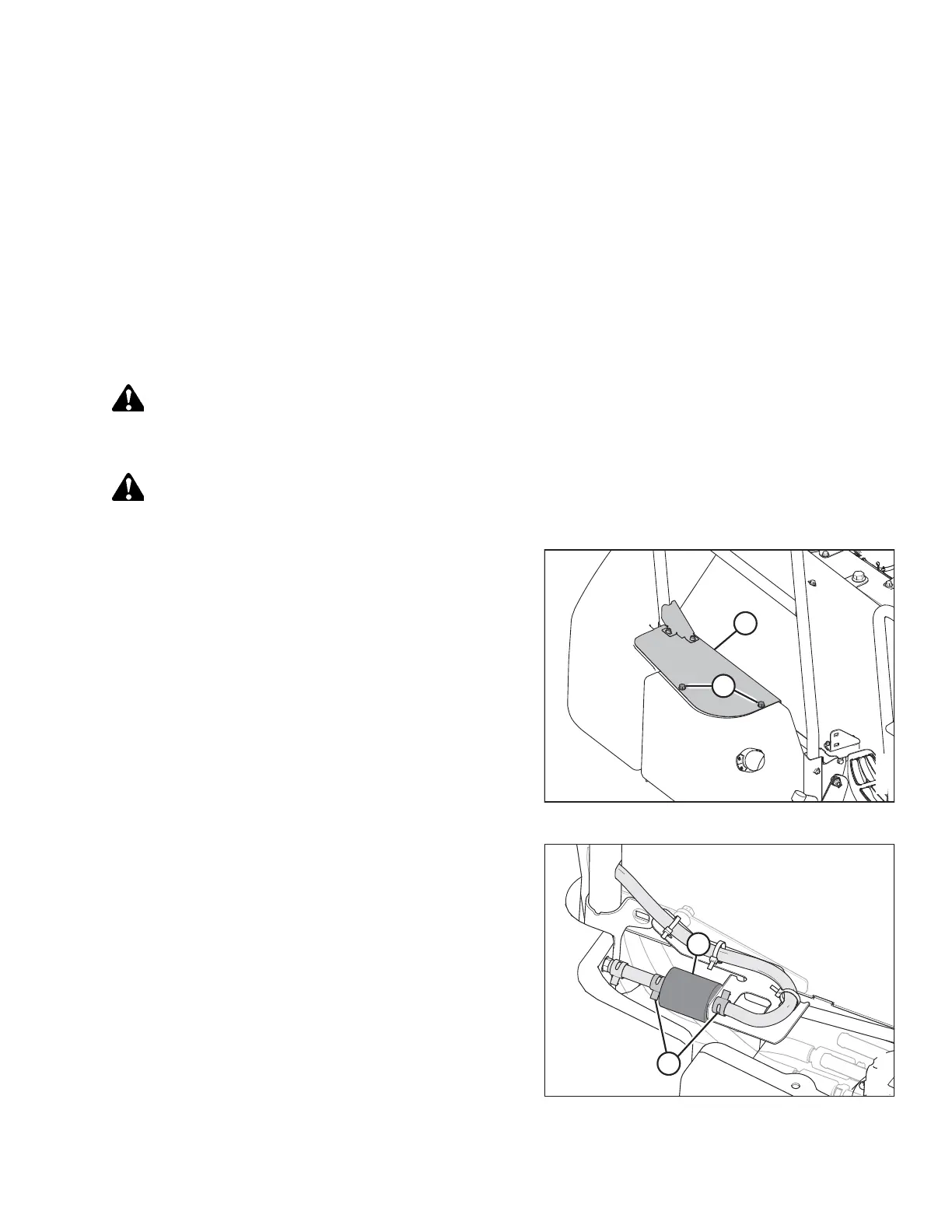

Figure 5.113: Right Service Platform
1. Stop the engine and remove the key.
2. Remove two bolts (A) and plate (B) on the right service
platform.
1018772
A
B
Figure 5.114: Fuel Tank Vent and Filter
3. Release hose tension clamps (A) and slide away from
filter (B).
4. Pull hoses off filter (B) and remove filter.
