MacDon M1170 - Header Controls

214733 70 Revision A
3.16 Header Controls
All header controls are conveniently located on the operator’s console and on the ground speed lever (GSL) handle.
NOTE:
Some controls are optional equipment and may not be present in your unit. Some controls may be installed, but are not
functional for certain headers.
Refer to specific header sections in this manual for detailed operating procedures for all header controls.
3.16.1 Header Engage Switch
10127561012756
A
B

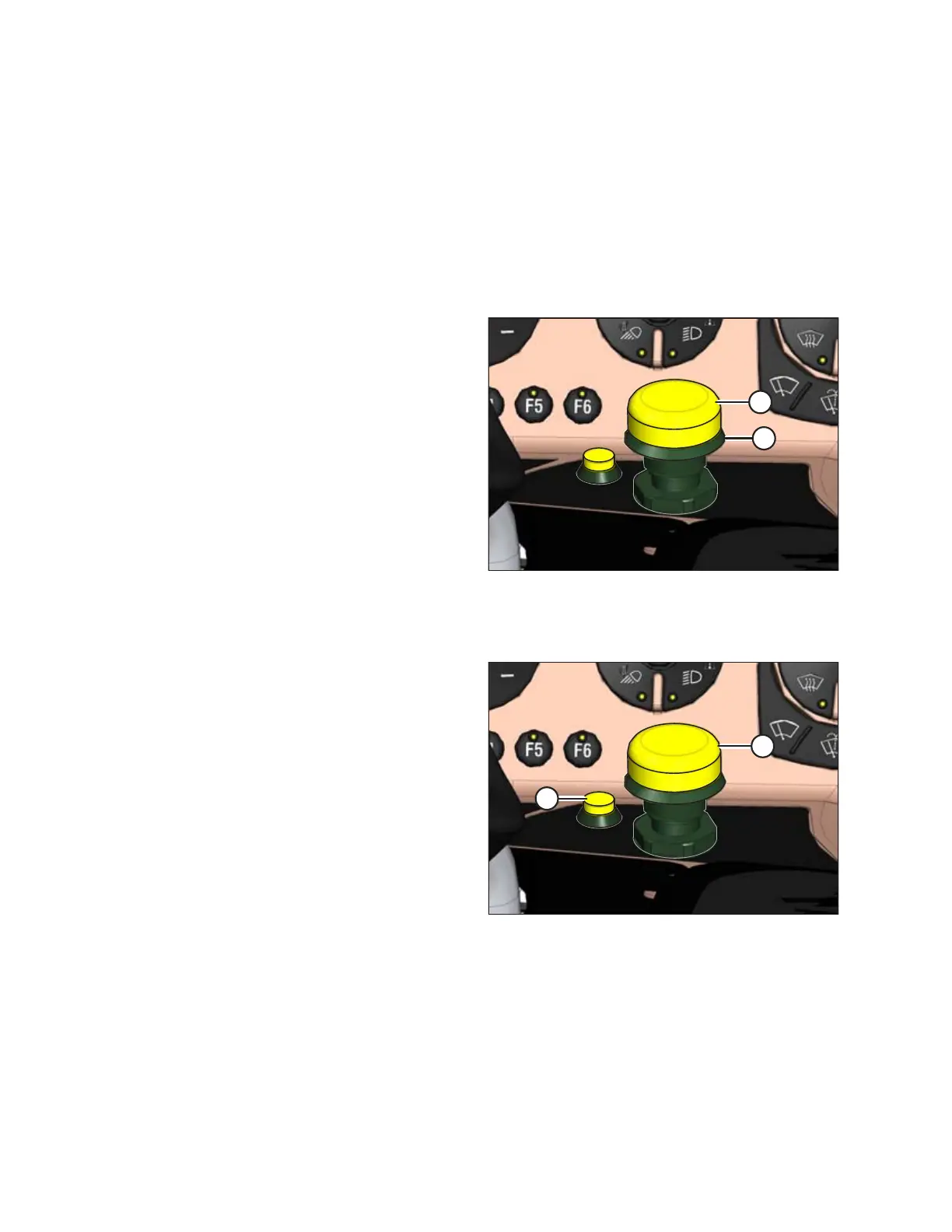

Figure 3.54: Header Engage Switch
The header engage switch (A) engages and disengages the
header drive.
To engage header: Push and hold HEADER ENGAGE switch (A)
down while pulling up on the collar (B).
To disengage header: Push HEADER ENGAGE switch (A) down.
NOTE:
Although not required, it is good practice to move the throttle
lever back to IDLE before engaging header drive.
3.16.2 Header Drive Reverse Button
1012757
A
B
Figure 3.55: Header Drive Controls
NOTE:
The following header systems have reverse capability:
• D1XL Series Draper Headers: knife
• D1X Series Draper Headers: knife
• R113 SP rotary headers: conditioner and discs
• A40DX Auger Headers: knife, conditioner, auger and reel
• A40DX GSS Auger Headers: knife, auger and reel
Reverse header systems as follows:
• Engage: Push and hold reverser button (B) and engage
header with switch (A).
• Disengage: Release reverser button (B).
NOTE:
To re-engage in forward operation, push switch (A) down and
then up again.
