Setting Draper Speed in Auto Mode
This adjustment requires the header to be in operation.
1019554
A

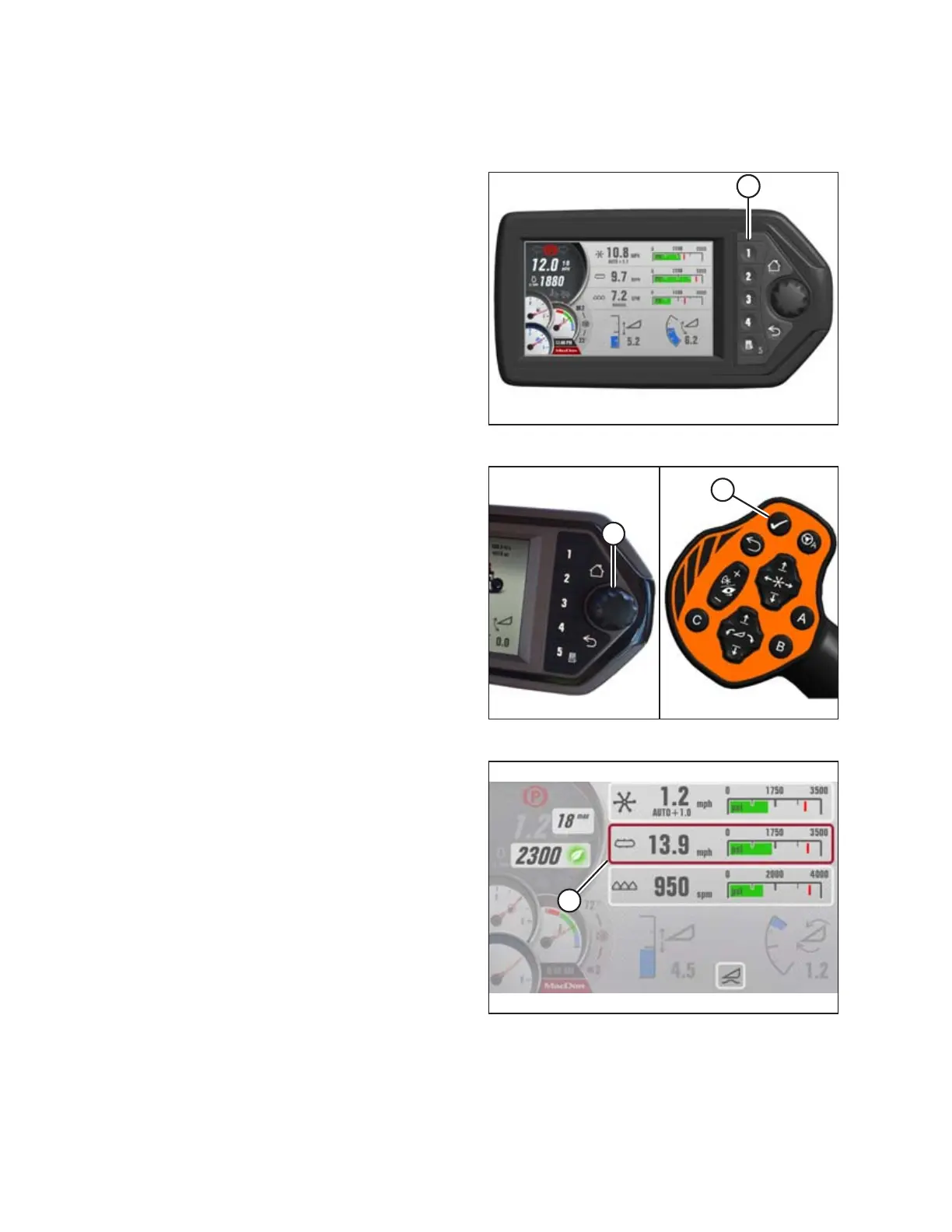

Figure 4.217: Header Run Screen 1
1. If RUN SCREEN 1 is not already displayed, press soft key
1 (A) on the Harvest Performance Tracker (HPT) to display
draper RUN SCREEN 1.
1019523
A
B
Figure 4.218: HPT Scroll Knob and GSL Select Button
2. Press the scroll knob (A) on the Harvest Performance
Tracker (HPT) or the SELECT button (B) on the ground speed
lever (GSL) while in any run screen to display the
QuickMenu system.
1019596
A
Figure 4.219: Header QuickMenu
3. Turn knob and scroll to the DRAPER setting (A) on
QuickMenu, and press knob to select it. The next
page opens.
