214733 206 Revision A
1019567
A
B

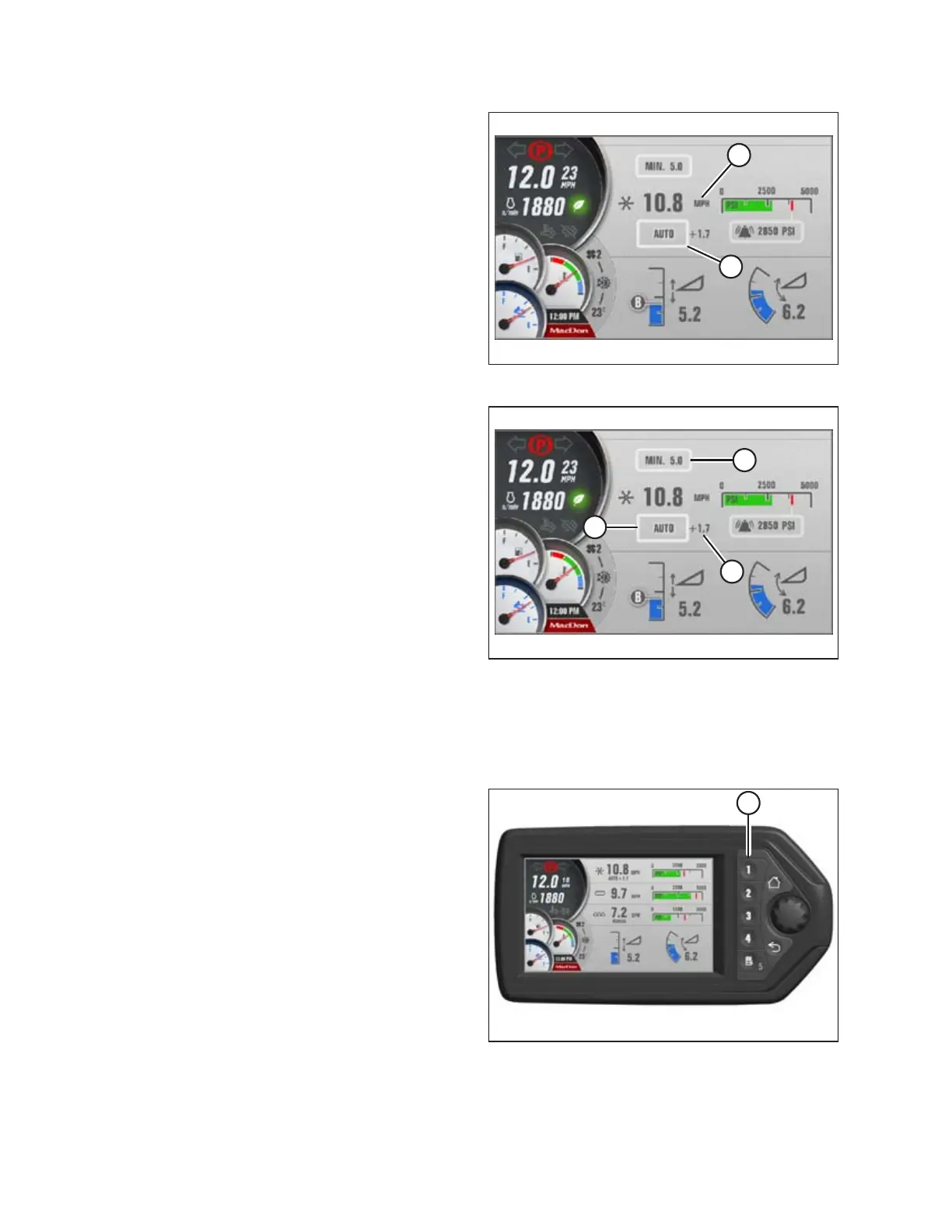

Figure 4.206: Draper Header Reel Page
4. Scroll to mode field (A) and select it.
5. Scroll in pop-up window to AUTO and select it.
NOTE:
In AUTO mode, the speed is displayed in km/h or mph (B)
which cannot be changed.
1019568
B
A
C
Figure 4.207: Draper Header Reel Page
6. Scroll to and select the MINIMUM REEL SPEED setting (A)
(this setting is grayed out in manual mode).
7. Turn scroll knob to adjust reel minimum speed to
1.6–8 km/h (1–5 mph) with 5 km/h (3.0 mph) as the
default. Press knob to select desired setting.
8. Scroll to INDEX value (C) and select it.
9. Turn scroll knob to set index value. The index range is +/- 8
km/h (5 mph) (zero, that is equal to ground speed, is the
default). Press knob to select desired setting.
NOTE:
The reel operates at reel minimum speed when the ground
speed is less than the set minimum speed. Minimum reel
speed is displayed (A) and MIN will replace the AUTO (B)
+1.7 (C).
Setting Reel Speed in Manual Mode
This adjustment requires the header to be in operation.
1019554
A
Figure 4.208: Header Run Screen 1
1. If RUN SCREEN 1 is not already displayed, press soft key
1 (A) on the Harvest Performance Tracker (HPT) to display
draper RUN SCREEN 1.
