MacDon M1170 - Operator Console Buttons

214733 123 Revision A
Operator Console Buttons

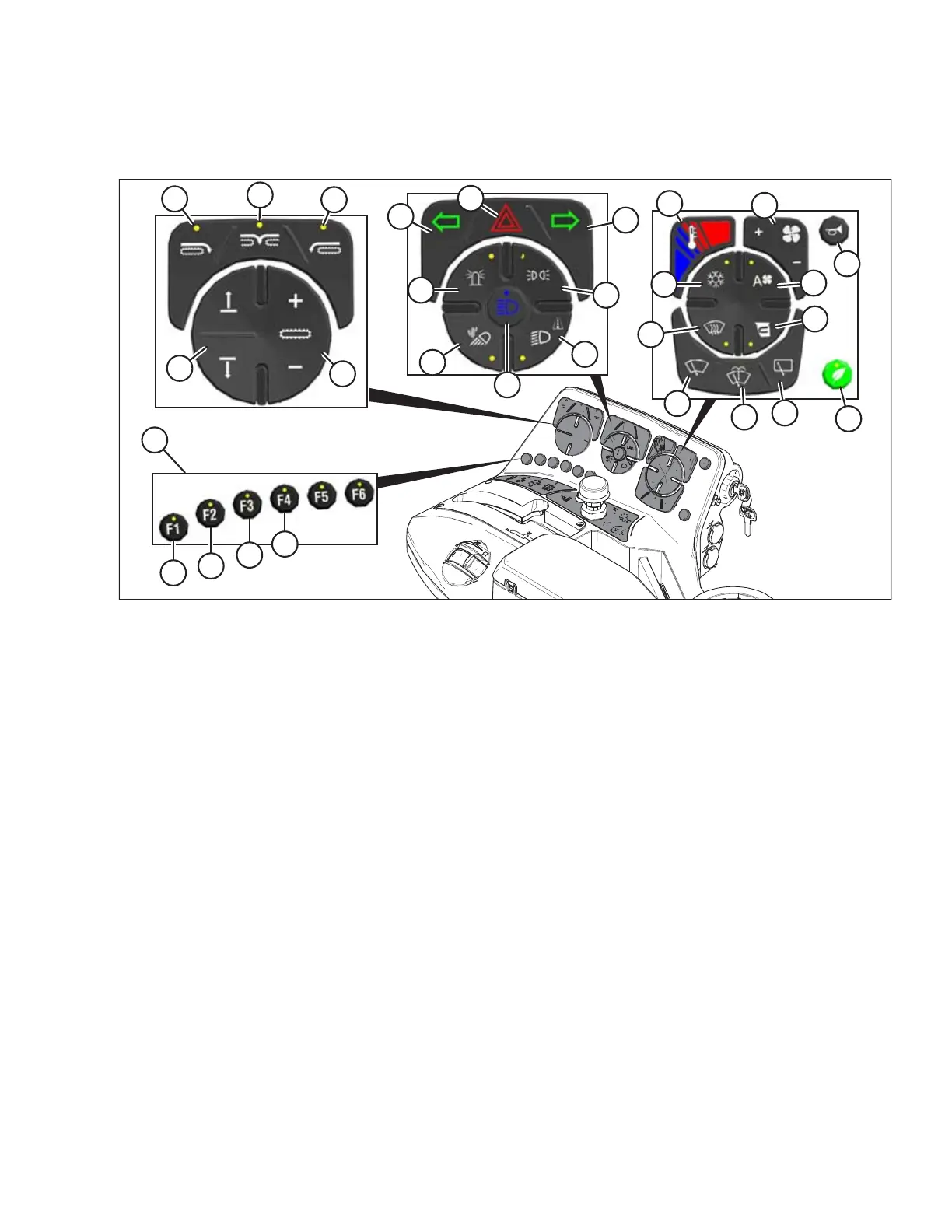

Figure 4.25: Operator Console Buttons
1019373
Q
R
S
P
T
Y
X
W
U
V
A
E
Z
D
F
G
H
H
L
M
N
K
B
C
AA
AB
AC
AD
AE
A - Double Window Attachment (DWA) / Swath
Roller
B - Deck Shift Draper Right Side Delivery C - Deck Shift Draper Center Delivery
D - Deck Shift Draper Left Side Delivery E - Draper / Double Windrow Attachment (DWA) Speed F - Cab-Forward Field Lights
G - Beacon Lights H - Turn Signals K - Hazard Lights
L - Clearance Lights M - Road Lights N - High Beams
P - Windshield Defog/Defrost Q - Air Conditioning R - Temperature
S - Blower Speed (Manual Mode) T - Horn U - Auto Fan Speed
V - Cab Air Recirculation W - Eco Engine Control (EEC) X - Windshield Wiper (Rear)
Y - Wiper Fluid Z - Windshield Wiper (Front) AA - Harvest Performance Tracker (HPT)
Shortcuts
AB - Float Menu Shortcut AC - One-Touch-Return Shortcut AD - Windrower Settings Shortcut
AE - Header Settings Shortcut
OPERATION
