MacDon M1170 - Tail; Beacon Lighting

214733 55 Revision A
1016074
A
A
B
B
C C
D
D

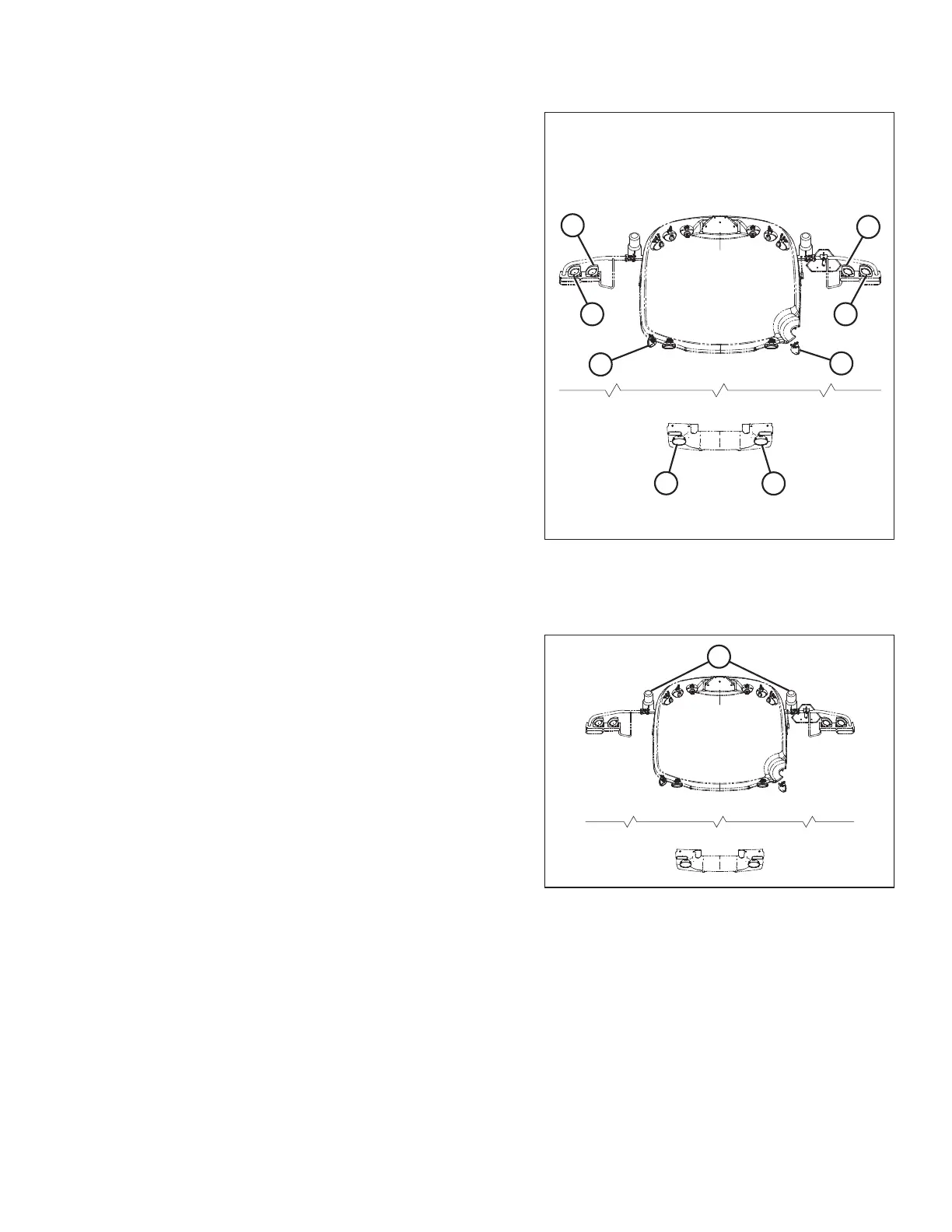

Figure 3.27: Windrower Lighting – Top View
• Engine-forward headlights (A) with low/high beams
• Red taillights (B) on the mirror supports
• Amber turn signals and hazard lights (C) on mirror supports
(viewed from the front)
• Work lights (D) turn on only when high beams are activated
in engine-forward mode
NOTE:
To align headlights (A), refer to Aligning Headlights: Engine-
Forward, page 364 .
3.7.4 Tail / Beacon Lighting
1016079
A
Figure 3.28: Windrower Lighting – Top View
The beacons (A) are functional when the IGNITION is ON and
the BEACON button (B) is selected.
NOTE:
In some areas, the law requires the use of beacon lights when
driving on the road.
OPERATOR’S STATION
