3.3.3 Suspension and Height
Use controls to adjust the height and stiffness of the seat suspension.
1012782
A

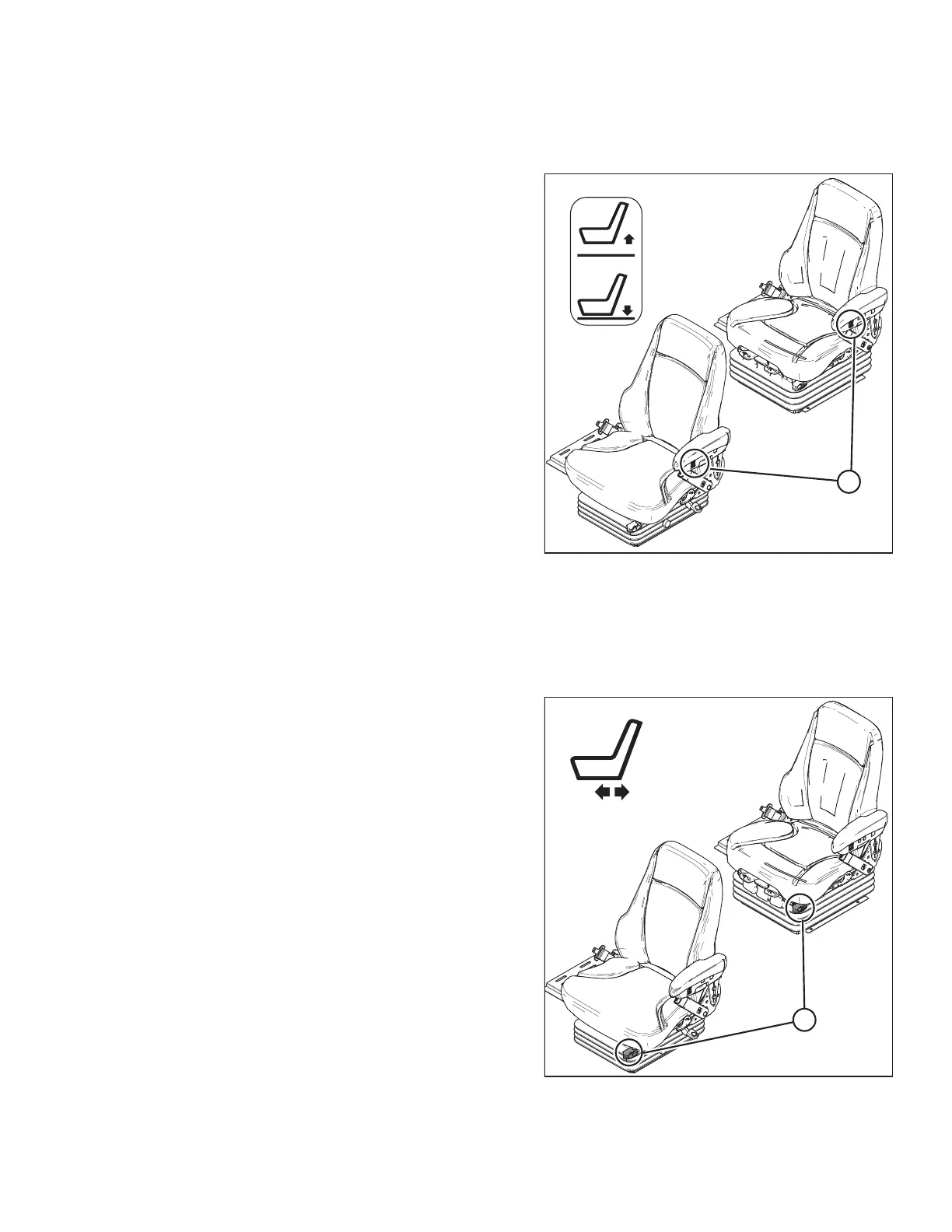

Figure 3.6: Operator’s Seat Suspension and Height
Controls
• Press upper switch (A) to increase seat stiffness and height.
• Press lower switch (A) to decrease seat stiffness and height.
3.3.4 Fore-Aft Slide Control
Use controls to adjust the seat’s fore-aft position.
1012786
A
Figure 3.7: Operator’s Seat Fore-Aft Position Controls
1. Pull lever (A) up to release.
2. Move seat forward or rearward.
3. Release lever (A).
