4.9.3 Disc Header Run Screens
Two disc header specific run screens are viewable when operating windrower with an auger header attached. The screens
are accessed by pressing the applicable soft keys on the Harvest Performance Tracker (HPT).
Run Screen 1

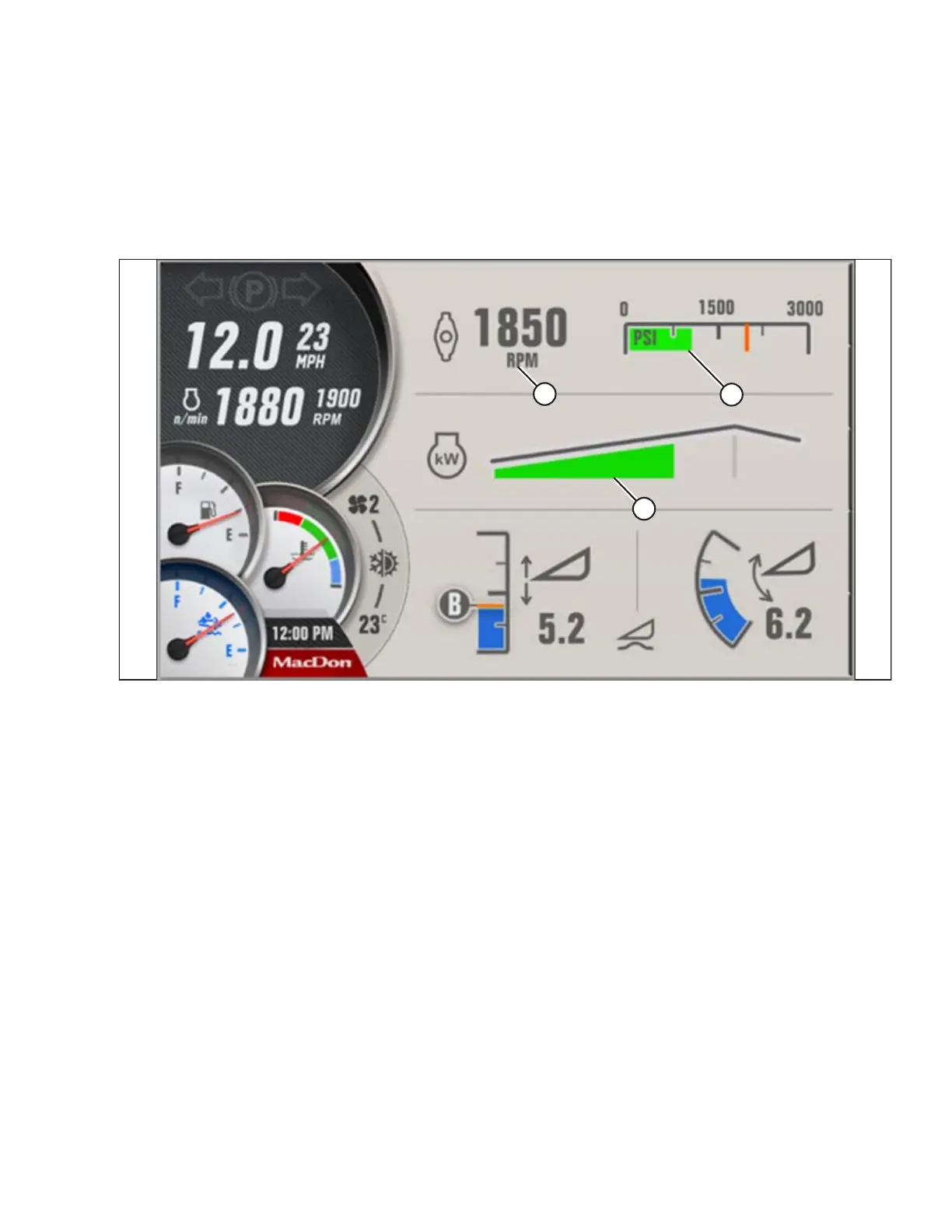

Figure 4.290: Run Screen 1 – Disc Header Display
1014987
A
B
C
A - Disc Speed B - Disc Pressure C - Engine Load Bar
