MacDon M1170 - Air Conditioning (A;C)

214733 267 Revision A
Air Conditioning (A/C)

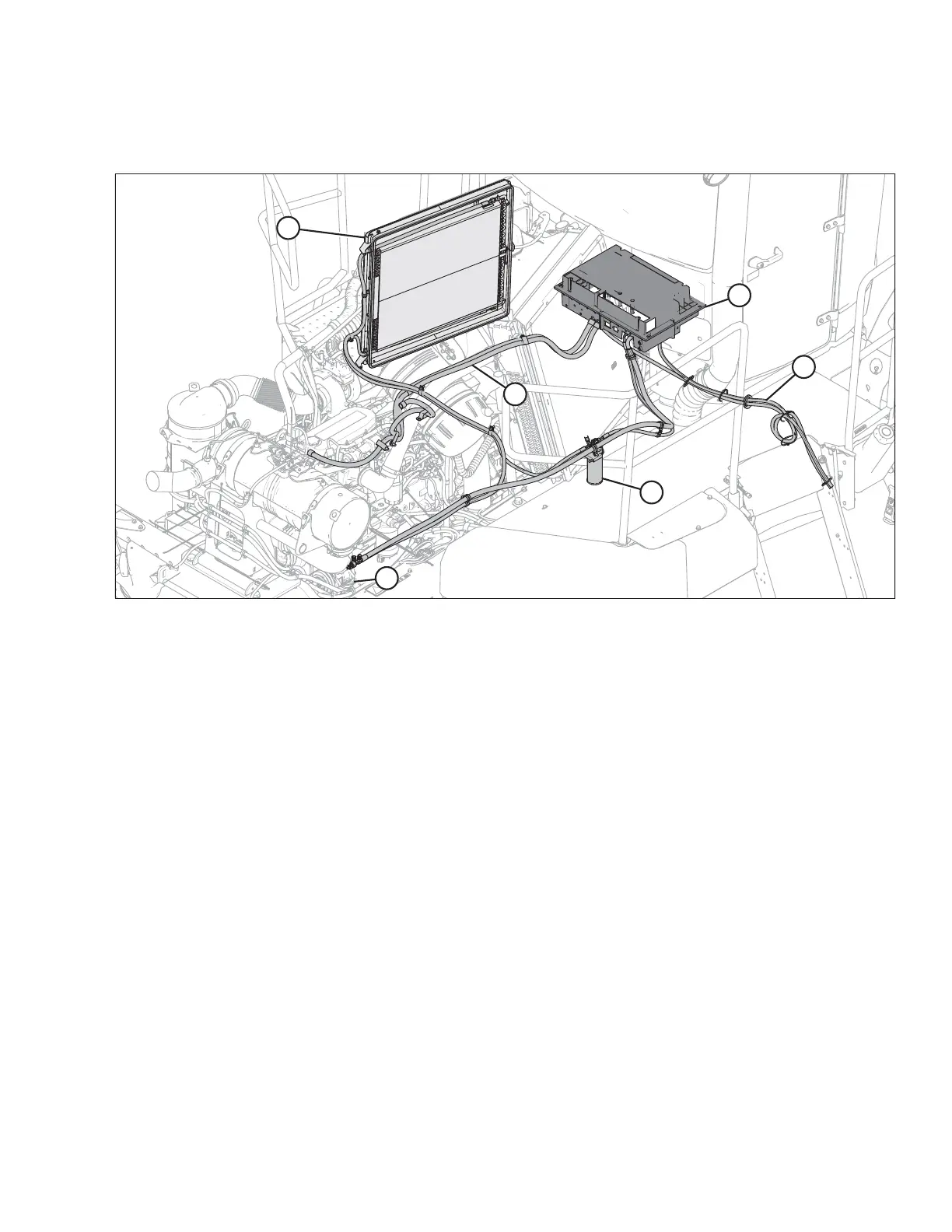

Figure 5.23: Air Conditioning
1013053
A
B
C
D
E
F
A - Condenser B - Compressor C - HVAC Drain Lines
D - Drier E - HVAC Unit F - Cab Heater Lines
Condenser
The air conditioning condenser should be cleaned with compressed air every 100 hours of operation. More frequent
cleaning may be necessary in severe conditions.
Cleaning the condenser can be done at the same time as the radiator, oil cooler, and charge air cooler. Refer to 5.9.2
Cleaning Cooler Screens and Components, page 305.
