Double Windrow Attachment (DWA) Deck Position
1015169
A
B

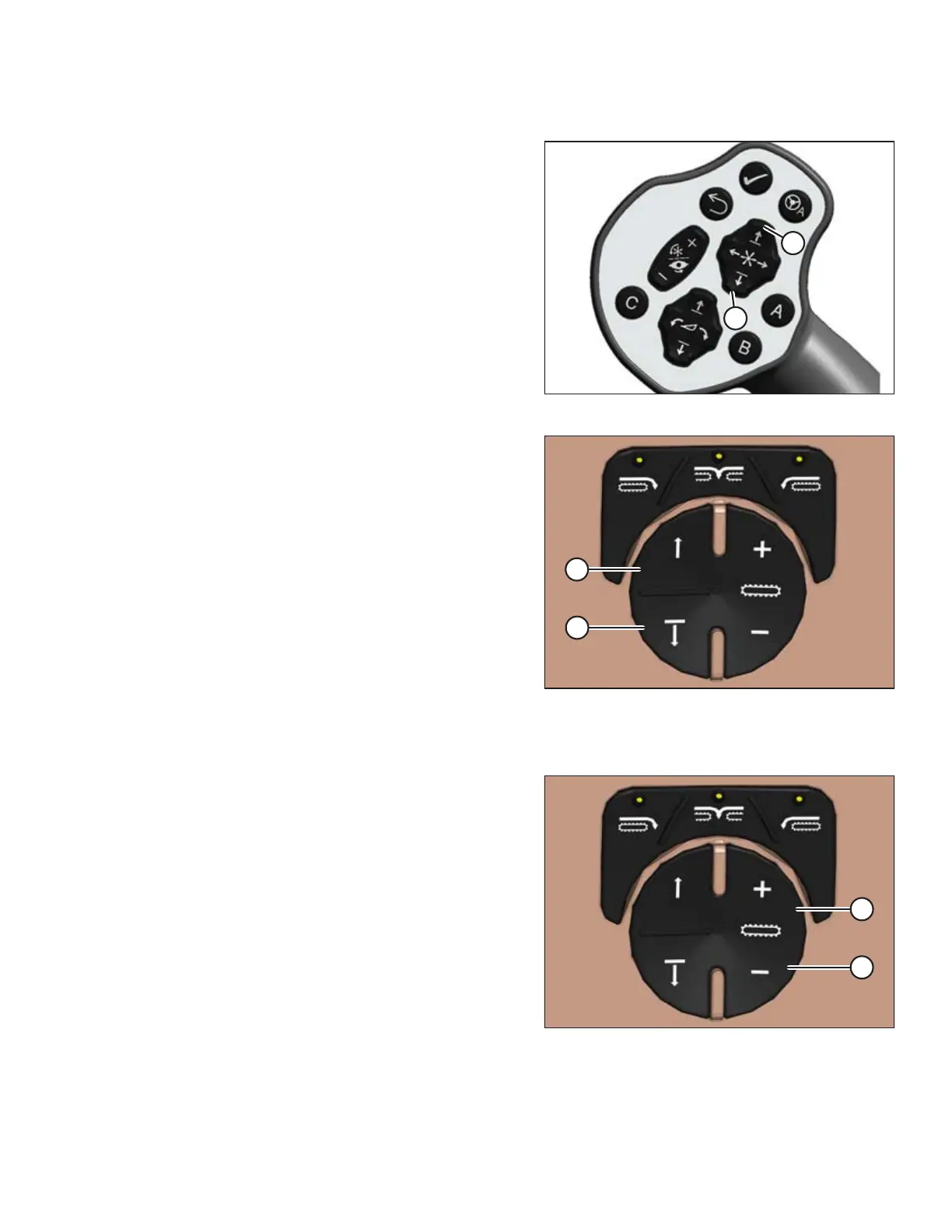

Figure 4.183: GSL
1016066
A
B
Figure 4.184: Operator’s Console Draper Controls
1. Raise and lower DWA deck with REEL UP (A) and REEL
DOWN (B) switches on ground speed lever (GSL), or on the
operator’s console.
NOTE:
This can also be done with the One-Touch-Return. Refer to
One-Touch-Return Buttons (A, B, C), page 74.
Double Windrow Attachment (DWA) Conveyor Speed
1014968
A
B
Figure 4.185: Operator’s Console
The DWA conveyor speed is adjustable from the operator’s
console. Press button (A) to increase the speed or button (B) to
decrease the speed.
NOTE:
When DWA is attached, the conveyor speed adjustment buttons
also control header draper speeds.
