3.7 Lighting

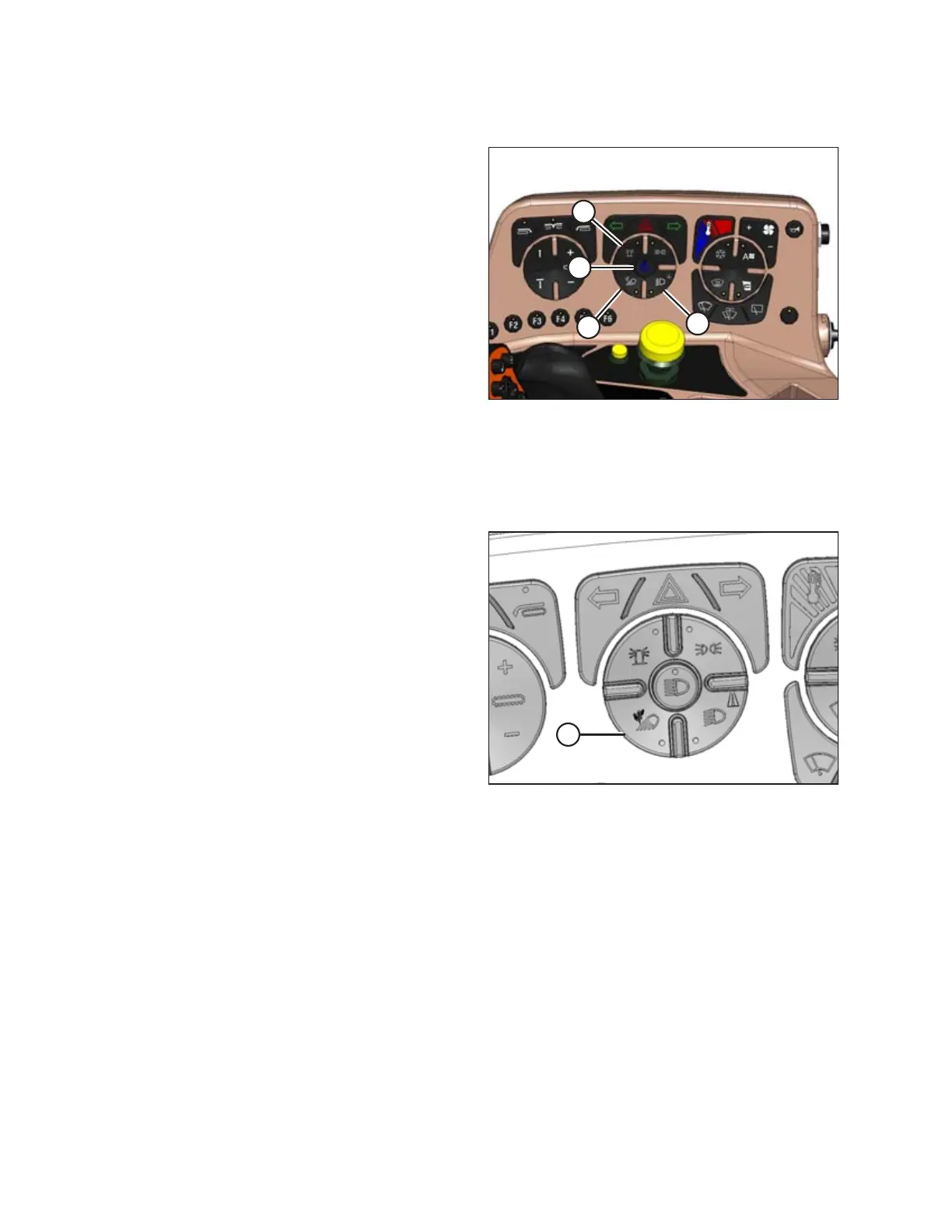

Figure 3.21: Light Switches
A - Road Lights B - Field Lights
C - Low or High Beams D - Beacons
The field and road light switches are located on the operator’s
console.
The position of the operator’s station (cab-forward mode or
engine-forward mode) automatically determines which lights
are active when the lighting mode is selected.
The field lights (B) do NOT turn on when the windrower is in
engine-forward mode.
An LED on the switch changes from OFF to amber when the
switch is on. The high beam switch has a blue LED that changes
from OFF to blue when the switch is on.
3.7.1 Cab-Forward Lighting – Field
Figure 3.22: Field Light Button
The following lights are on when FIELD LIGHT button (A) is
selected and operator’s station is locked in cab-forward mode:
OPERATOR’S STATION
