MacDon M1170 - Replacing Bulbs in Red and Amber Lights

214733 373 Revision A
Replacing Bulbs in Red and Amber Lights
To replace bulbs in red and amber lights, follow these steps:
WARNING
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove the key
from the ignition before leaving the operator’s seat for any reason.
1020038
A
B

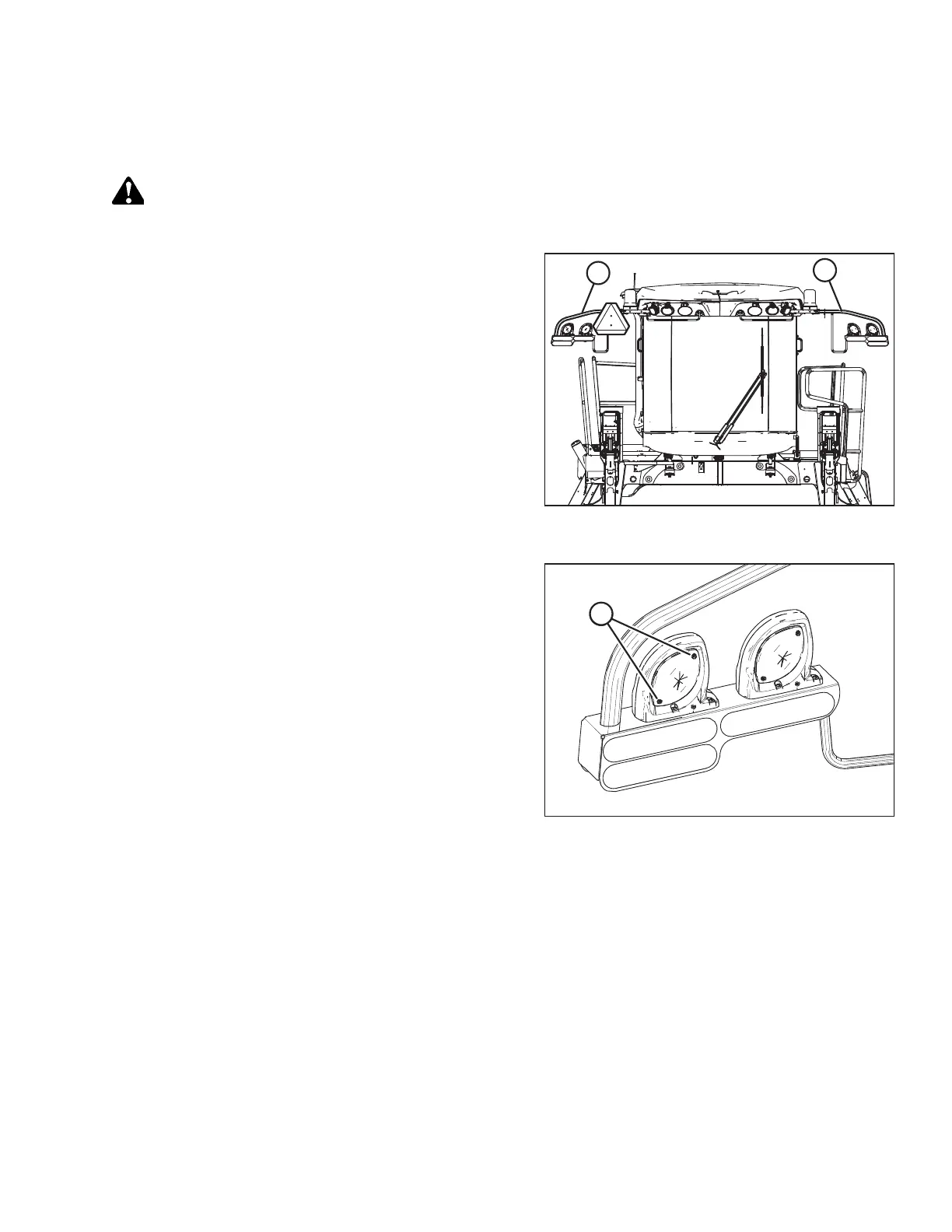

Figure 5.184: Cab-Forward Red and Amber Light
Locations
1. Shut down engine and remove key. Turn lights OFF.
NOTE:
Hold onto the handholds on the cab front corners and
stand on the header anti-slip strips, or stand on the
maintenance platform when accessing the red and amber
lights.
2. Use left or right platform to access marker lights (A) and (B)
attached to mirror arms.
1015898
B
A
Figure 5.185: Red and Amber Lights
3. Remove two screws (A) from lens and remove lens.
4. Push and twist light bulb to remove from socket.
5. Install a new bulb in the socket, ensuring that bulb base is
properly engaged in socket.
• Use Bulb Trade #1157 for red tail lights
• Use Bulb Trade #1156 for amber lights
6. Reinstall lens with screws (A).
MAINTENANCE AND SERVICING
