MacDon M1170 - Replacing the Cabin Dome Bulb

214733 375 Revision A
Replacing the Cabin Dome Bulb
WARNING
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove the key
from the ignition before leaving the operator’s seat for any reason.
1. Stop the engine and remove the key.
1015621
A
B

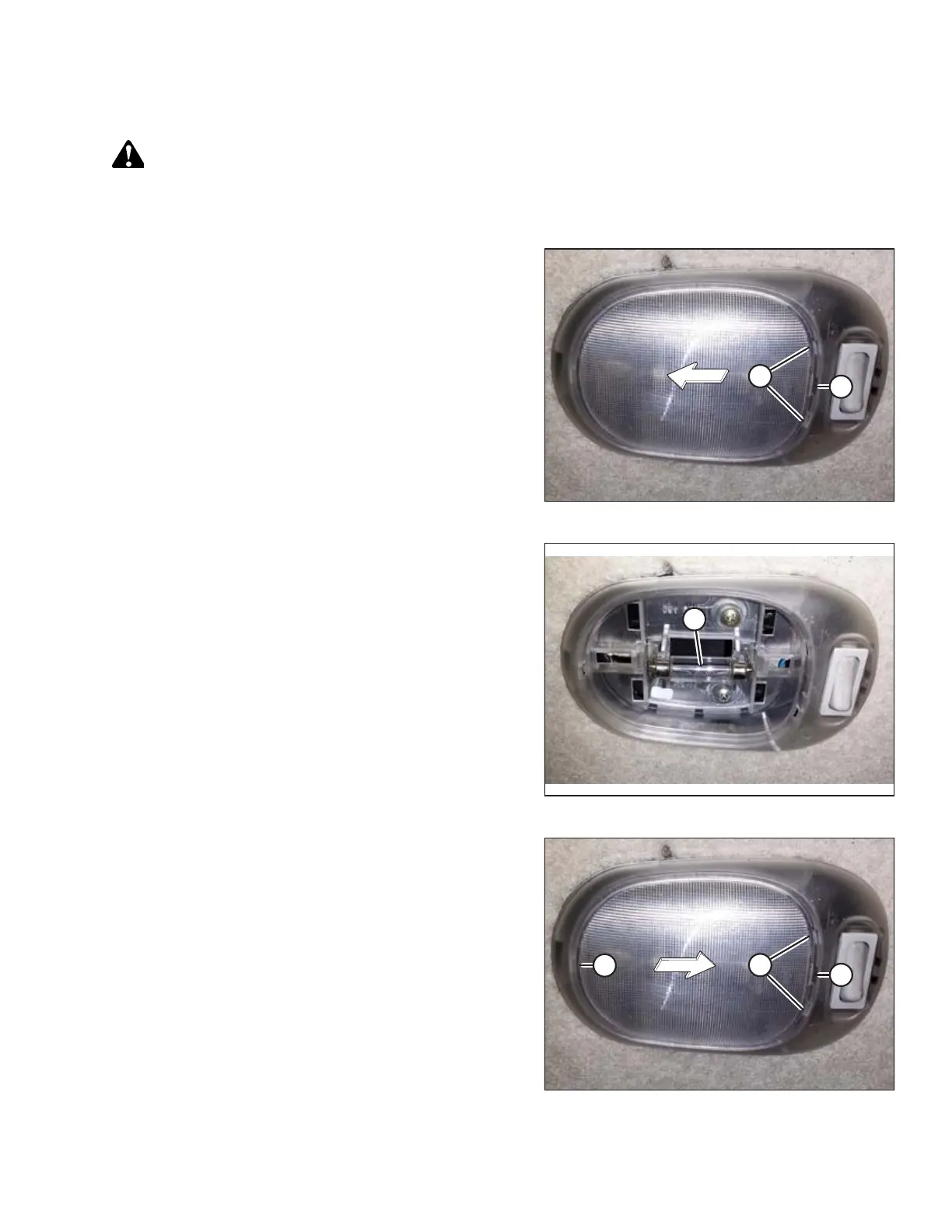

Figure 5.188: Cabin Dome Light
2. Insert a slotted screwdriver (or similar prying tool) into
slot (A). Gently pry the lens cover until retaining tabs (B)
are free of the dome light bezel.
3. Remove lens cover.
1015623
A
Figure 5.189: Cabin Dome Light with Cover Removed
4. Replace bulb (A) (MD #208191).
IMPORTANT:
Do NOT touch glass with fingers.
1015609
A
C
B
Figure 5.190: Cabin Dome Light
5. Insert single retaining tab (A) into dome light bezel.
6. Insert a slotted screwdriver (or similar prying tool) into
slot (B), and gently pry lens cover until retaining tabs (C)
engage into dome light bezel.
