MacDon M1170 - Setting Reel Speed in Manual Mode

214733 230 Revision A
Setting Reel Speed in Manual Mode
This adjustment requires the header to be in operation.
1019648
A

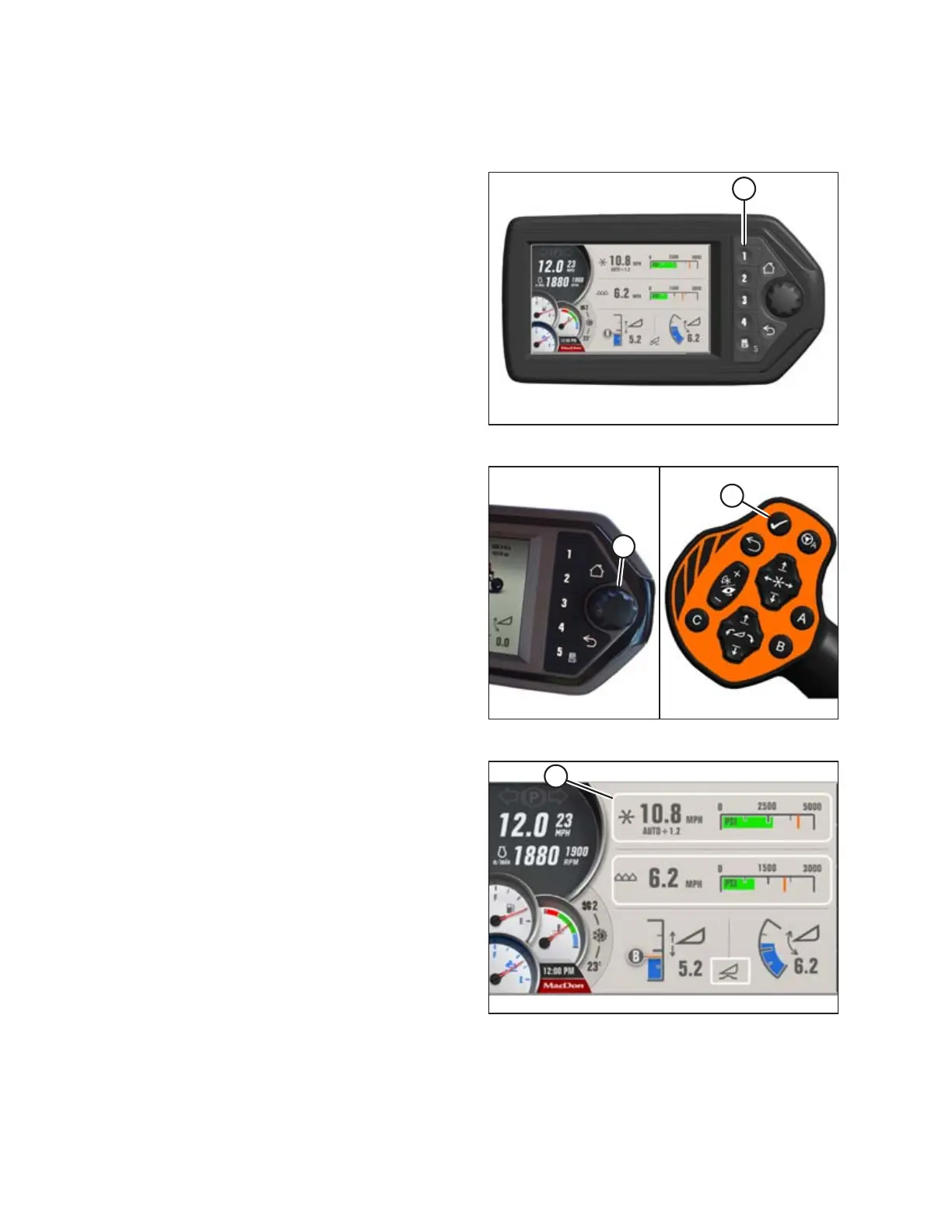

Figure 4.258: Header Run Screen 1
1. If RUN SCREEN 1 is not already displayed, press soft key
1 (A) on the Harvest Performance Tracker (HPT) to display
auger RUN SCREEN 1.
1014578
A
B
Figure 4.259: HPT Scroll Knob and GSL Select Button
2. Press the scroll knob (A) on the Harvest Performance
Tracker (HPT) or the SELECT button (B) on the ground speed
lever (GSL) to display the QuickMenu system.
10196381019638
A
Figure 4.260: Header QuickMenu Screen
3. Turn knob to scroll to REEL setting (A) on QuickMenu, and
press knob to select it. The next screen opens.
