MacDon M1170 - Ground Speed Lever (GSL) Switches

214733 71 Revision A
3.16.3 Ground Speed Lever (GSL) Switches
1012746
A

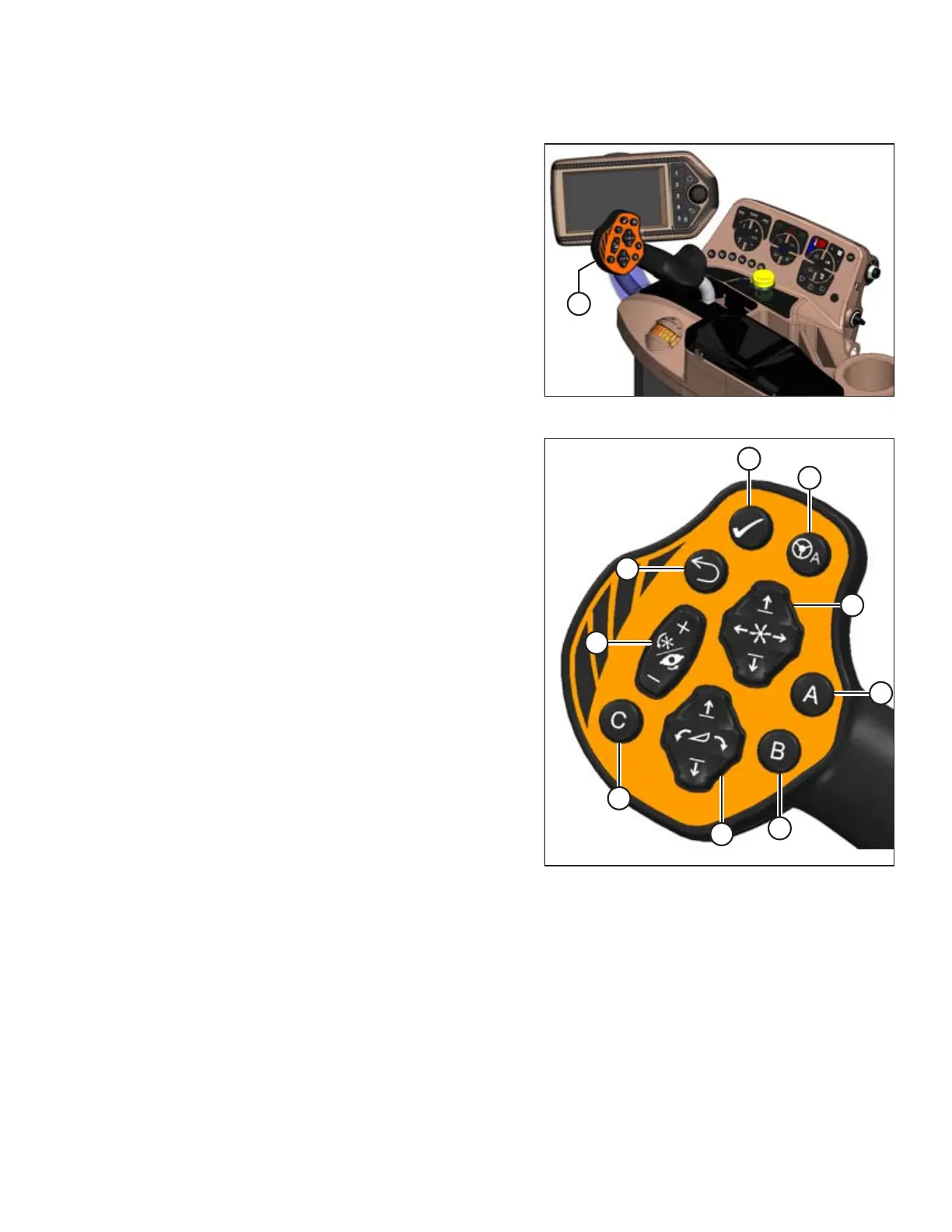

Figure 3.56: Ground Speed Lever (GSL)
The switches on the GSL (A) control the most common header
functions.
1020009
A
B
C
D
E
F
G
H
J
Figure 3.57: GSL Function Groups
GSL controls — front
• One-Touch-Return position switch (A)
• One-Touch-Return position switch (B)
• One-Touch-Return position switch (C)
• Reel or disc speed (D) (also operates turn signals when
header disengaged)
• Reel position (E)
• Autosteer engagement (F) (if equipped)
• Header position (G)
• Back switch (H) controls Harvest Performance Tracker (HPT)
functions
• Select switch (J) controls HPT functions
