MacDon M1170 - Operating with D1 X or D1 XL Series Draper Header

214733 201 Revision A
4.7 Operating with D1X or D1XL Series Draper Header
The M1170 Windrower can be factory-configured for any of the headers available from MacDon. If your windrower
requires any conversion kits, contact your MacDon Dealer for details. Refer to 6 Options and Attachments, page 395.
For attachment instructions, refer to Attaching a D1X or D1XL Series Header, page 158.
4.7.1 Header Position
Refer to 4.6 Operating with a Header, page 184 for procedures for controlling header height, header tilt, and float.
4.7.2 Adjusting Reel Fore-Aft Position
1019520
B
A

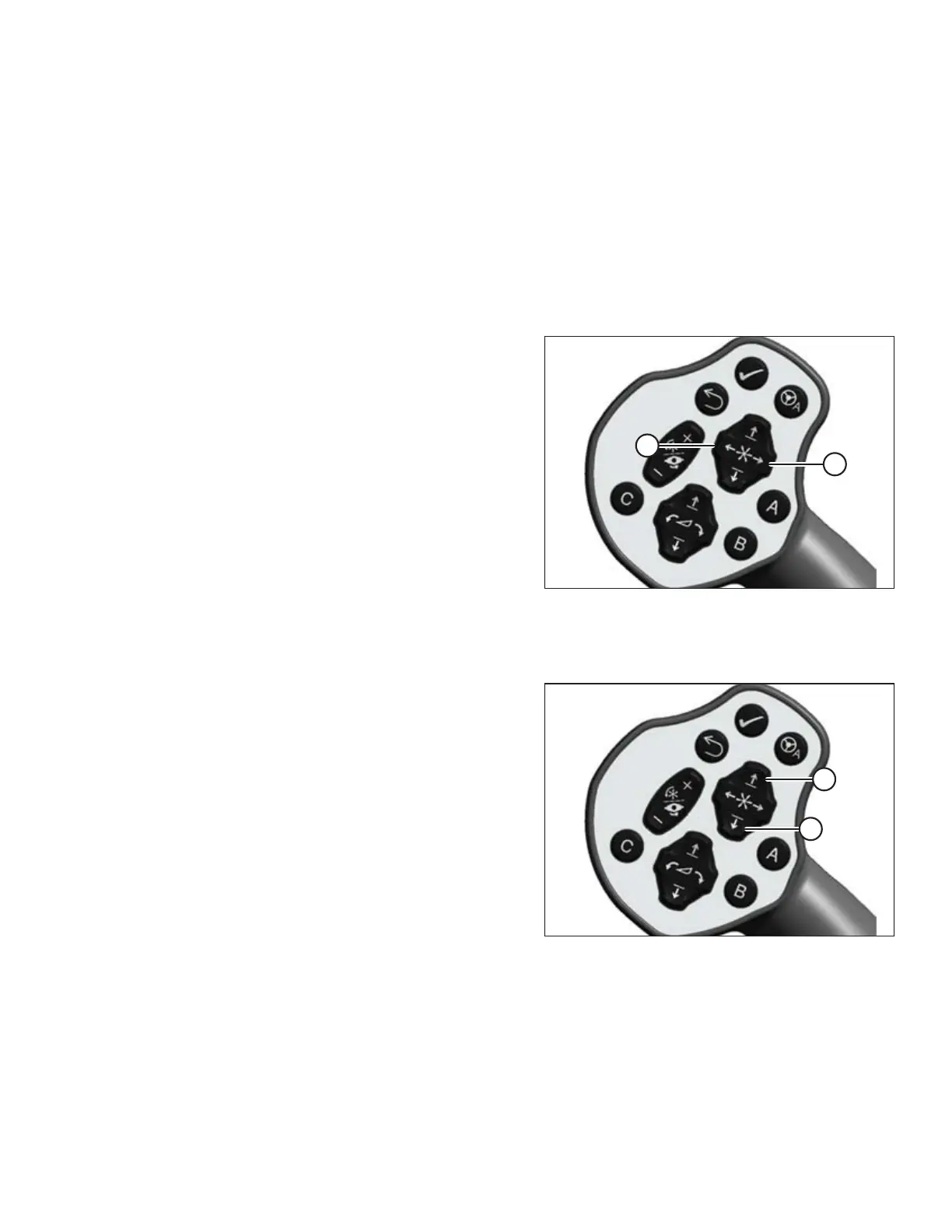

Figure 4.195: Ground Speed Lever (GSL)
The reel fore-aft position is adjusted with the multi-function
switches on the ground speed lever (GSL).
Press and hold the switch for the desired movement;
FORWARD (A) or AFT (B).
4.7.3 Adjusting Reel Height
1019521
B
A
Figure 4.196: Ground Speed Lever (GSL)
Press and hold the switch for the desired movement of the reel;
UP (A) or DOWN (B).
OPERATION
