214733 266 Revision A
Charge Air Cooling

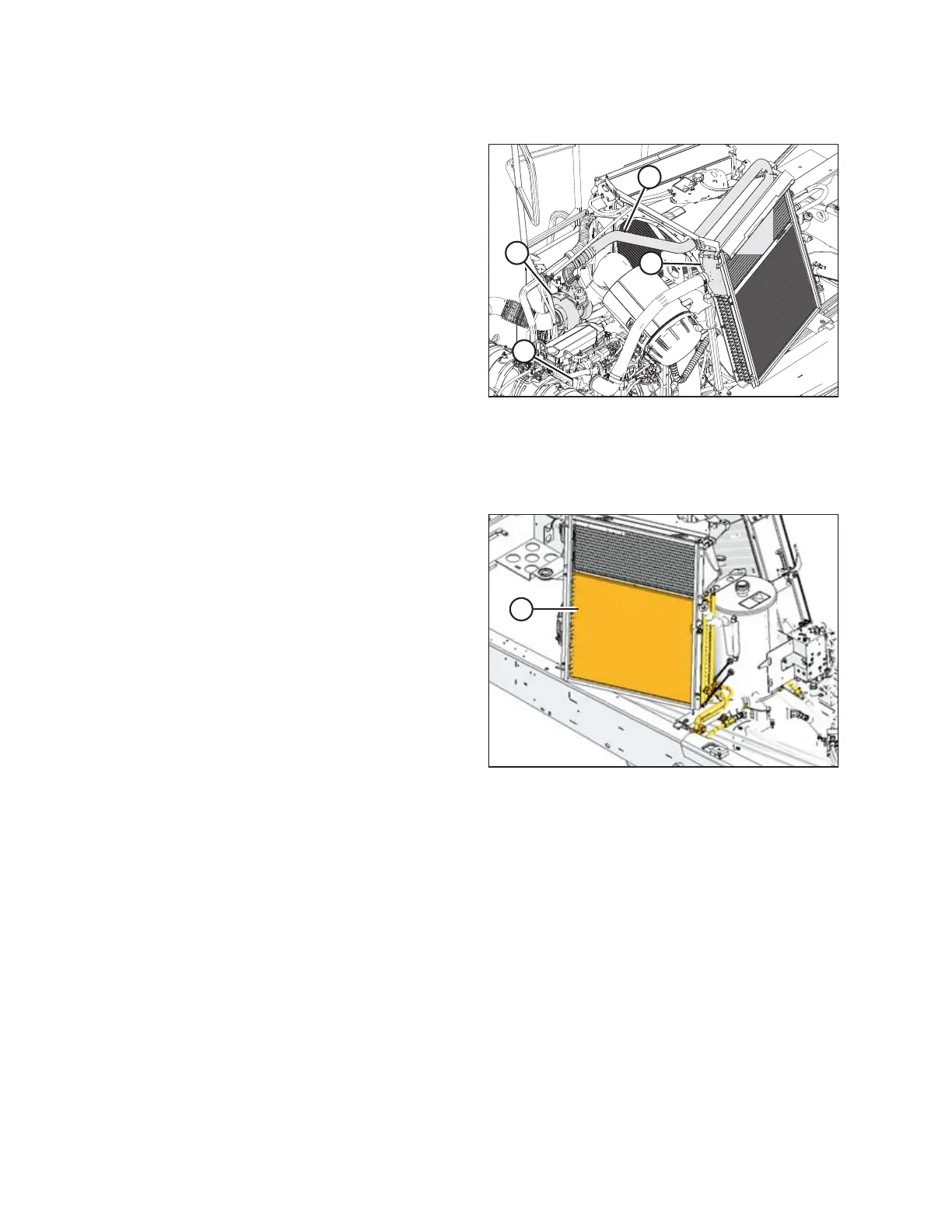

Figure 5.21: Engine Air Intake System
After the intake air passes through the air filter, it passes
through the turbocharger (A) that boosts the air pressure. This
process heats the air so it is passed through pipe (B) to a
cooler (C) before entering the engine intake (D).
The cooler is located in the cooling box behind the cab. The
cooler screens and components should be cleaned with
compressed air every 100 hours of operation. Daily cleaning
may be required if operating in heavy crop conditions. Refer to
5.9.2 Cleaning Cooler Module, page 305.
Hydraulic Oil Cooler
The hydraulic oil cooler is located inside the cooling box behind the radiator.
Figure 5.22: Hydraulic Oil Cooler
Clean cooler (A) with compressed air every 100 hours of
operation. Daily cleaning may be required if operating in heavy
debris conditions. Refer to 5.9.2 Cleaning Cooler Module, page
305.
MAINTENANCE AND SERVICING
