MacDon M1170 - Removing Drive Wheels

214733 388 Revision A
1015788
A

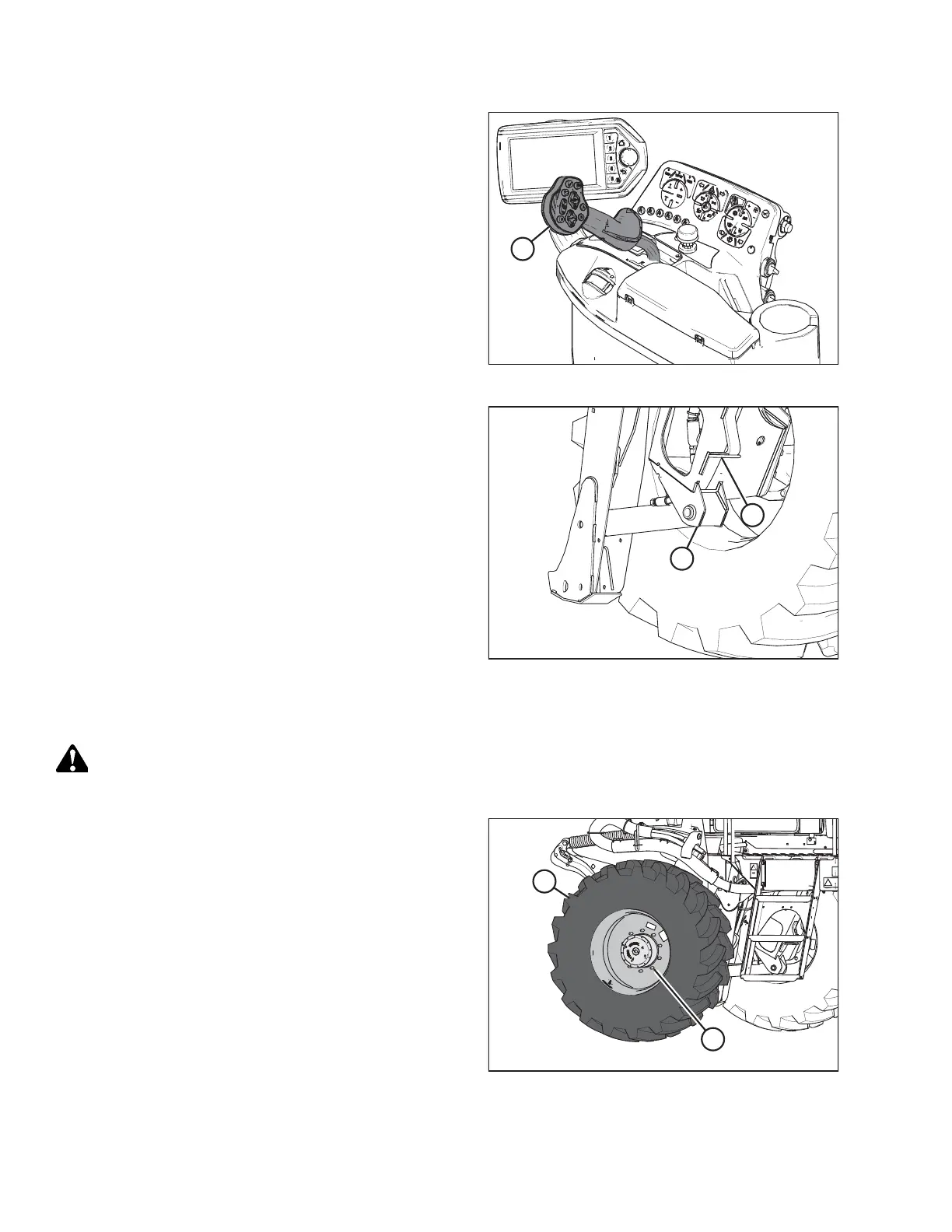

Figure 5.209: Ground Speed Lever
3. Place the ground speed lever (GSL) (A) in PARK.
4. Stop the engine and remove the key.
1000542
A
B
Figure 5.210: Drive Wheel Jack Point
5. Place a jack under the leg jack point (A). Raise the drive
wheel until it is slightly off the ground.
6. Place a jack stand beneath the lift cylinder mount (B).
NOTE:
Do NOT place jack stand under the cylinder. Use a small
metal plate on top of the jack stand.
7. Lower the windrower onto the jack stand.
Removing Drive Wheels
CAUTION
Use a suitable lifting device capable of supporting a minimum of 907 kg (2000 lb.) to lift the wheel assembly away from
the windrower.
1008818
A
B
Figure 5.211: Drive Wheel Assembly
1. Raise the windrower drive wheel (A) off the ground. Refer
to Raising Drive Wheel, page 387.
2. Remove the wheel nuts (B).
3. Remove the drive wheel (A).
MAINTENANCE AND SERVICING
