Replacing Circuit Breakers and Relays
WARNING
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove the key
from the ignition before leaving the operator’s seat for any reason.
1. Stop the engine and remove the key.
2. Open fuse box cover. Refer to 5.15.7 Accessing Circuit Breakers and Fuses, page 378.

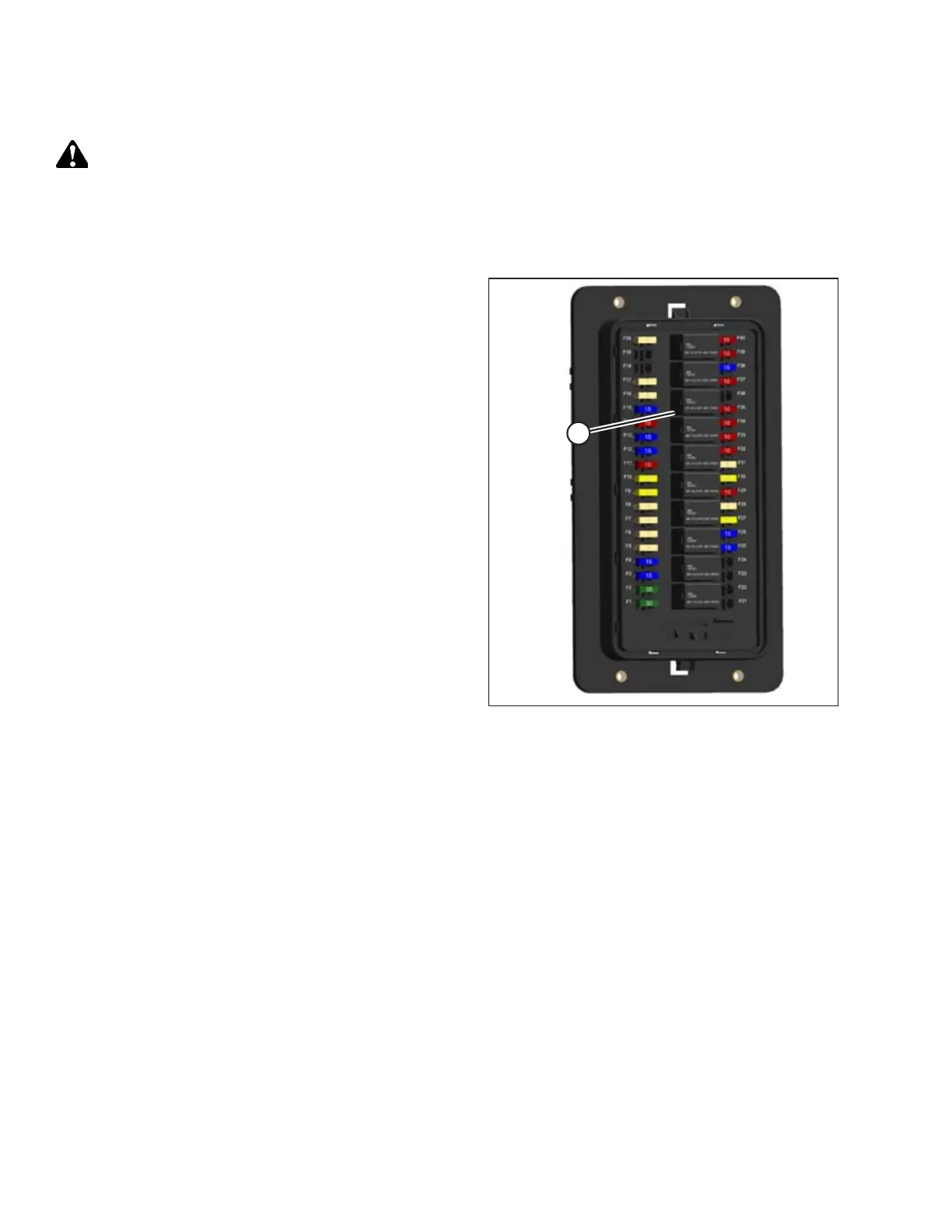

Figure 5.199: Fuse Box (Cover Removed)
3. To replace relay (A), pull relay out of receptacle and install
new relay.
4. Reinstall cover.
