MacDon M1170 - Setting Draper Speed in Manual Mode

214733 212 Revision A
Setting Draper Speed in Manual Mode
1019554
A

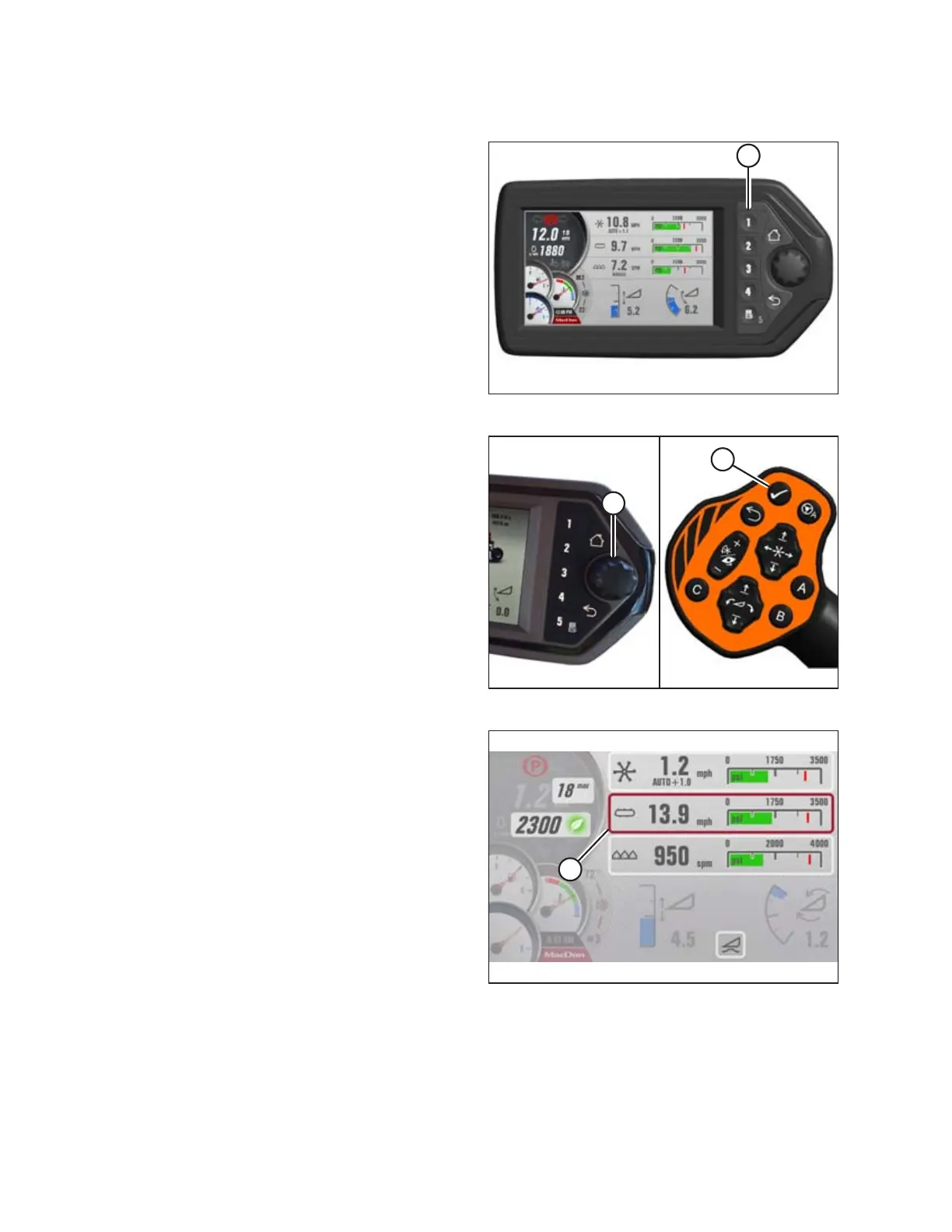

Figure 4.222: Header Run Screen 1
1. If RUN SCREEN 1 is not already displayed, press soft key
1 (A) on the Harvest Performance Tracker (HPT) to display
draper RUN SCREEN 1.
1019523
A
B
Figure 4.223: HPT Scroll Knob and GSL Select Button
2. Press the scroll knob (A) on the Harvest Performance
Tracker (HPT) or the SELECT button (B) on the ground speed
lever (GSL) to display the QuickMenu page.
1019597
A
Figure 4.224: Draper Header QuickMenu
3. Turn knob to scroll to DRAPER setting (A) on QuickMenu,
and press knob to select it. The next page opens.
