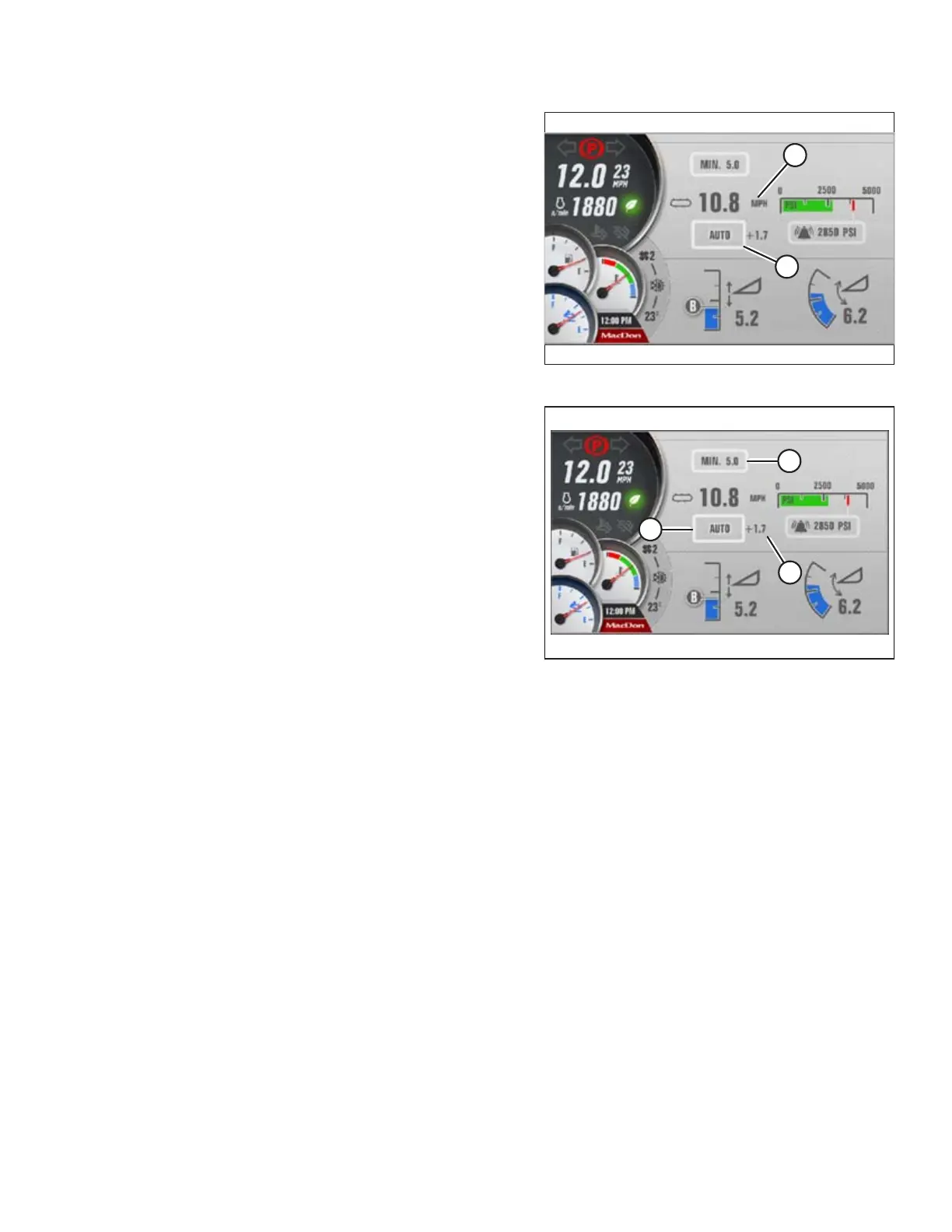

Figure 4.220: Draper Header Draper Page
4. Scroll to mode window (A) and select it.
5. Scroll in pop-up window to AUTO and select it.
NOTE:
In AUTO mode, the speed is displayed in km/h or mph (B).
Figure 4.221: Draper Header Draper Page
6. Scroll to and select the MINIMUM DRAPER SPEED
setting (A) (this setting is grayed out in manual mode).
7. Turn scroll knob to adjust draper minimum speed to
1.6–8 km/h (1–5 mph) with 5 km/h (3.0 mph) as the
default). Press knob to select desired setting.
8. Scroll to INDEX value (C) and select it.
9. Turn scroll knob to set index value. The index range is +/- 8
km/h (5 mph) (zero, i.e. equal to ground speed, is the
default). Press knob to select desired setting.
NOTE:
The draper operates at MINIMUM SPEED when the ground
speed + the reel index value is less than the set minimum
speed. Minimum reel speed is displayed (A) and MIN will
replace the AUTO +1.7 (B).
