214733 209 Revision A

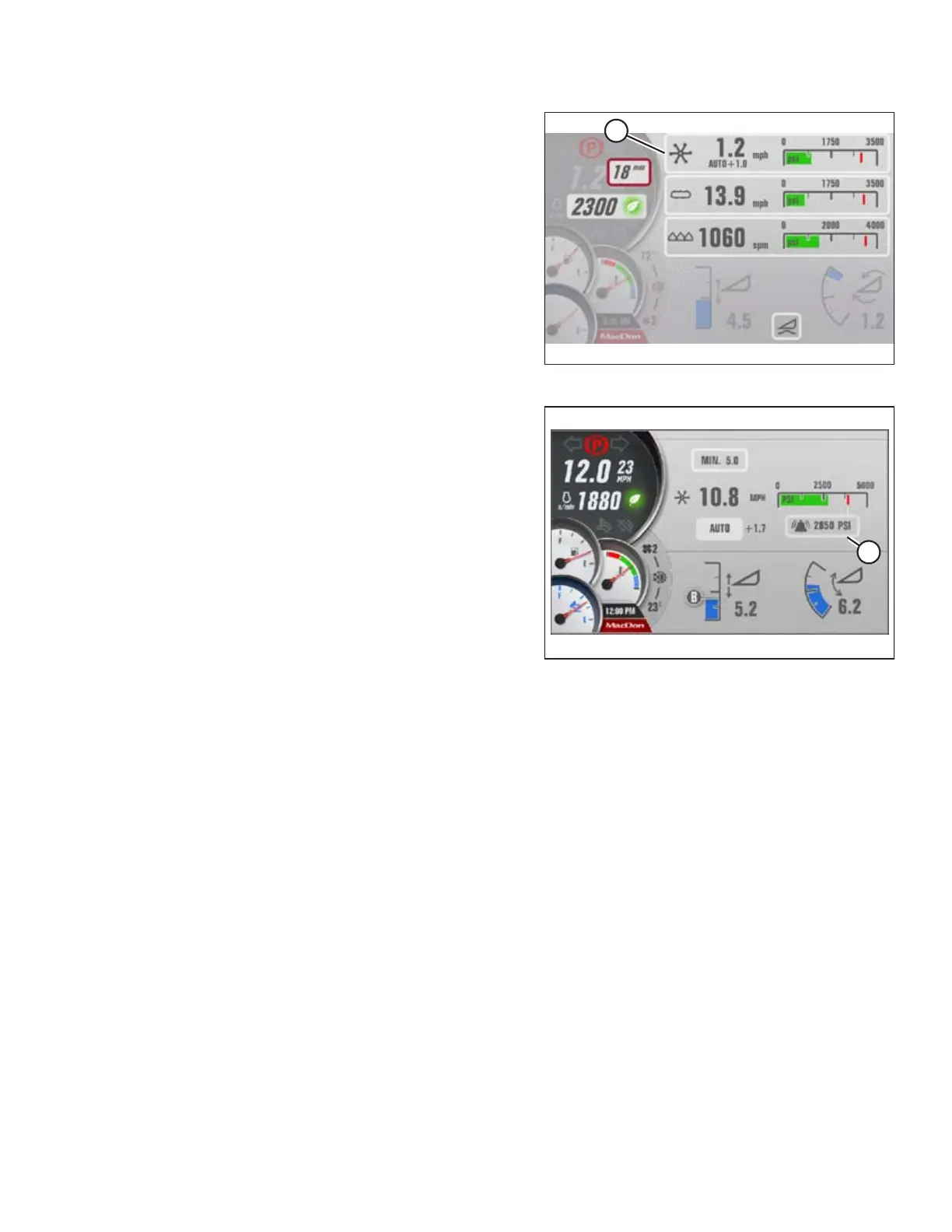

Figure 4.215: Header QuickMenu
3. Turn knob to scroll to REEL setting (A) on QuickMenu, and
press knob to select it. The next page opens.
Figure 4.216: Draper Header Reel Page
4. Turn scroll knob to highlight reel pressure ALARM (A), and
press knob to select it.
5. Turn knob to change the ALARM set-point in window (A).
Scrolling past the highest setting turns the alarm off. When
the alarm point is off, the digital value is replaced with
three dashed lines.
6. Adjust reel alarm pressure set-point to desired value, and
press knob to select it. Factory setting is 19,995 kpa
(2900 psi).
4.7.6 Draper Speed
Draper speed affects the orientation of stalks in the windrow. For information on draper speed guidelines and windrow
types, refer to your header operator’s manual. The draper speed can be set to run independently, or relative to the ground
speed of the windrower with the header index function.
Adjusting Draper Speed
Draper speed is displayed in mph or km/h (depending on the global units selection); the default is rpm, and can be set to
auto or manual mode.
• AUTO mode: Draper speed is maintained relative to ground speed. Refer to Setting Draper Speed in Auto Mode, page
210.
• MANUAL mode: Draper speed is manually set and is maintained independently of ground speed. Refer to Setting
Draper Speed in Manual Mode, page 212.
NOTE:
Both speed modes work with the One-Touch-Return feature. For example, button A on the GSL can be set for
MANUAL mode and button B can be set for AUTO mode. Refer to One-Touch-Return Buttons (A, B, C), page 74.
OPERATION
