MacDon M1170 - Header Drive; Engaging and Disengaging the Header

214733 190 Revision A
4.6.3 Header Drive
All header controls are conveniently located on the operator’s console and on the ground speed lever (GSL) handle.
NOTE:
Some controls are optional equipment and may not be present in your unit. Some controls may be installed, but will be
nonfunctional for certain headers.
Engaging and Disengaging the Header
The HEADER ENGAGE switch engages and disengages the header drive.
CAUTION
Check to be sure all bystanders have cleared the area.
10127561012756
A
B

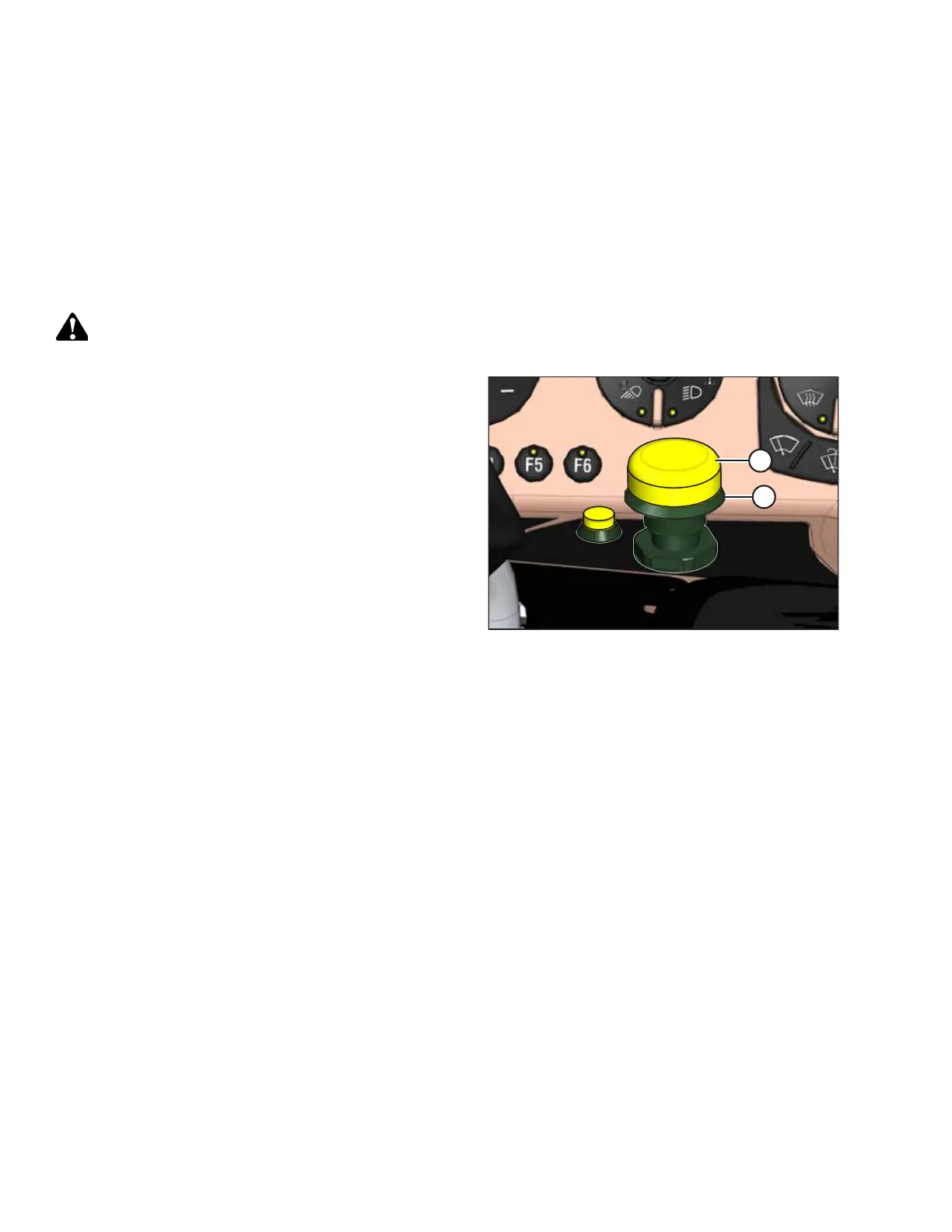

Figure 4.174: Header Engage Switch
To engage header: Push and hold HEADER ENGAGE switch (A)
down, while pulling up on the collar (B).
To disengage header: Push HEADER ENGAGE switch (A) down.
