MacDon M1170 - Replacing Headlight Bulb (Engine-Forward)

214733 370 Revision A
Replacing Headlight Bulb (Engine-Forward)
WARNING
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove the key
from the ignition before leaving the operator’s seat for any reason.
1. Turn off the windrower’s engine and remove the key from the ignition.
1015802
AA
AA
AAAA
AA
B
C
C

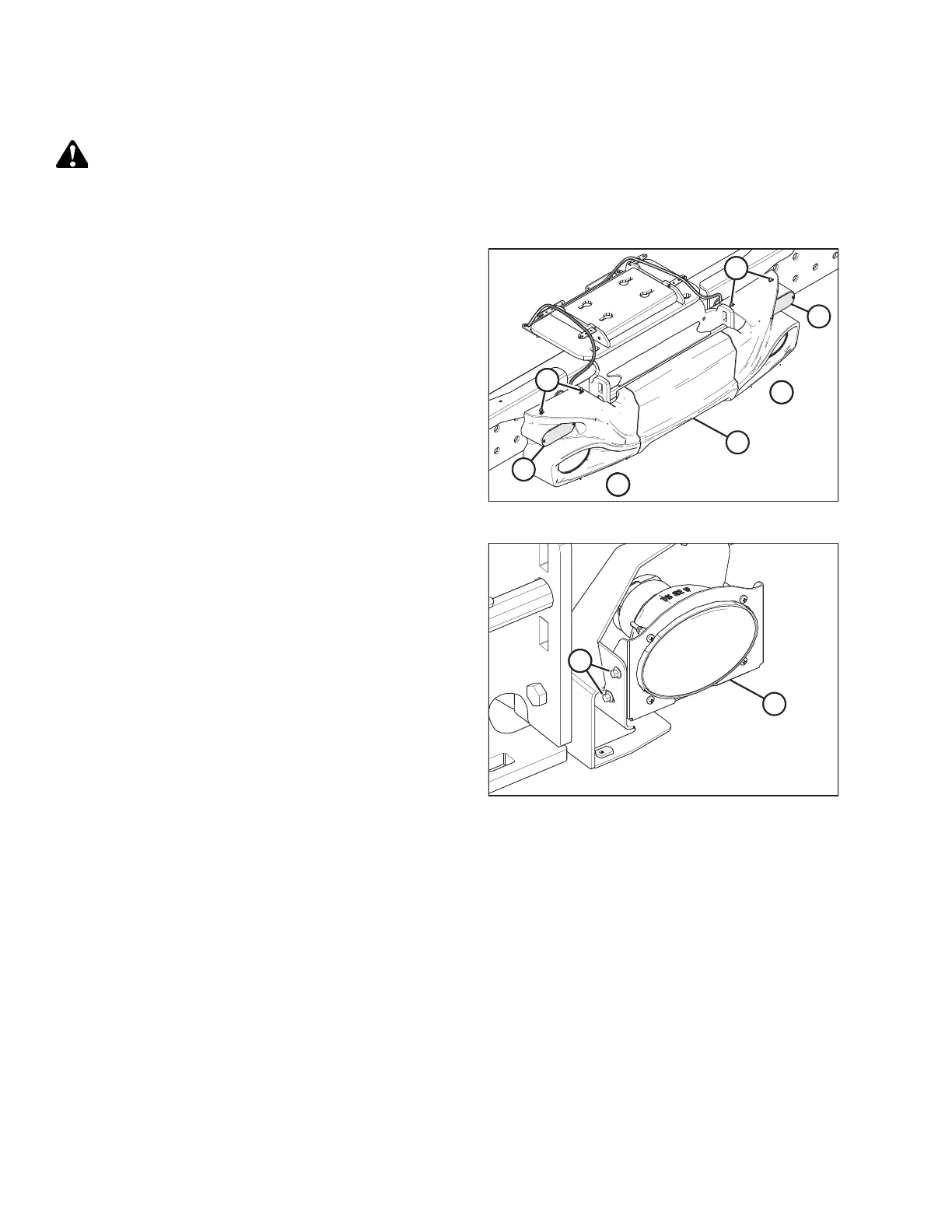

Figure 5.178: Headlight Bezel Assembly
2. Remove eight hex flange bolts (A) then remove headlight
bezel assembly (B). Retain hardware.
3. Remove electrical connectors from red tail lights (C) to fully
remove bezel (B).
1015804
AA
B
Figure 5.179: Right Side Headlight Shown – Left Side
Similar
4. Remove the two bolts (A) holding the headlight bracket (B)
in place and slide bracket forward.
5. Pull wiring harness connector off the headlight and remove
assembly (A).
