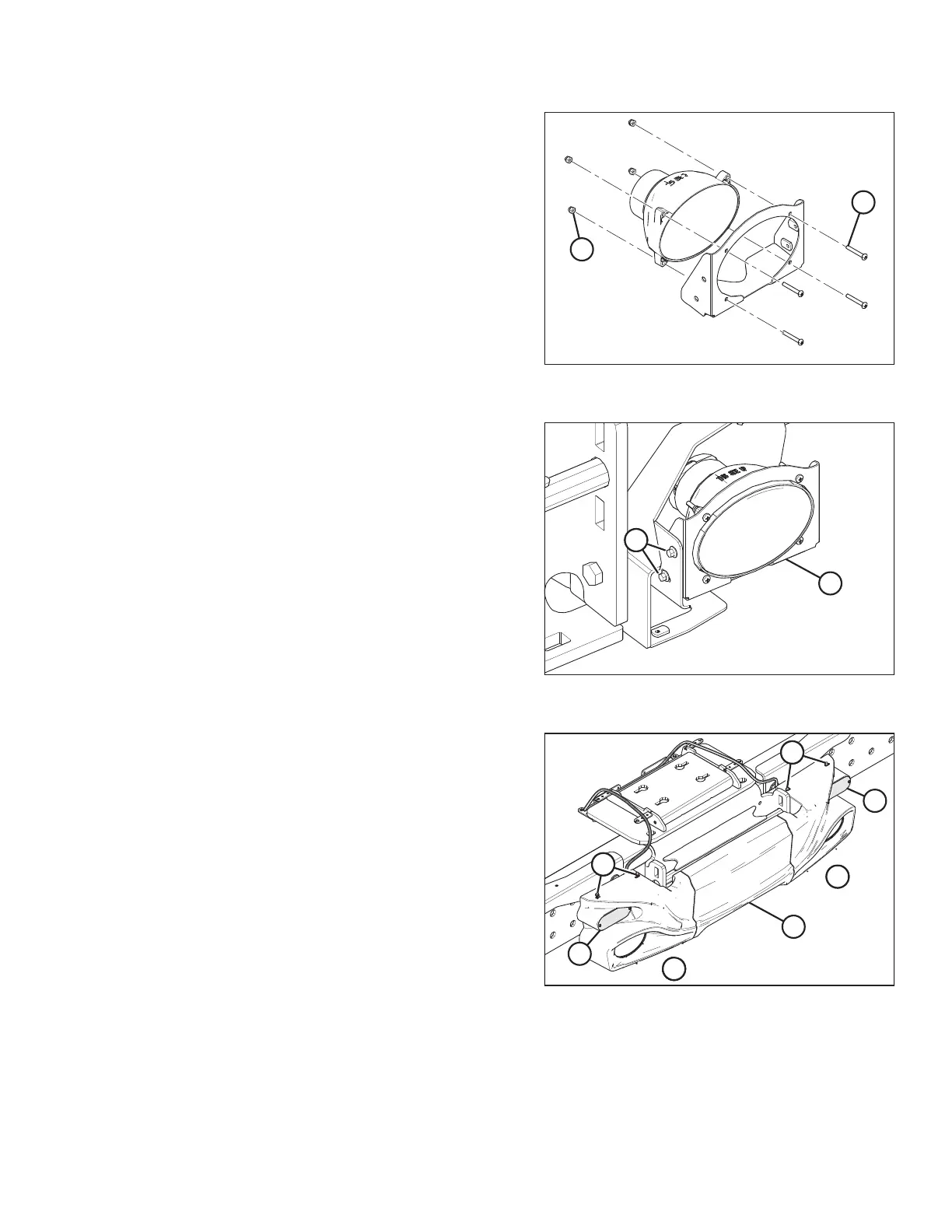

Figure 5.180: Right Side Headlight Shown – Left Side
Similar
6. Remove four machine screws (A) and nylon nuts (B) and
retain hardware.
7. Remove old headlight from bracket and replace with new
headlight.
IMPORTANT:
Do NOT touch the glass of the halogen bulb as oils or other
chemicals from your skin will cause the bulb to fail
prematurely.
8. Attach headlight to bracket using four retained machine
screws (A) and nylon nuts (B). Torque screws to 2.0–2.7 Nm
(18–24 lbf·in).
1015804
AA
B
Figure 5.181: Right Side Headlight Shown – Left Side
Similar
9. Connect wiring harness connector to headlight.
10. Attach headlight bracket assembly (B) using retained
bolts (A).
11. Align new headlight. Refer to Aligning Headlights: Engine-
Forward, page 364.
1015802
AA
AA
AAAA
AA
B
C
C
Figure 5.182: Headlight Bezel Assembly
12. Attach electrical connectors to red tail lights (C).
13. Attach headlight bezel assembly (B) to frame using the
eight retained hex flange bolts (A). Torque bolts to
2.0–2.7 Nm (18–24 lbf·in).
