5.10.2 Maintaining Engine Air Filters
Removing Engine Primary Air Filter
1. Stand on right service platform.
2. Open the hood. Refer to 5.3.1 Opening Hood, page 256.

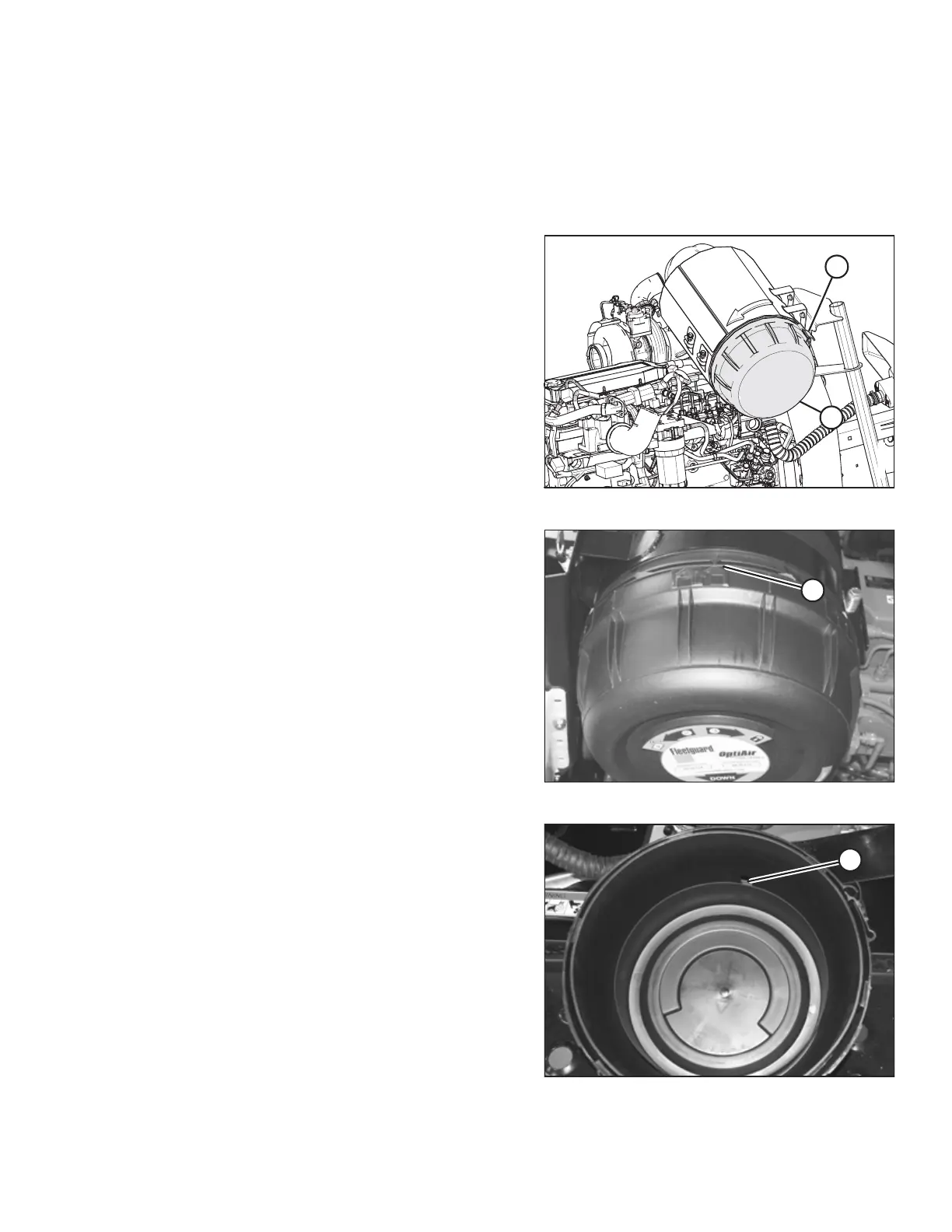

Figure 5.89: Air Filter Housing
3. Slightly lift catch (A) at side of end cap (B). Rotate end cap
counterclockwise until it stops.
Figure 5.90: Air Filter
4. Make sure arrow (A) lines up with the UNLOCK symbol on
end cap.
5. Pull off the end cap.
Figure 5.91: Air Filter
6. Check the aspirator duct opening (A) for obstructions or
damage. Clean if necessary.
7. Place cover on platform.
NOTE:
Hoses can be left connected to the cover.
