2.3 Windrower Dimensions

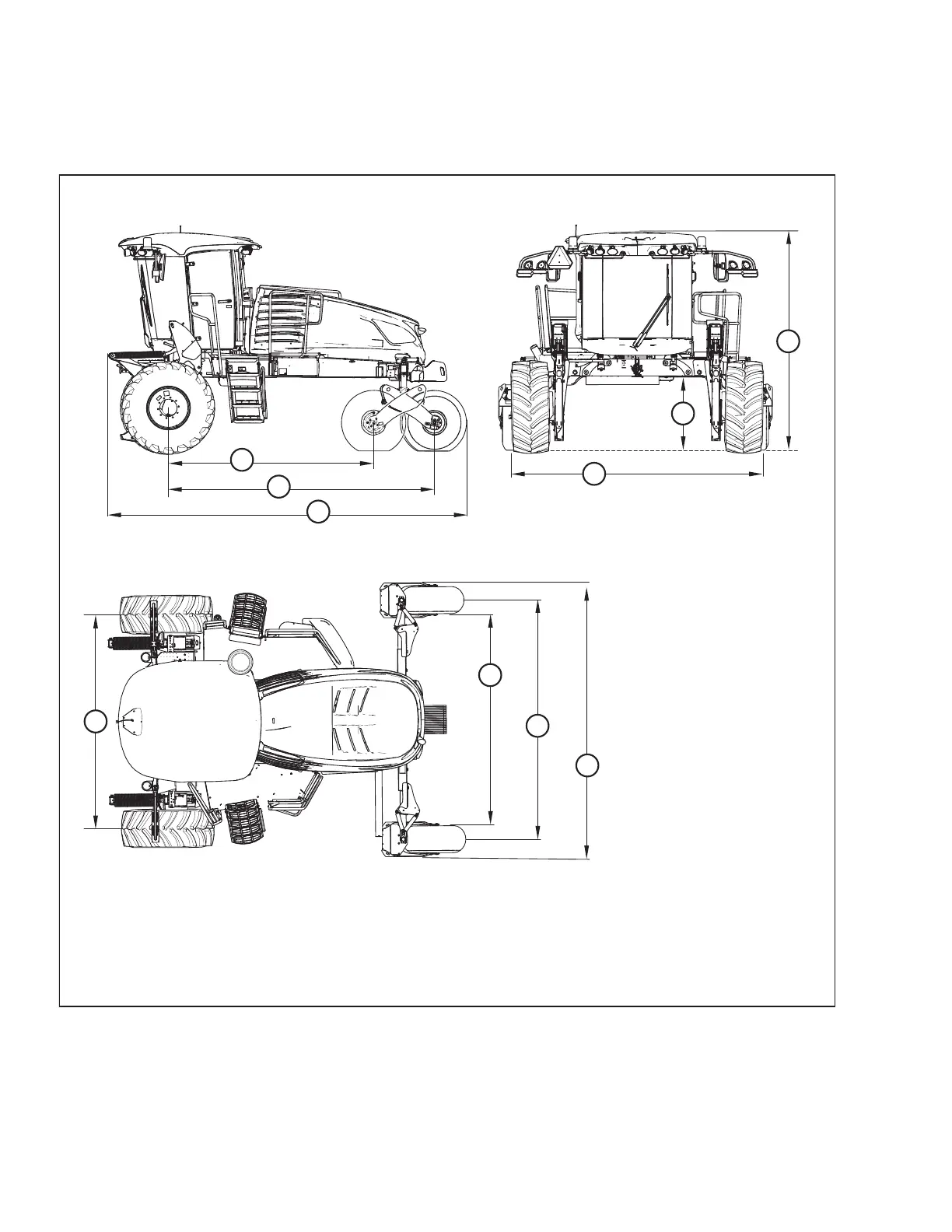

Figure 2.2: Windrower Dimensions
G
H
K
J
D
E
F
A
B
C
1016012
A - 3304 mm (130-3/32 in.) B - 4290 mm (168-7/8 in.) C - 5752 mm (226-7/16 in.)
D - 4070 mm (160-1/4 in.) E - 1160 mm (45-11/16 in.) F - 3480 mm (137-1/32 in.)
G - 3449 mm (135-13/16 in.) H - 3422 mm (134-3/4 in.) J - 3856 mm (151-13/16 in.) (Max)
K - 4415 mm (173-13/16 in.)
