MacDon M1170 - Auxiliary Lift Switches; Conveyor Speed Adjustment Buttons

214733 77 Revision A
Conveyor Speed Adjustment Buttons
1014968
A
B

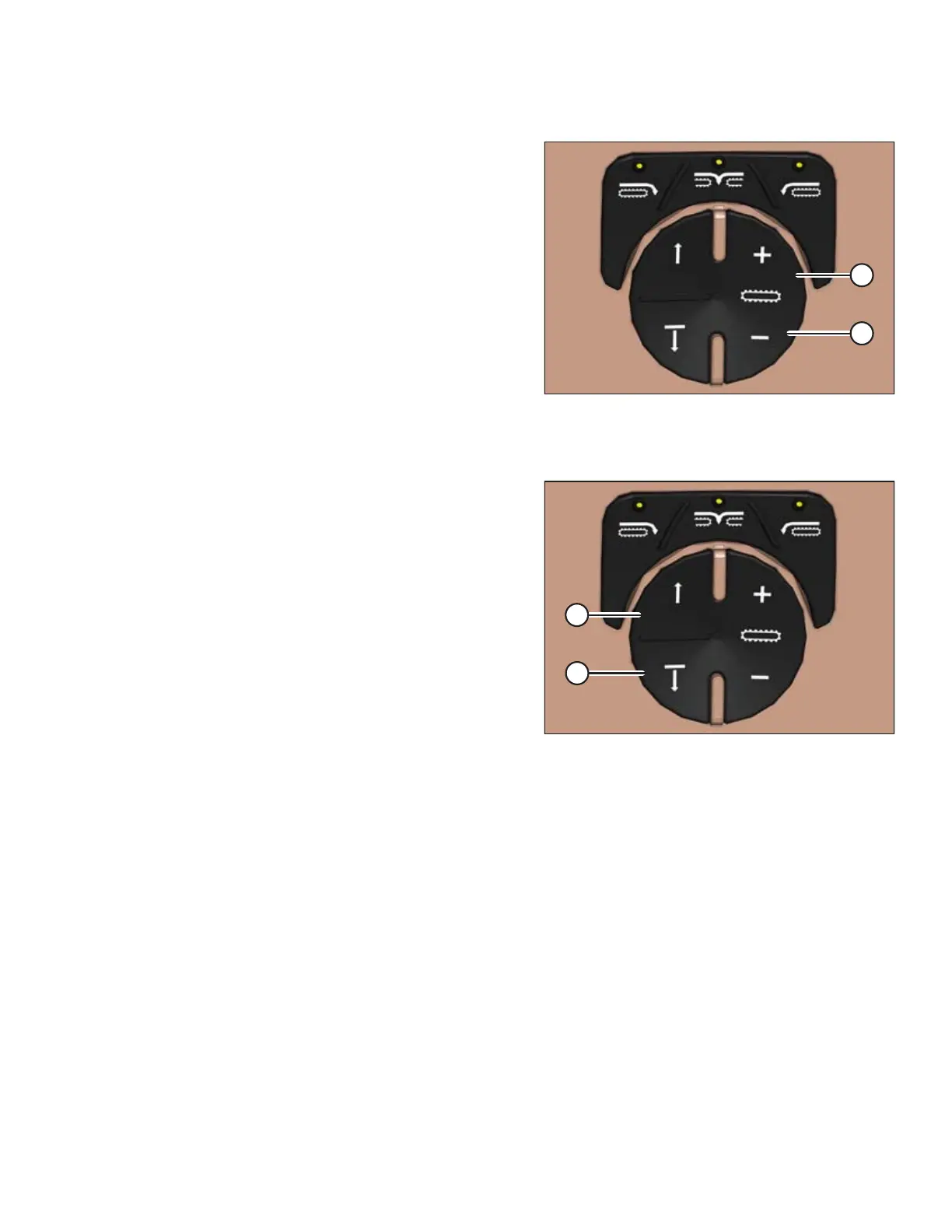

Figure 3.67: Operator’s Console Conveyor Controls
Adjust header or double windrow attachment (DWA) conveyor
speed by pressing switch (A) to increase the speed, or switch (B)
to decrease the speed.
Conveyor speed can be adjusted in either manual or auto
modes. Refer to Adjusting Draper Speed, page 209 for more
information.
Auxiliary Lift Switches
1016066
A
B
Figure 3.68: Operator’s Console Auxiliary Controls
With double windrow attachment (DWA):
• Raise the DWA deck by pressing button (A), or lower the
deck by pressing button (B).
With swath compressor or swath roller attachment:
• Raise the swath compressor by pressing button (A), or lower
it by pressing button (B).
